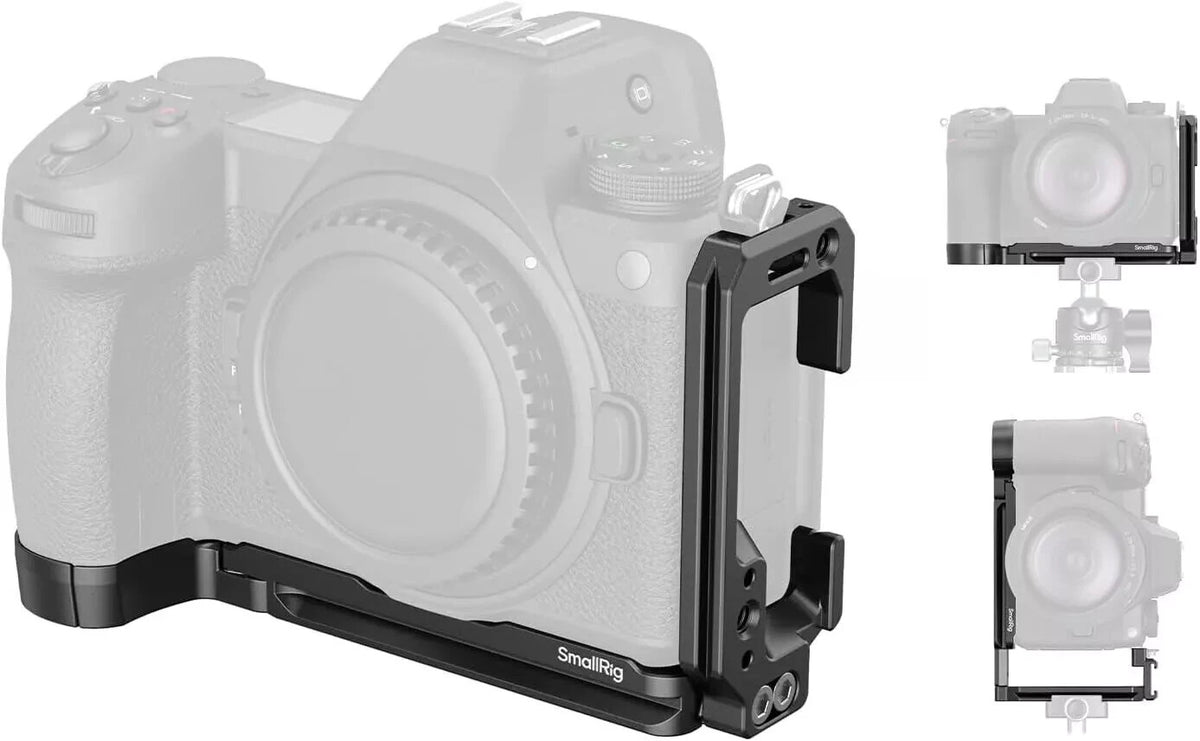

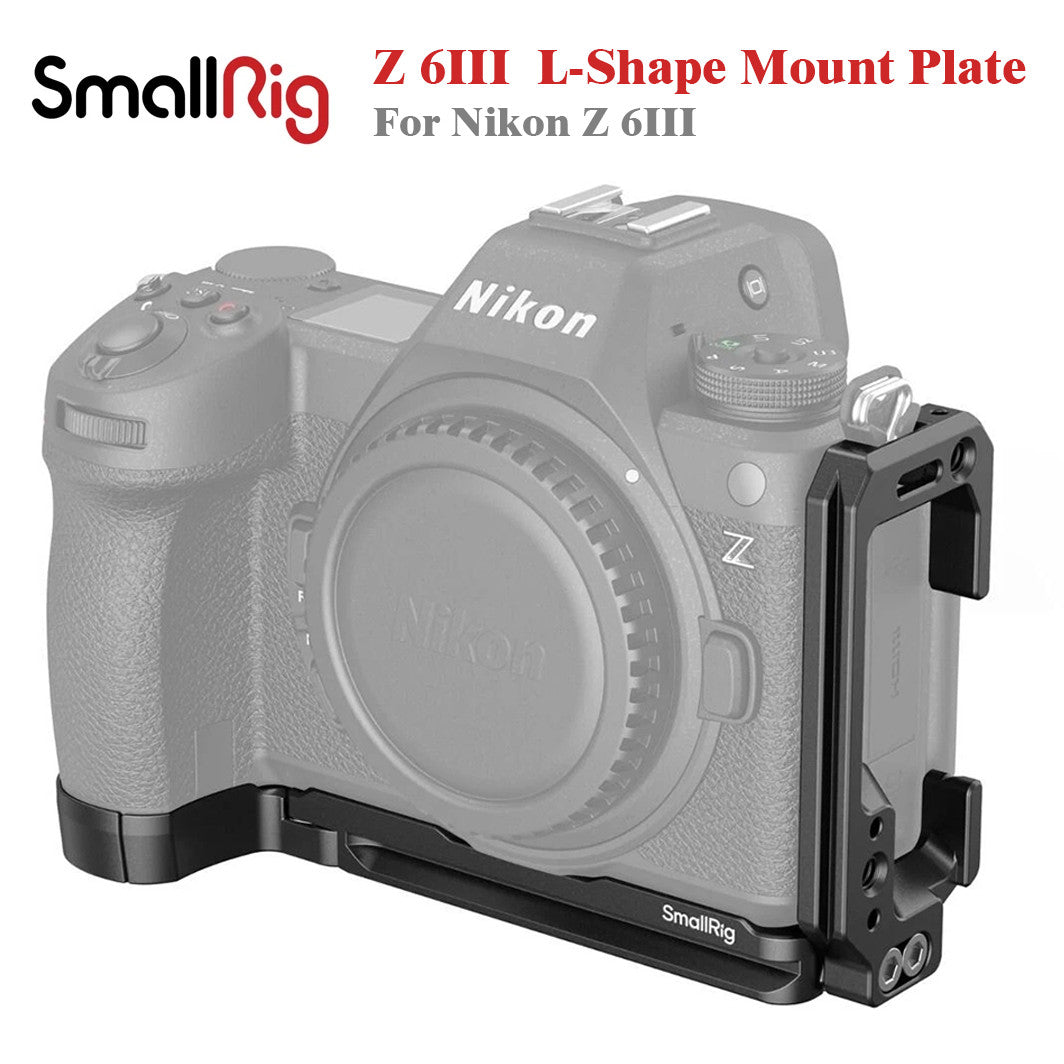

SmallRig L-Shape Mount Plate for Nikon Z 6III 4523 – Dual Arca-Swiss & Multi-Accessory Support

Compatible Product

• Nikon Z 6III

• Related Products: 4353, 4060, 3989, 3751, 3487, 3286B, 3848, 2456, 4118, 3875, 2093, 3847.

Package Contents

• 1 × L-Shape Mount Plate

• 1 × Locating Block

Product Overview

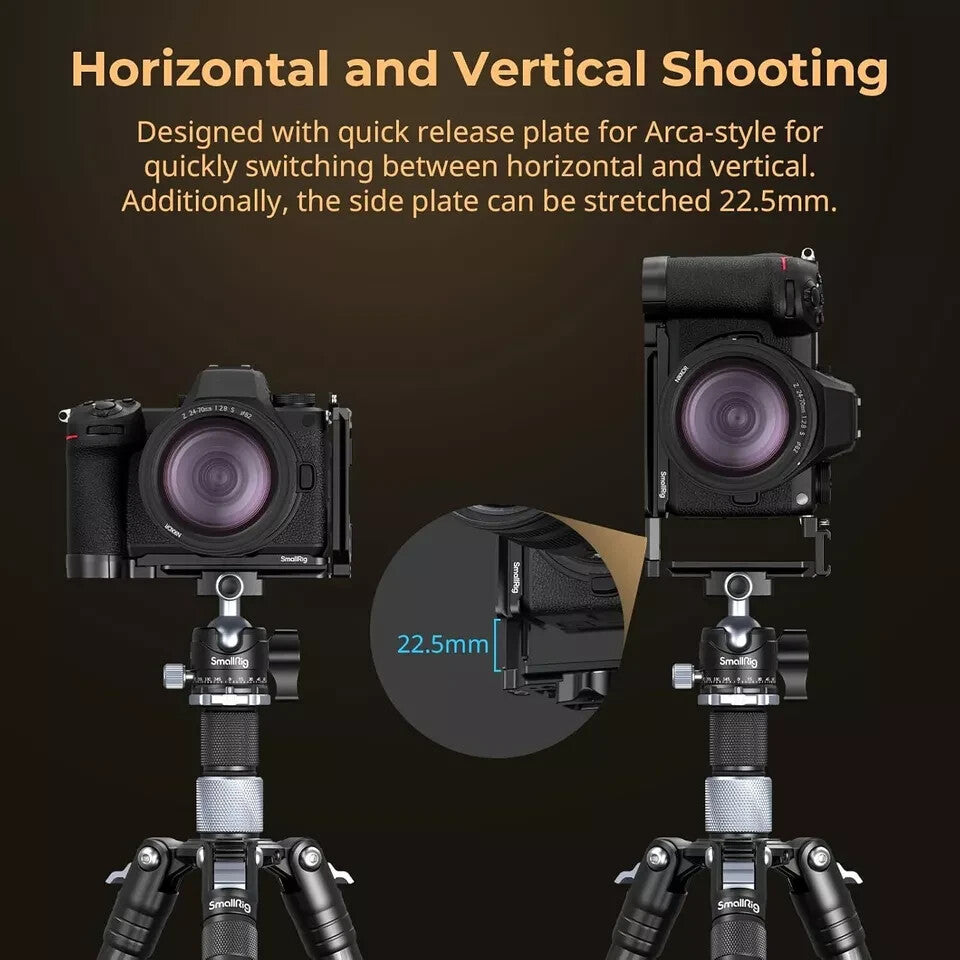

The SmallRig L-Shape Mount Plate for Nikon Z 6III 4523 is purpose-built to enable fast switching between landscape and portrait orientations while improving camera handling and accessory flexibility. Its dual Arca-Swiss quick release plates (base and side) let you reconfigure your setup instantly without removing the camera from your support system.

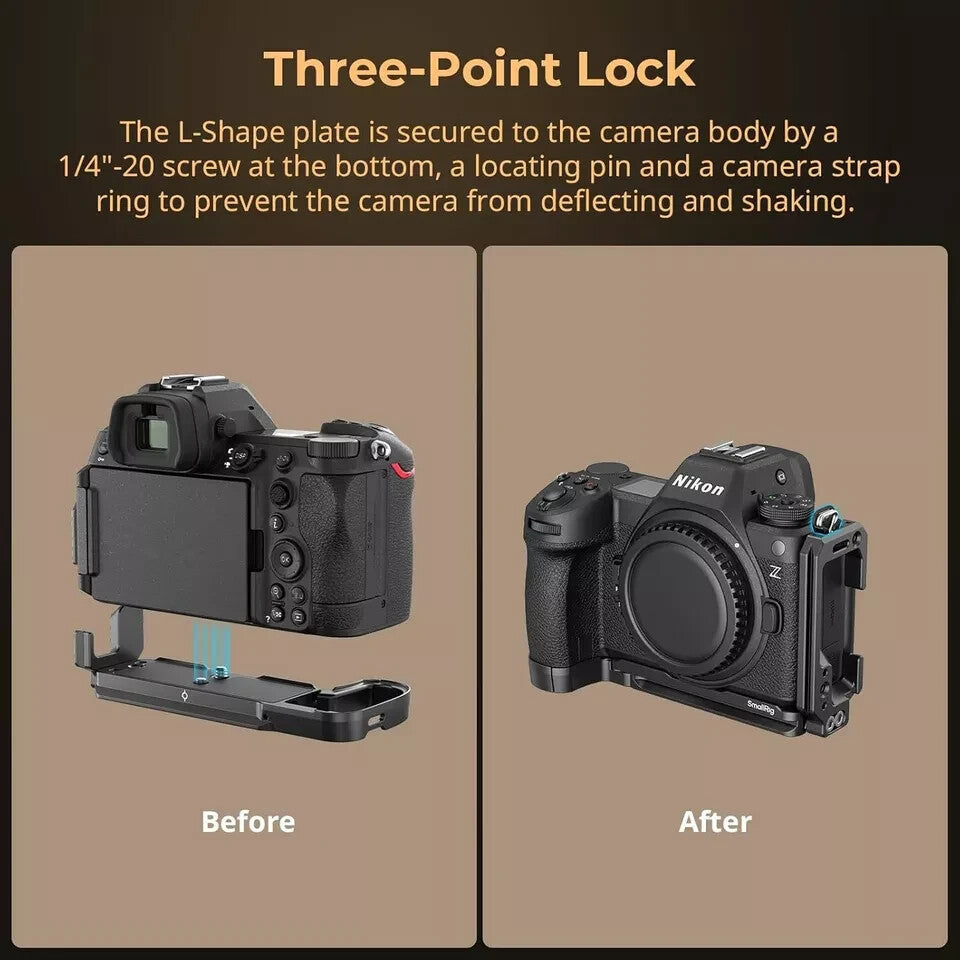

Stability is guaranteed by a three-point locking system: a 1/4"-20 screw at the base, a locating block, and the camera’s left shoulder strap ring. This combination eliminates twisting and ensures rock-solid security, especially critical in vertical shooting. Integrated silicone pads protect the camera body from scratches.

The locating block with built-in cold shoe provides secondary support to keep the cage stable and prevent side plate deformation when extended. This design allows secure mounting of accessories like microphones, LED lights, and transmitters directly onto the plate.

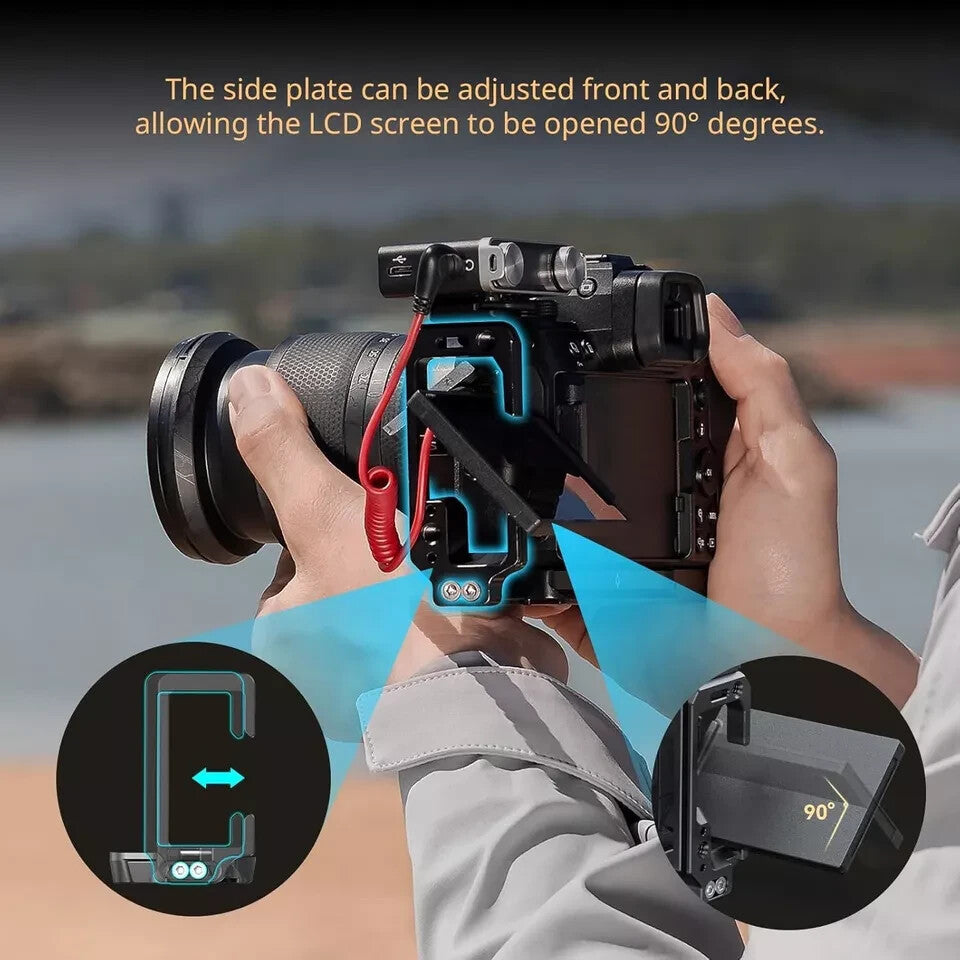

The side plate extends by 22.5 mm (0.9 in), creating ample room for HDMI/USB cable routing in portrait orientation, reducing strain on connectors.

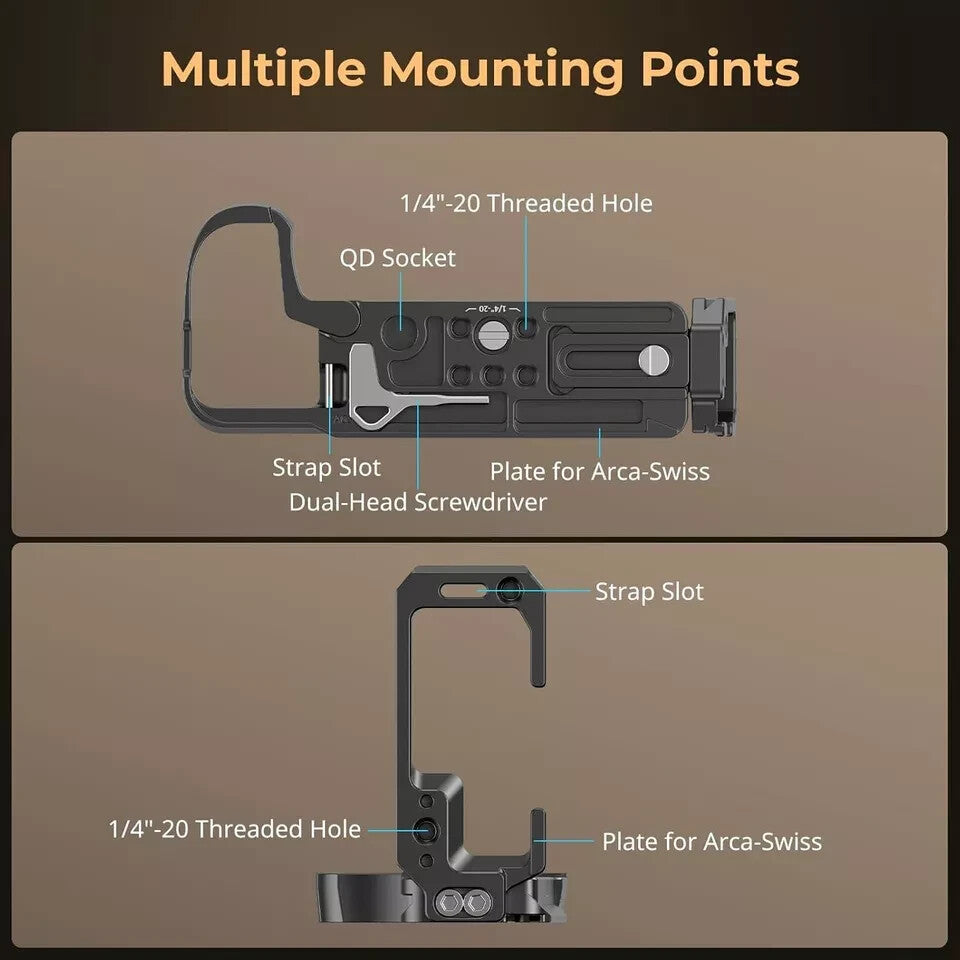

The base integrates an Arca-Swiss quick release plate, making it compatible with Arca tripods and DJI gimbals for quick setup changes. Additional 1/4"-20 and 3/8"-16 threaded holes on the bottom allow attachment of side handles for comfortable handheld vertical shooting, as well as tripod mounts. A strap hole enables use of wrist or shoulder straps, while a built-in QD interface supports QD shoulder straps for rapid carry options.

On the side panel, a 1/4"-20 locating hole accepts magic arms for monitors or lights. The hinge arm at the battery compartment follows the camera’s contour, enhancing grip comfort and preventing interference with battery changes. A magnetic flat wrench built into the bottom simplifies assembly and disassembly on location. Designed by Yetta White, this aluminum alloy plate delivers lightweight durability and versatile rigging for professional photo and video work.

Key Features

1. Dual Arca-Swiss Design – Quick release plates on base and side for instant landscape ↔ portrait transitions on tripods/gimbals.

1. Three-Point Locking System – Base 1/4"-20 screw + locating block + left shoulder strap ring prevent twisting and enhance stability.

1. Locating Block with Cold Shoe – Secondary support avoids side plate deformation during vertical shooting.

1. Extendable Side Plate – Slides out 22.5 mm (0.9 in) for easy cable routing in portrait mode.

1. Arca-Swiss Base Plate – Works with Arca tripods (ID 4353, 4060) and DJI RS series gimbals.

1. Multiple Threaded Holes – 1/4"-20 & 3/8"-16 holes for side handles (ID 2093, 3847) and tripods (ID 3989, 3751).

1. Strap & QD Mounts – Wrist/shoulder strap holes (ID 3848, 2456) plus QD interface (ID 4118) for carrying solutions.

1. Magic Arm Ready – Side 1/4"-20 locating hole for magic arms (ID 3875).

1. Ergonomic Battery Compartment Hinge – Follows camera curve for improved grip and battery access.

1. Magnetic Flat Wrench – Built into base for tool-free installation.

️ Technical Specifications

• Product Dimensions: 147.4 × 64.7 × 90.0 mm / 5.8 × 2.5 × 3.5 in

• Package Dimensions: 161.0 × 123.0 × 71.5 mm / 6.3 × 4.8 × 2.8 in

• Product Weight: 132 ± 5.0 g / 4.5 ± 0.1 oz

• Package Weight: 227.0 ± 5.0 g / 7.8 ± 0.2 oz

• Material: Aluminum Alloy

• Mounting Screws: 1/4"-20 (base), additional 1/4"-20 & 3/8"-16 (bottom)

• Side Plate Extension: 22.5 mm / 0.9 in

• Designer: Yetta White

• Related Products: 4353, 4060, 3989, 3751, 3487, 3286B, 3848, 2456, 4118, 3875, 2093, 3847

Usage Tips

• Engage All Lock Points – Use base screw, locating block, and strap ring for maximum rigidity.

• Extend Side Plate for Cables – Pull out 22.5 mm before connecting HDMI/USB in portrait mode.

• Mount Accessories on Cold Shoe – Ideal position for mic or light without extra bracket.

• Use Magnetic Wrench – Keep it attached to base for quick adjustments on set.

• Attach Side Handle for Vertical Handheld – Utilize 1/4"-20 or 3/8"-16 holes for comfortable grip.

• Check Strap Hole Alignment – Ensure QD or wrist strap does not interfere with battery door.

️ Important Notes

• Camera Specific – Only compatible with Nikon Z 6III; not for other Nikon Z models.

• Avoid Overloading Cold Shoe – Respect weight limits for accessories.

• Proper Strap Ring Engagement – Left shoulder strap ring must be fully engaged in locking system.

• Roll Pin Not Included – This model uses strap ring instead of roll pin for third lock point.

• Periodic Inspection – Check screws and locks before intensive shoots or transport.
