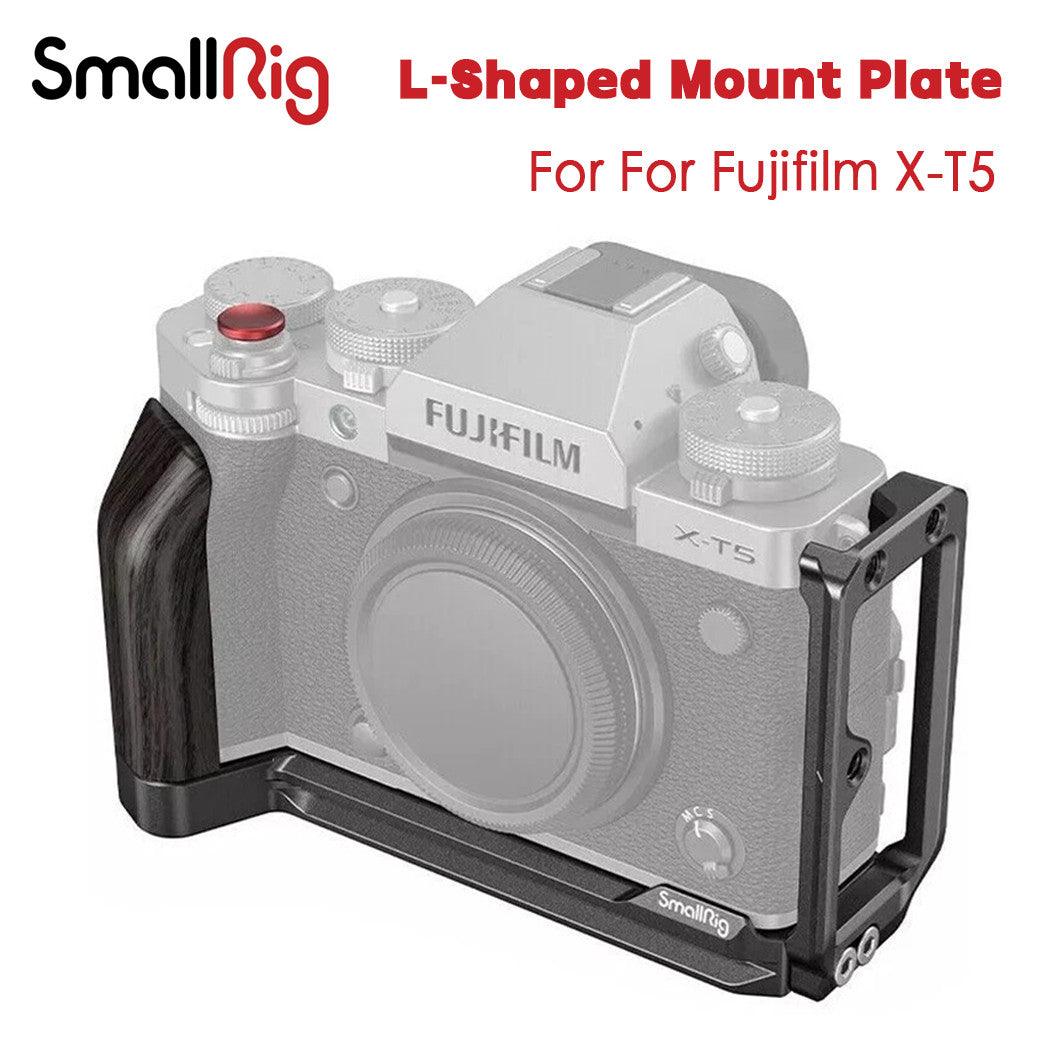

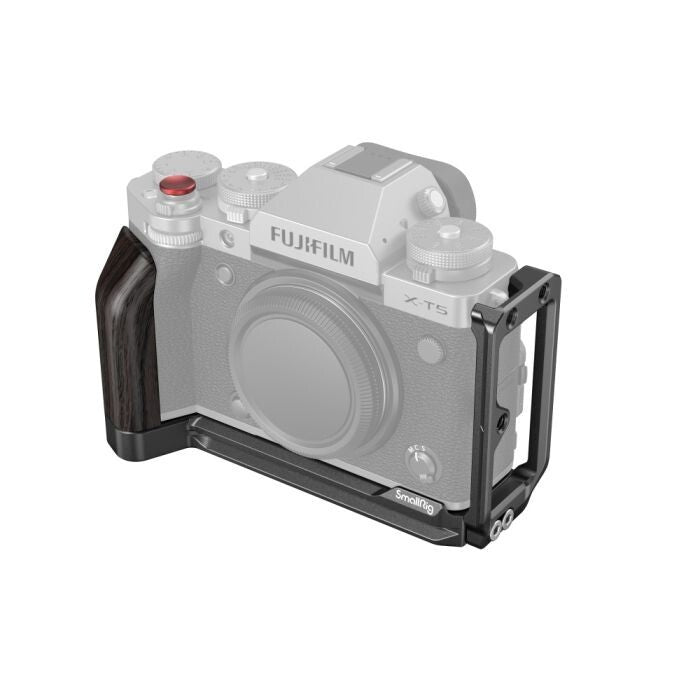

SmallRig L-Bracket for FUJIFILM X-T5 (Model 4137)

Arca-Swiss, Ebony Wood Grip, Extendable Side Plate

Compatible Products

• FUJIFILM X-T5 (Exclusively)

Note: This L-bracket is precision-molded for the X-T5 body. Not compatible with X-T4, X-T3, or other Fujifilm models.

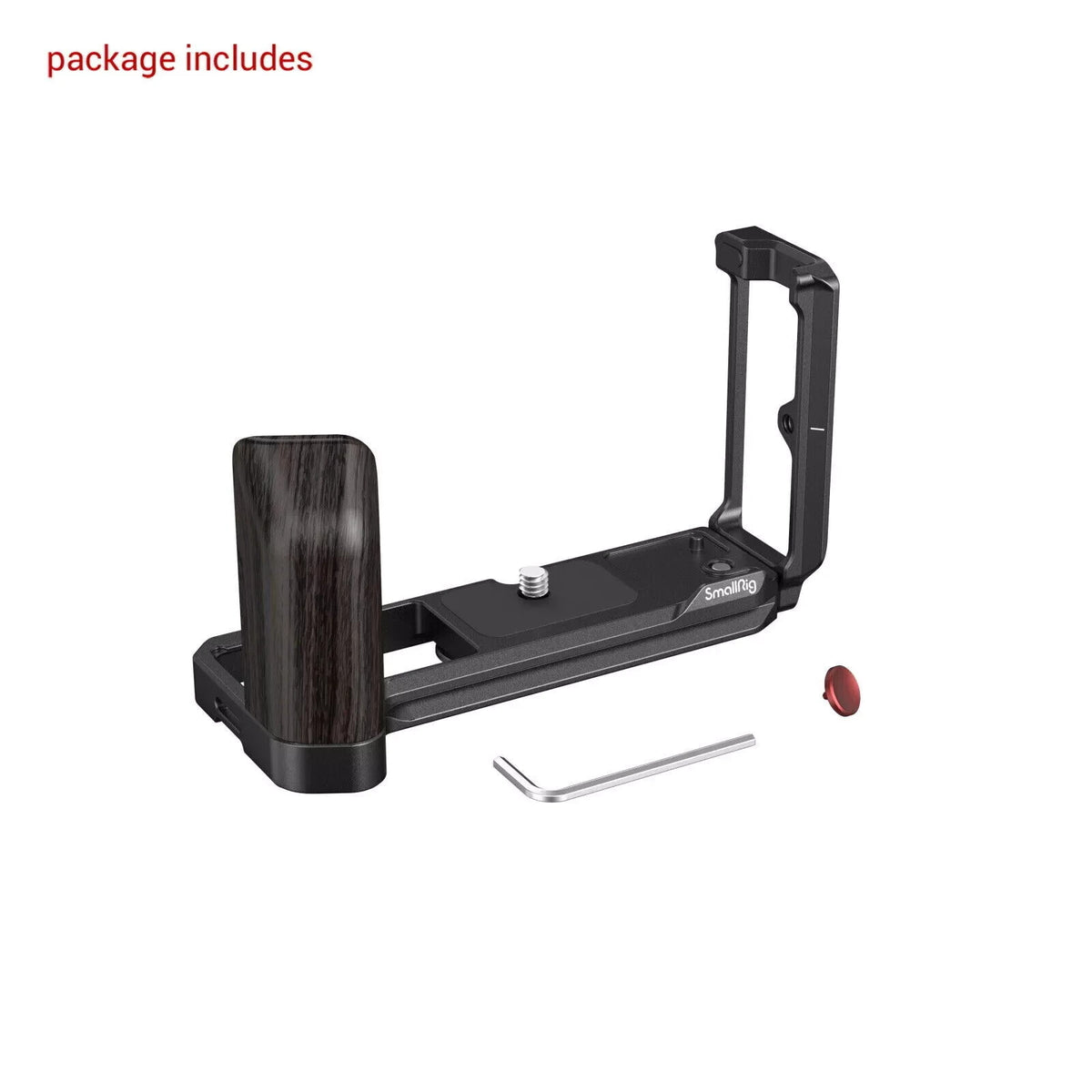

In The Box

• 1 × SmallRig L-Bracket

• 1 × Allen Wrench

• 1 × Complimentary Shutter Button

Product Overview

The SmallRig 4137 L-Bracket is a premium accessory designed to enhance the handling and workflow of the Fujifilm X-T5.

Combining rugged aluminum alloy construction with an ergonomic ebony wood grip, it provides superior comfort and stability. It allows instant switching between horizontal and vertical orientations while maintaining full access to battery compartments, card slots, and ports. The extendable side plate ensures cable clearance during vertical shooting, making it indispensable for professional photographers and videographers.

Key Features

Ergonomic Ebony Wood Grip

• Natural blackwood provides a warm, tactile feel and improved control.

• Enhances comfort during prolonged handheld shooting.

Dual Arca-Swiss Plates

• Both base and side plates feature Arca-Swiss dovetails.

• Enables instant switching between landscape and portrait modes on any Arca-type tripod.

Gimbal & Stabilizer Ready

• The bottom plate is compatible with DJI RS 2, RSC 2, RS 3, and RS 3 Pro gimbals.

• No need to remove the bracket when switching from tripod to gimbal.

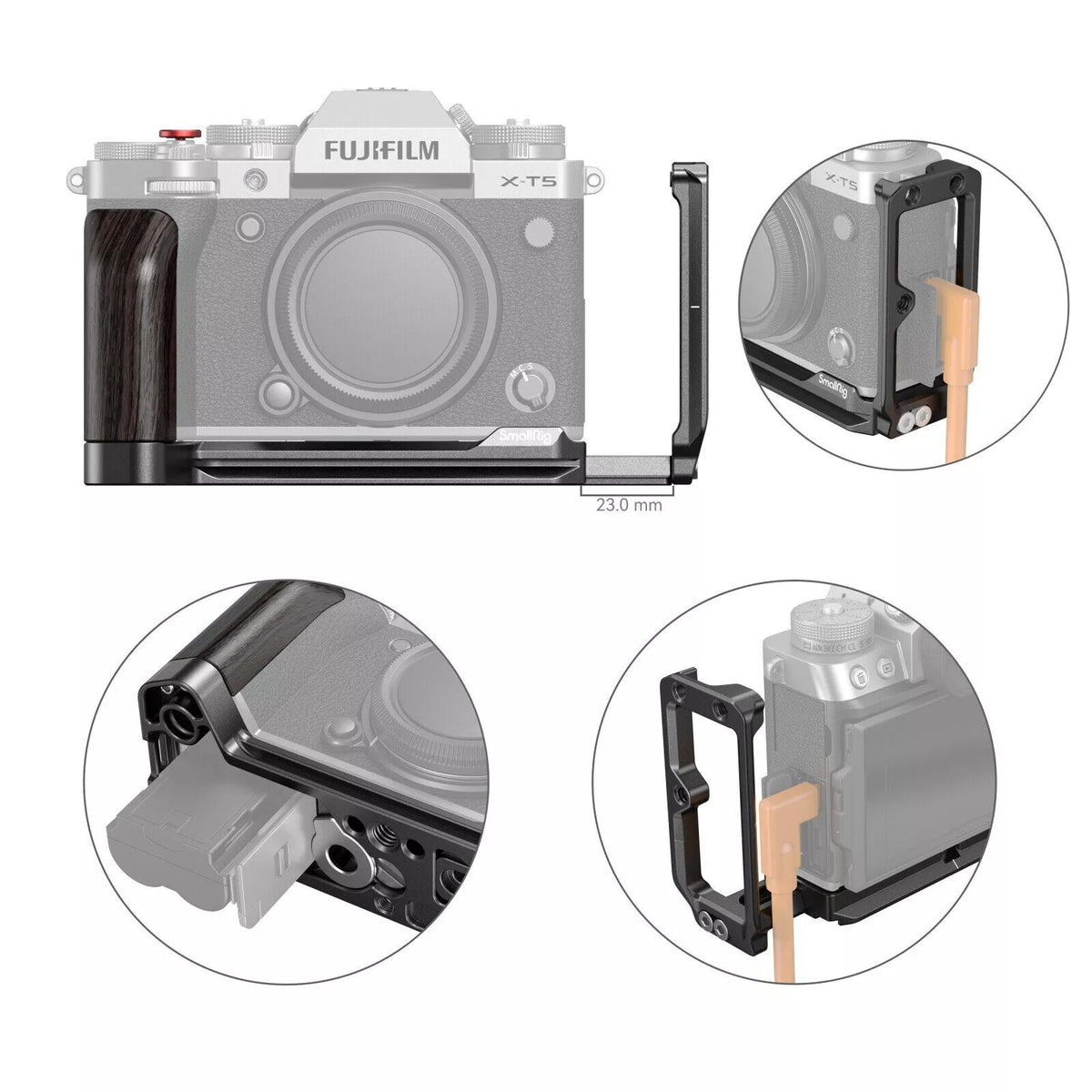

↔️ Extendable Side Plate

• The side plate stretches 23mm to the left.

• Prevents HDMI/USB cables from bending or disconnecting during vertical shooting.

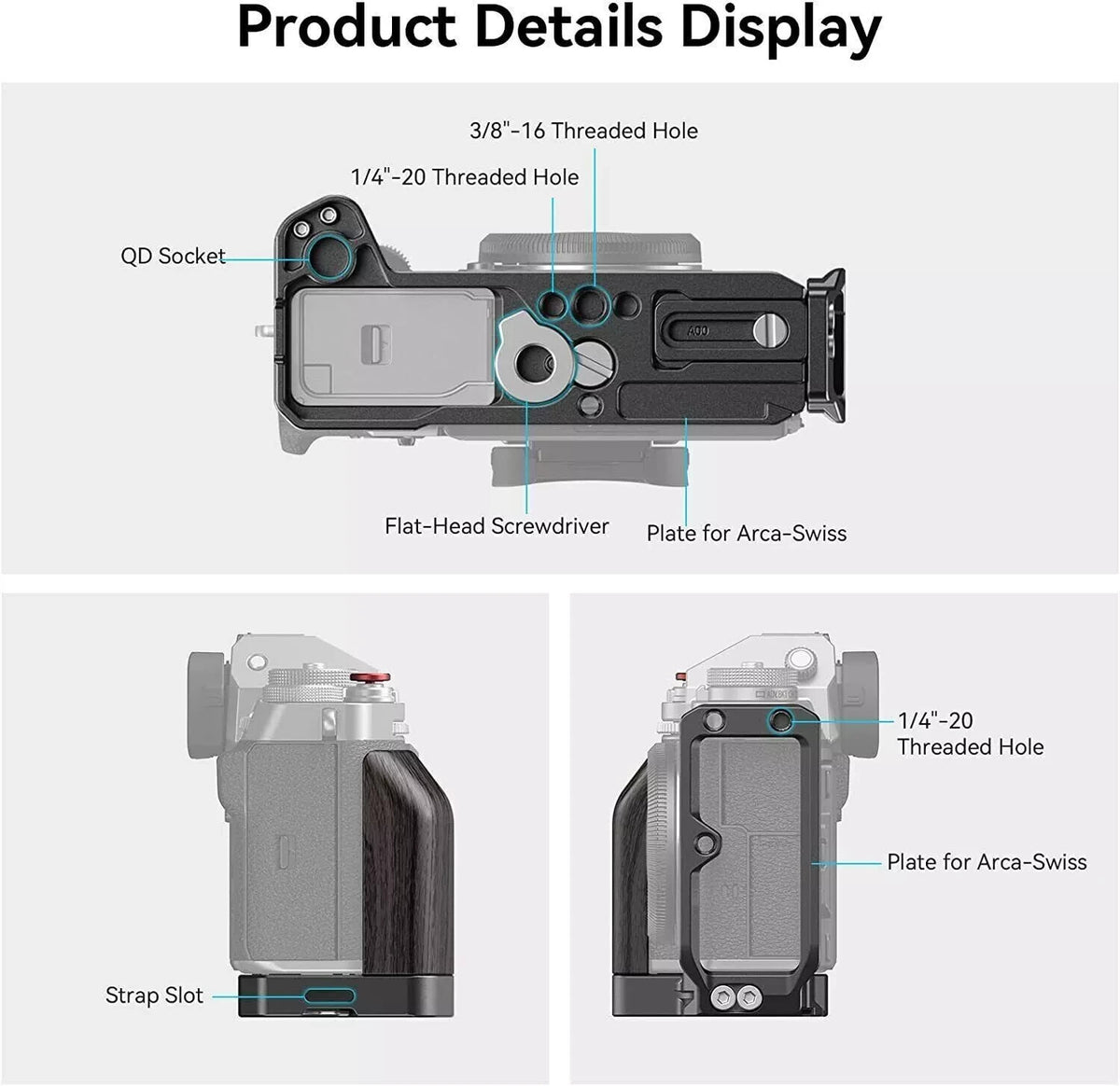

Multi-Mounting Options

• 1/4"-20 & 3/8"-16 Threaded Holes: For handles, magic arms, or Manfrotto plates.

• QD Port & Strap Slot: For quick-release shoulder straps or hand straps.

️ Technical Specifications

Usage Tips

• Natural Variation: Ebony wood has unique grain patterns and colors; slight variations from product photos are normal.

• Gimbal Balance: When mounting on a DJI gimbal, ensure the camera is balanced correctly with the L-bracket attached.

• Cable Management: Extend the side plate before connecting HDMI or USB-C cables to avoid strain.

• Shutter Button: Install the included shutter button for a softer, more satisfying tactile feel.

️ Important Notes

• Model Specificity: This bracket is engineered specifically for the Fujifilm X-T5. Forcing it onto other models may damage the camera or the bracket.

• Wood Care: Avoid exposing the ebony grip to excessive moisture or extreme temperatures.

• Torque: Tighten the 1/4"-20 screw securely, but do not over-torque to prevent damage to the camera's tripod socket.
