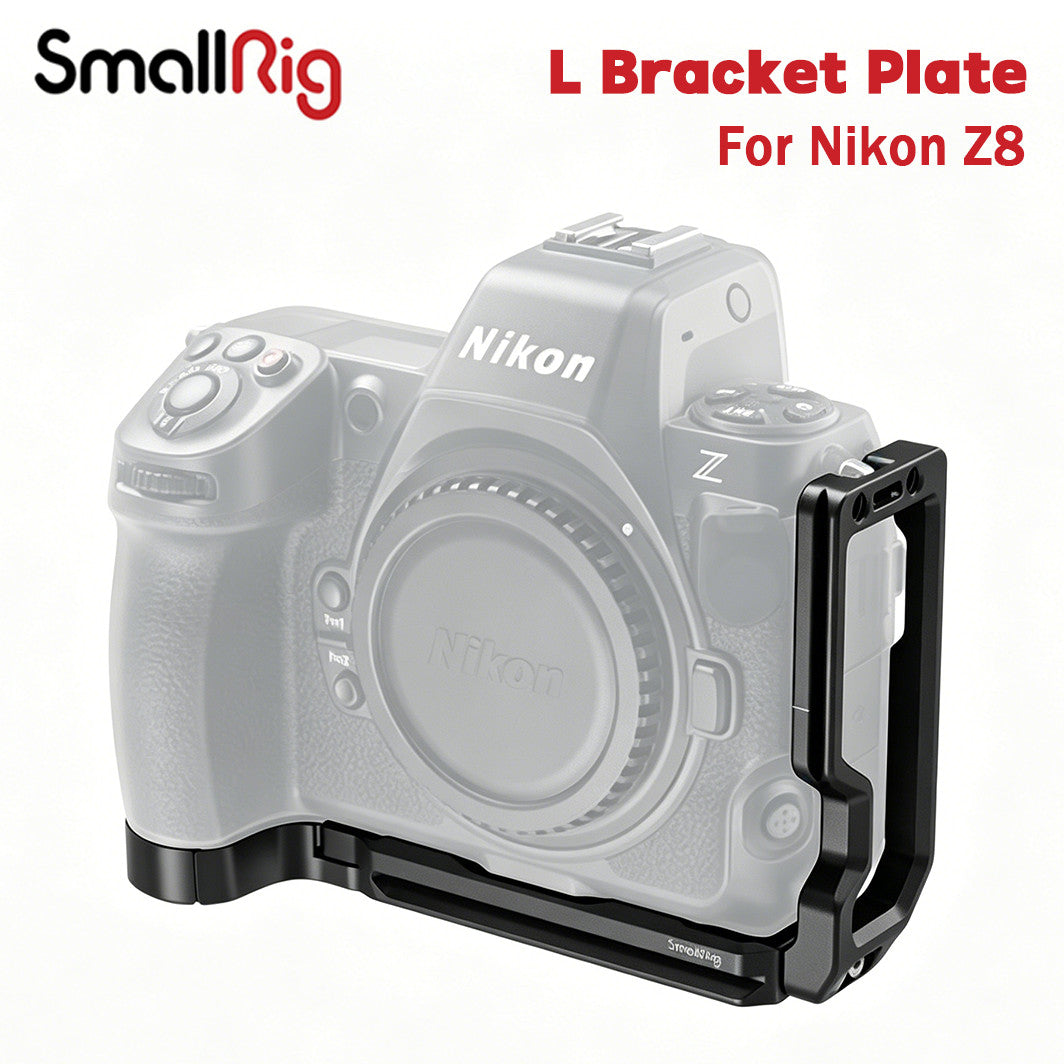

SmallRig L-Bracket for Nikon Z8

Arca-Swiss, Hinged Battery Door, Extendable Side Plate

---

Compatible Products

• Nikon Z8

• Gimbal Compatible: Mounts directly to DJI RS 2, RSC 2, RS 3, and RS 3 Pro stabilizers without removal.

Note: This L-bracket is precision-molded for the Z8 body. Not compatible with Z7 II, Z9, or other Nikon models.

---

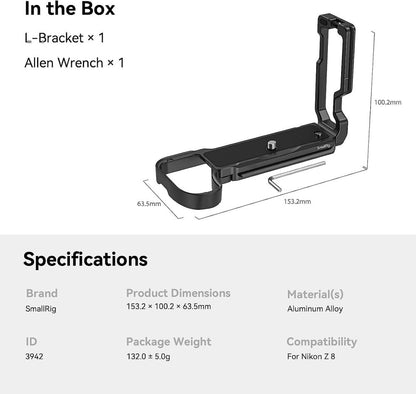

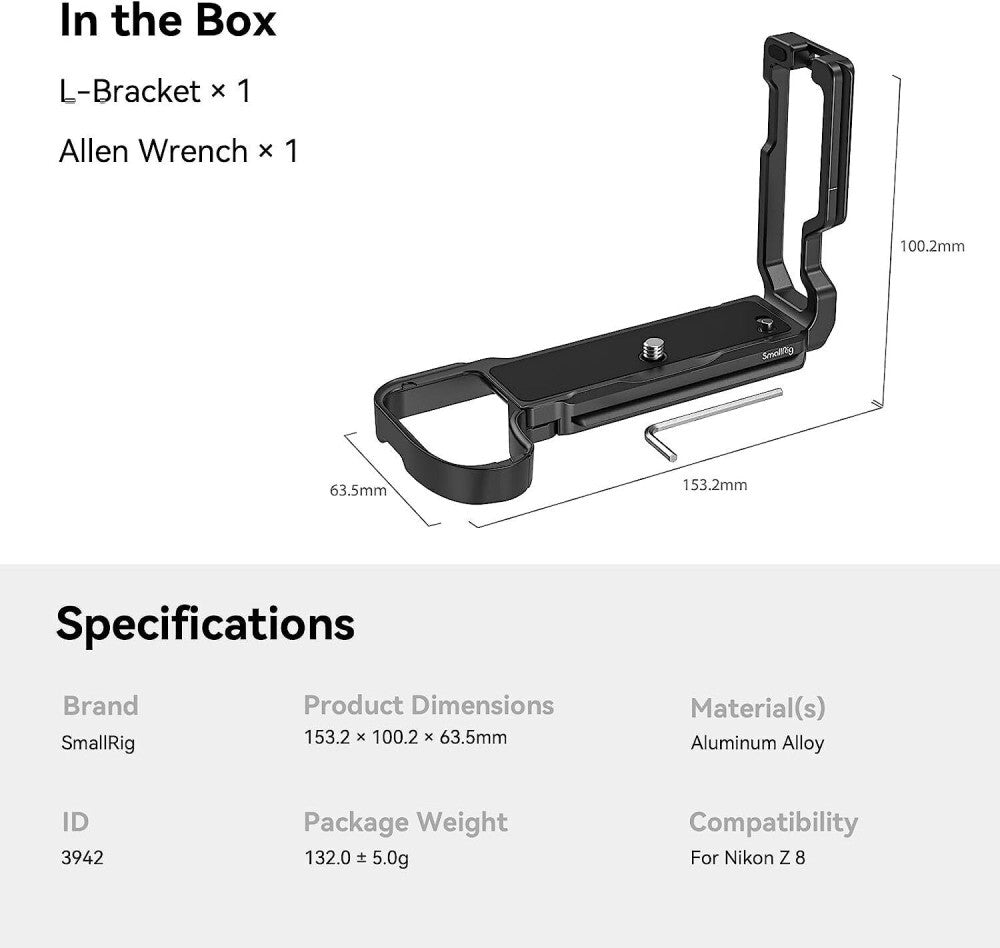

In The Box

• 1 × SmallRig L-Bracket

• 1 × Hex Wrench

---

Product Overview

The SmallRig 3942 L-Bracket is a specialized mounting solution designed to enhance the handling and workflow of the Nikon Z8.

Engineered for professional photographers, it features a hinged battery door that maintains the camera's native grip comfort while providing quick access to the battery. Both the base and side plates are Arca-Swiss compatible, enabling instant switching between horizontal and vertical shooting on tripods and gimbals.

---

Key Features

Dual Arca-Swiss Plates

• Base & Side Plates: Both feature standard Arca-Swiss dovetails.

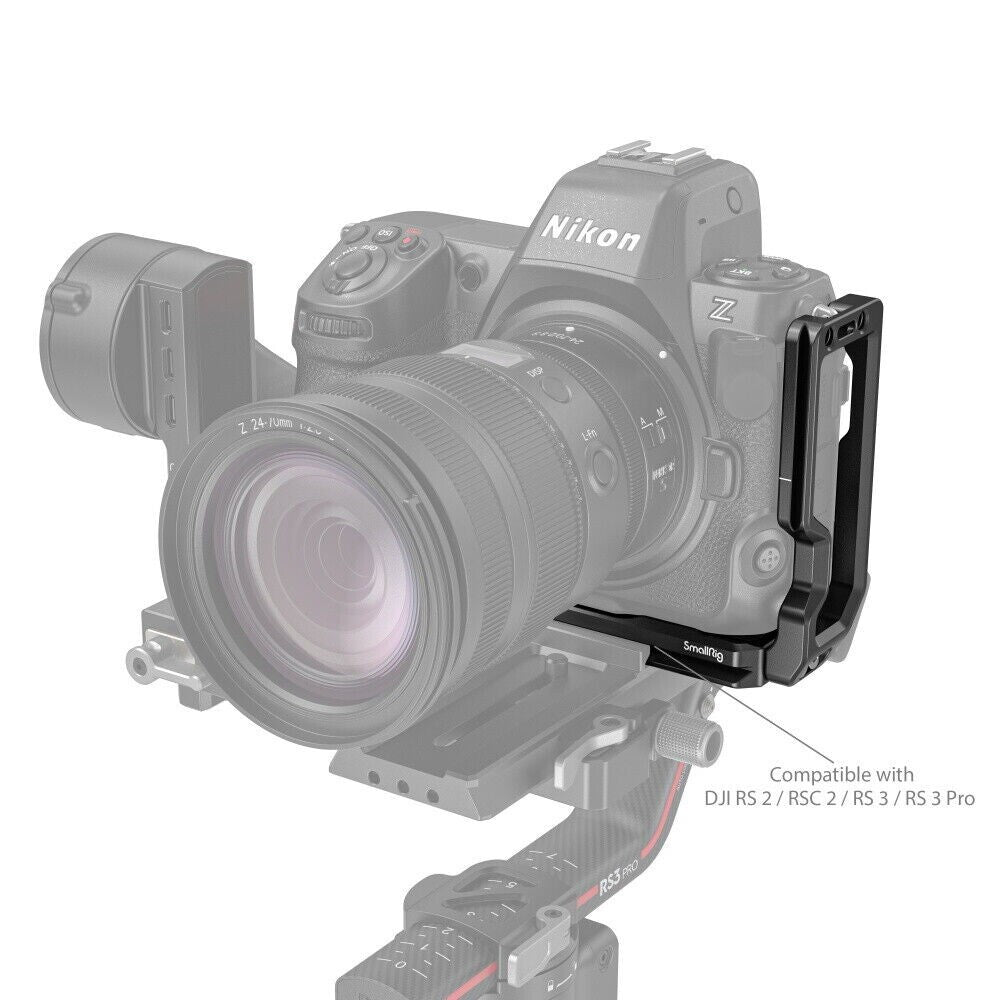

• Gimbal Compatible: Mounts directly to DJI RS 2, RSC 2, RS 3, and RS 3 Pro stabilizers without removal.

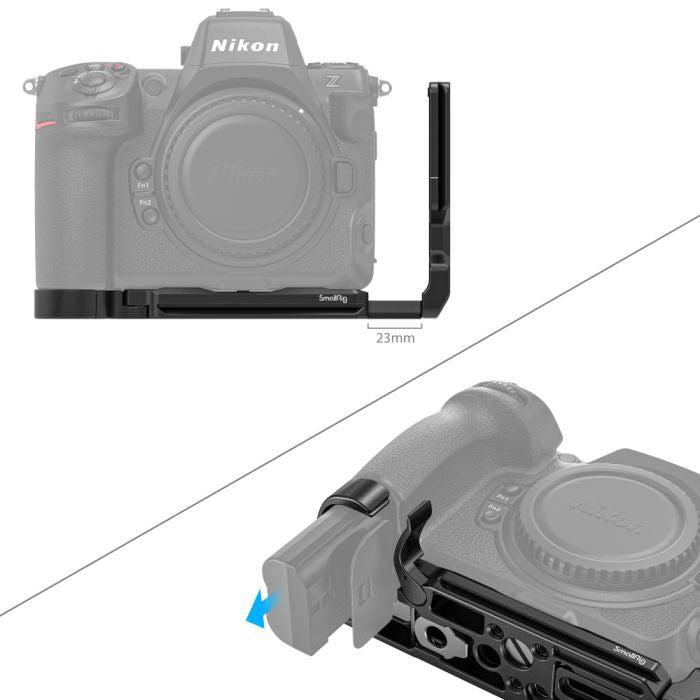

Hinged Battery Door Design

• The battery compartment features a spindle spanner that matches the camera's curve.

• Enhances the grip for your little finger and allows battery swaps without removing the bracket.

↔️ 23mm Extendable Side Plate

• The side plate pulls out to the left, providing 23mm of clearance for HDMI and USB-C cables during vertical shooting.

• Prevents cable strain and ensures stable data transmission.

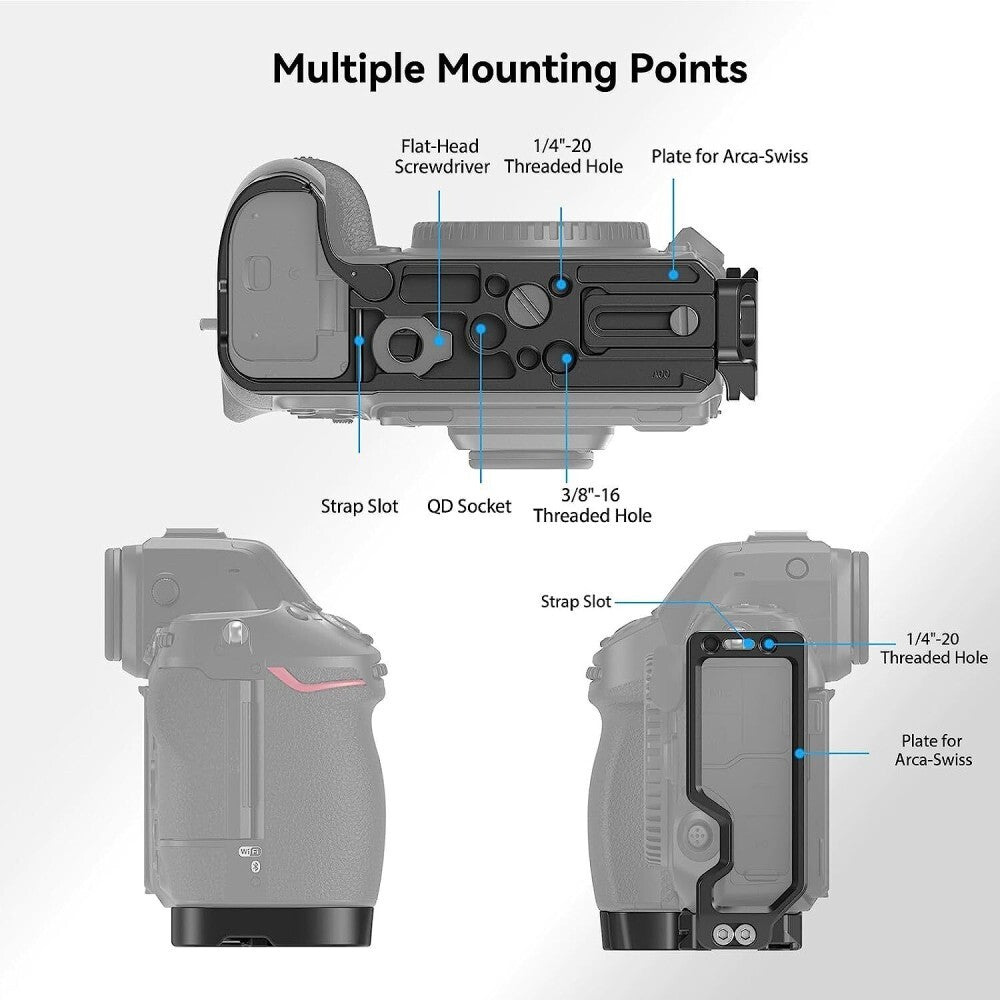

Multi-Interface Expansion

• Base: 1/4"-20 threaded holes, 3/8"-16 threaded holes, QD socket, and wrist strap hole.

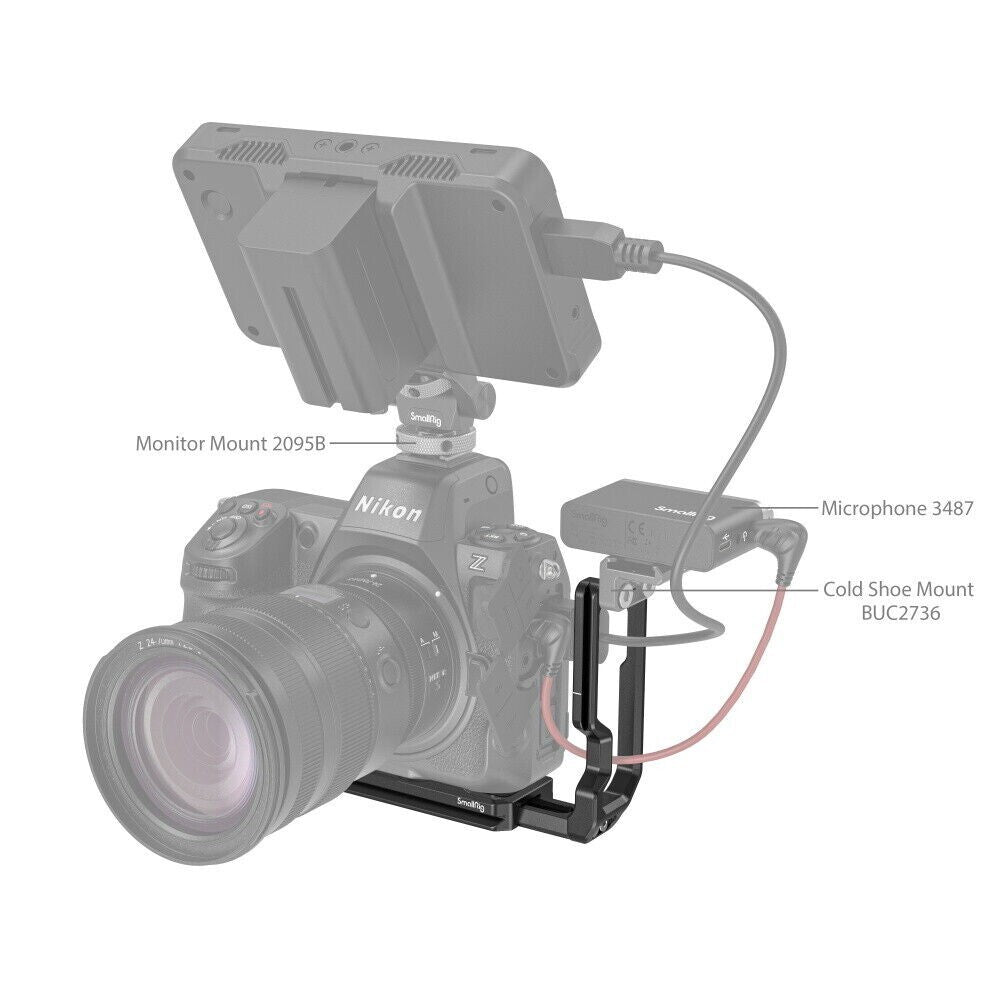

• Side: 1/4"-20 threaded hole with locating pin for cold shoe mounts (BUC2736).

---

️ Technical Specifications

---

Usage Tips

• Gimbal Use: When mounting on a DJI RS series gimbal, balance the camera with the L-bracket attached to ensure smooth motor performance.

• Cable Management: Always extend the side plate before connecting HDMI or USB-C cables to avoid bending.

• QD Strap: Use the QD socket for a quick-release shoulder strap to improve mobility during shoots.

• Magnetic Wrench: The hex wrench is stored magnetically on the bracket; keep it handy for quick adjustments.

---

️ Important Notes

• Model Specificity: This bracket is engineered specifically for the Nikon Z8. Forcing it onto other models may damage the camera or the bracket.

• Battery Access: The hinged design allows battery swaps, but ensure the door is fully closed before shooting.

• Torque Setting: Tighten the 1/4"-20 screw firmly, but avoid over-torquing to prevent damage to the camera's tripod socket.
