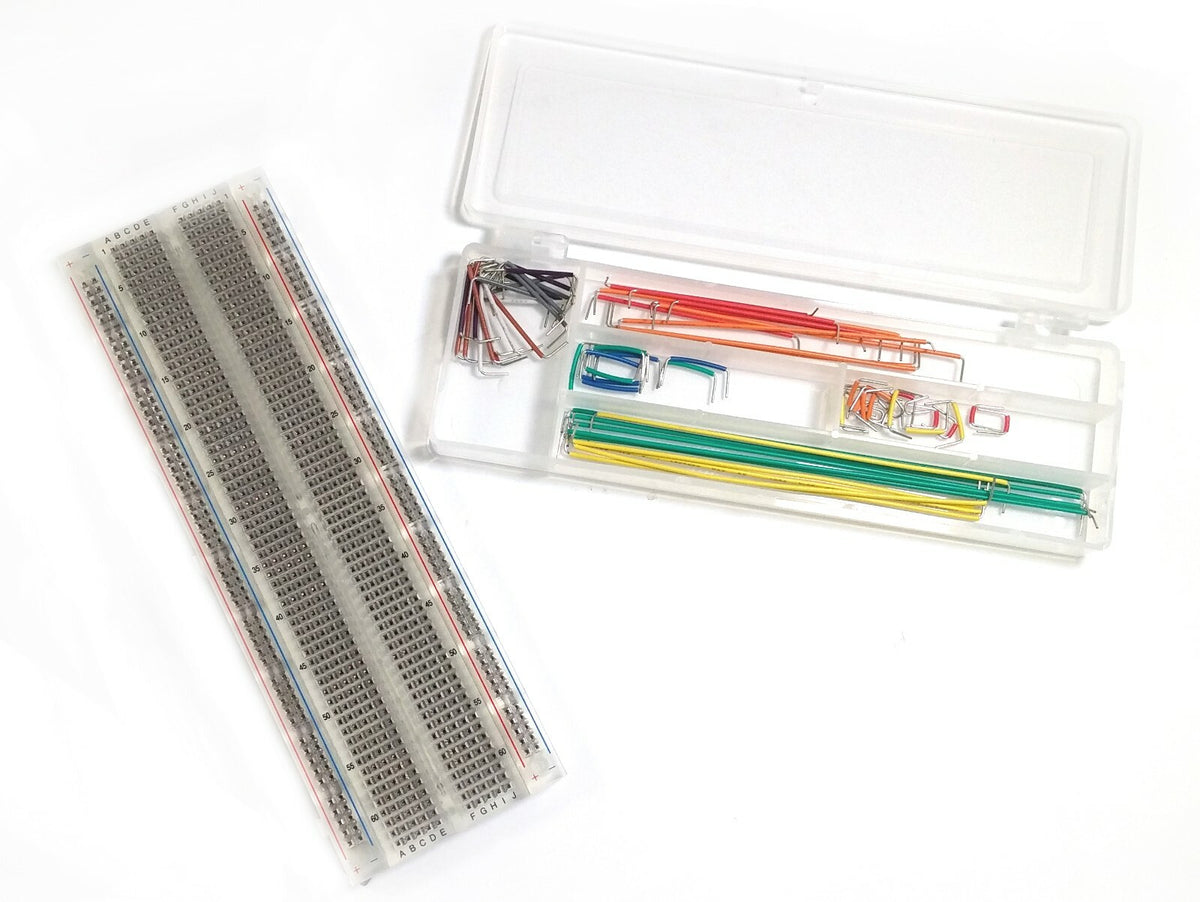

Solderless Clear Breadboard (810 Tie Points) 6.5" x 2.1" with 70 Jumper Wires

Solderless Clear Breadboard (810 Tie Points) 6.5" x 2.1" with 70 Jumper Wires

$29.40 USD
$36.96 USD $29.40 USD
Sale Sold out
Shipping calculated at checkout.
eBay

Solderless Clear Breadboard (810 Tie Points)

6.5" x 2.1" with 70 Piece Jumper Wire Kit

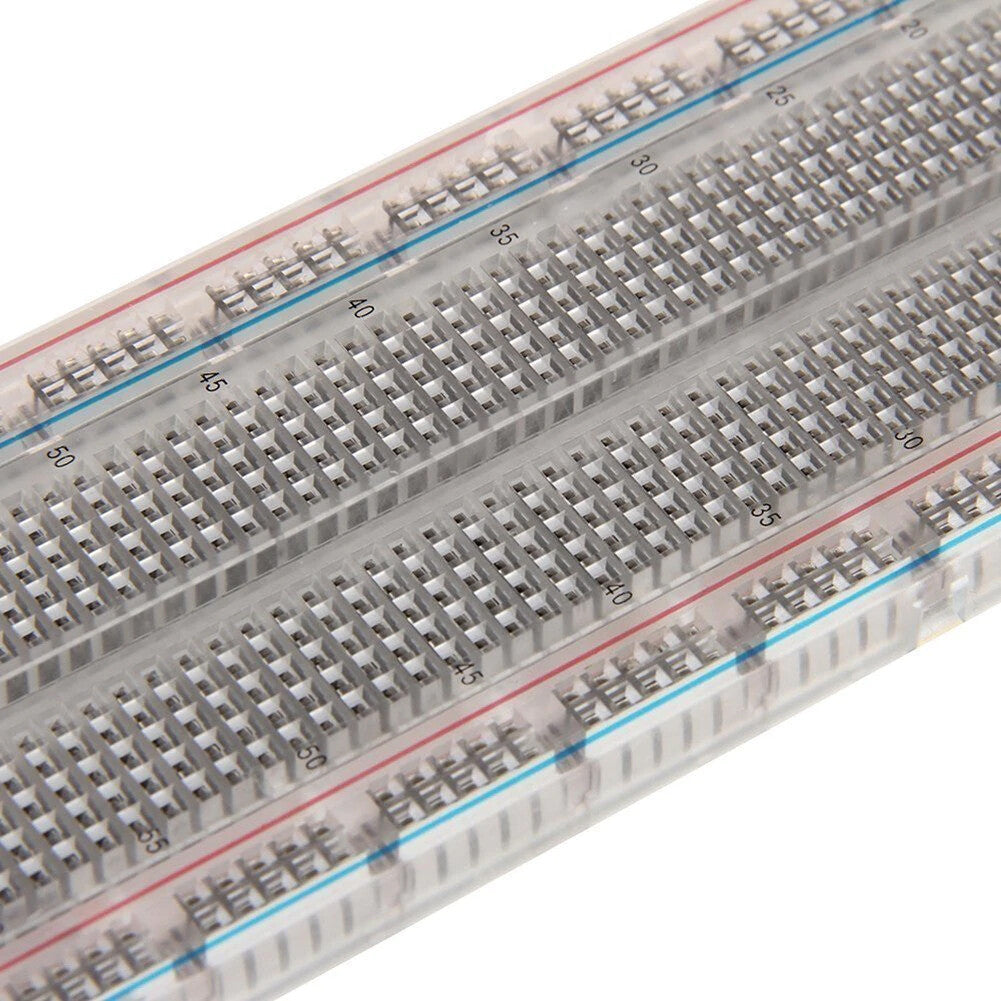

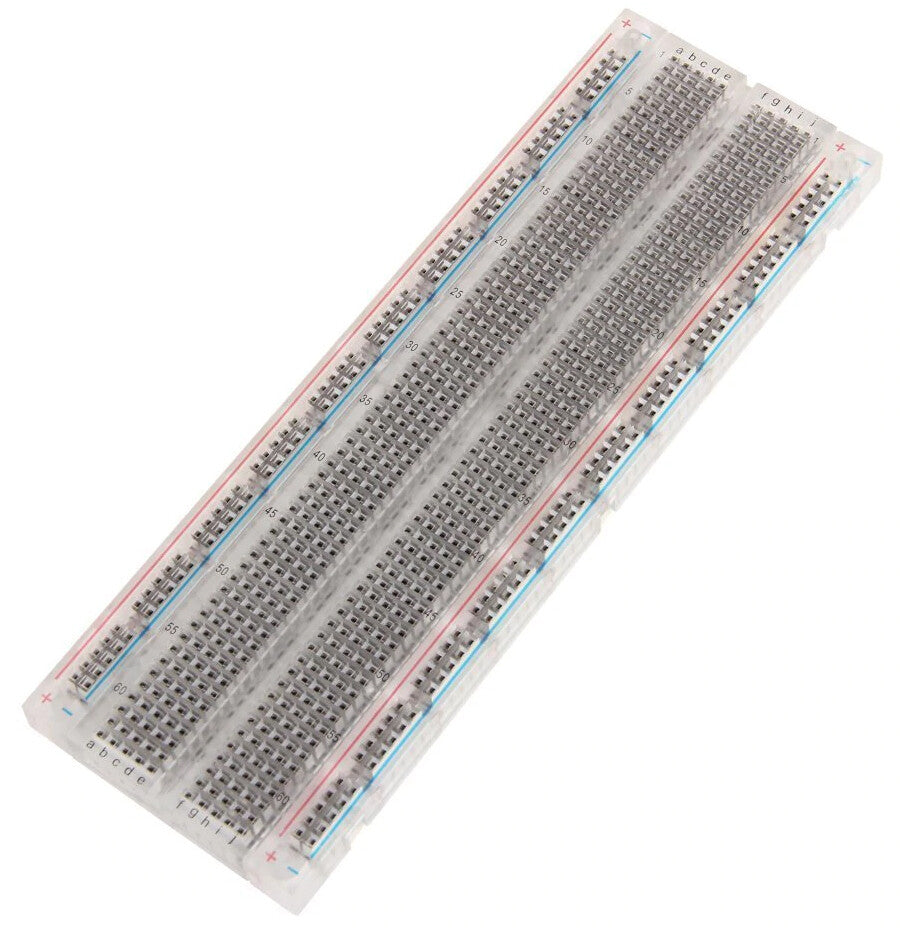

  • Clear / see-thru design makes it easier for students to learn prototyping using breadboards. 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
  • ABS plastic body with printed legend. Color legend on distribution strips.
  • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions. Rated at 36 Volts, 2 Amps.
  • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

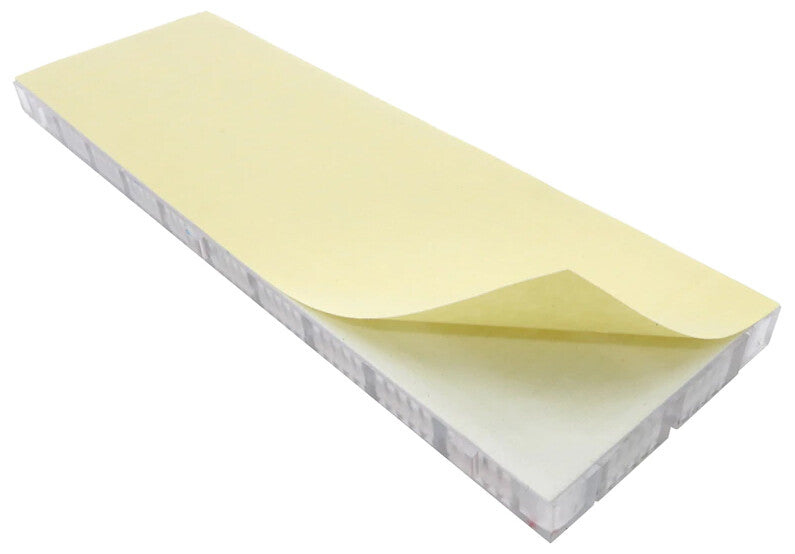

  • Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm) Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.

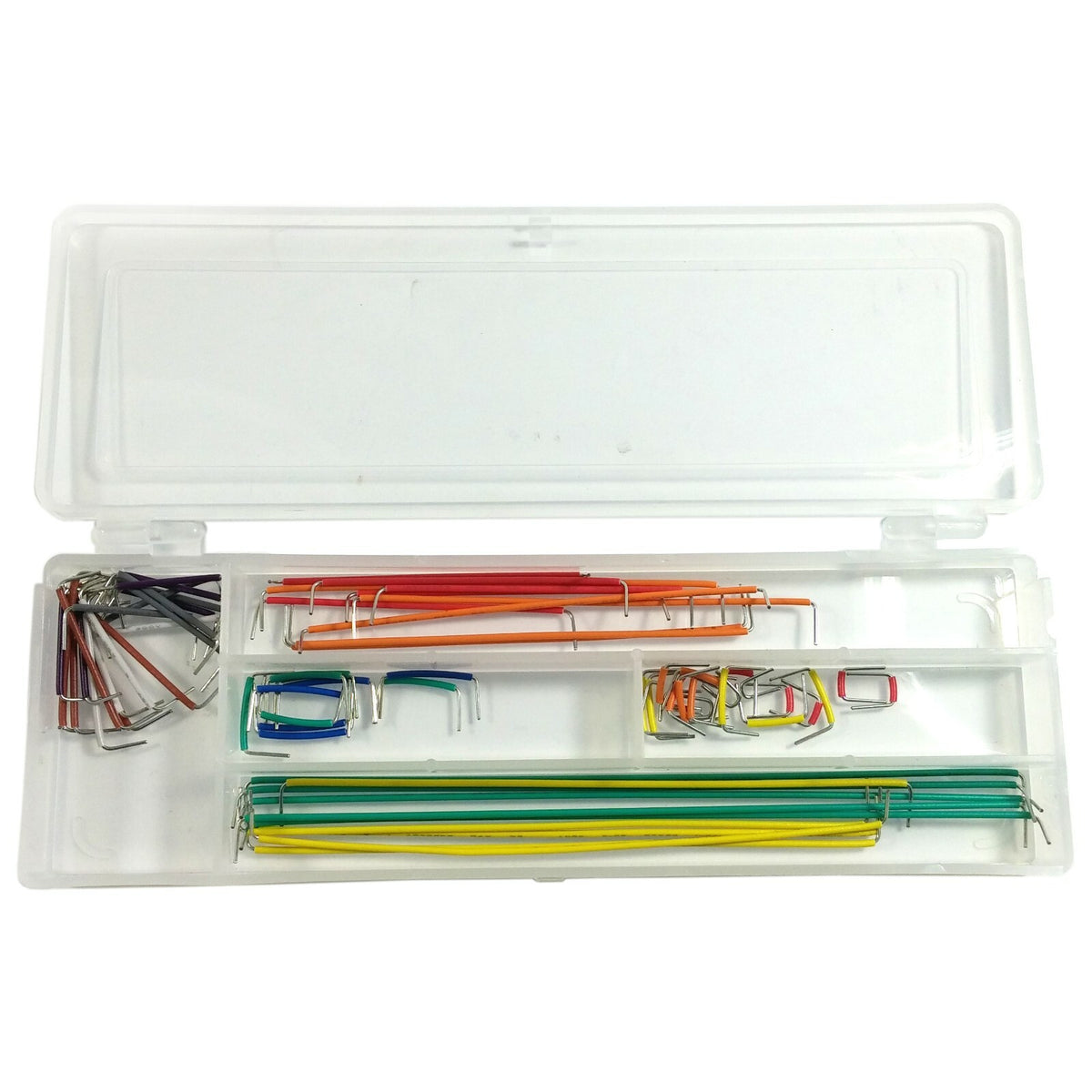

  • Includes 70 piece jumper wire kit - 22 AWG solid wire jumpers (assorted lengths and colors) in a small plastic case
Ideal for testing, prototyping, and experimentation, this solderless breadboard features a clear / see-thru design, making it easier for students to learn prototyping using breadboards. Measures 6.5" x 2.1" and features 830 contact points (i.e. 830 wire insertion holes). It has 630 tie-point IC-circuit area plus four 50 tie-point power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The housing is made of clear ABS plastic, with a printed legend indicating columns and rows with numbers and letters. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface and an optional metal back plate is provided. Lead-Free and RoHS Compliant.

Includes 70 piece jumper wire kit - 22 AWG solid wire jumpers (assorted lengths and colors) in a small plastic case

Finished projects can be moved to our 0302PCMB Solderable PC BreadBoard (sold separately) to make them permanent.
