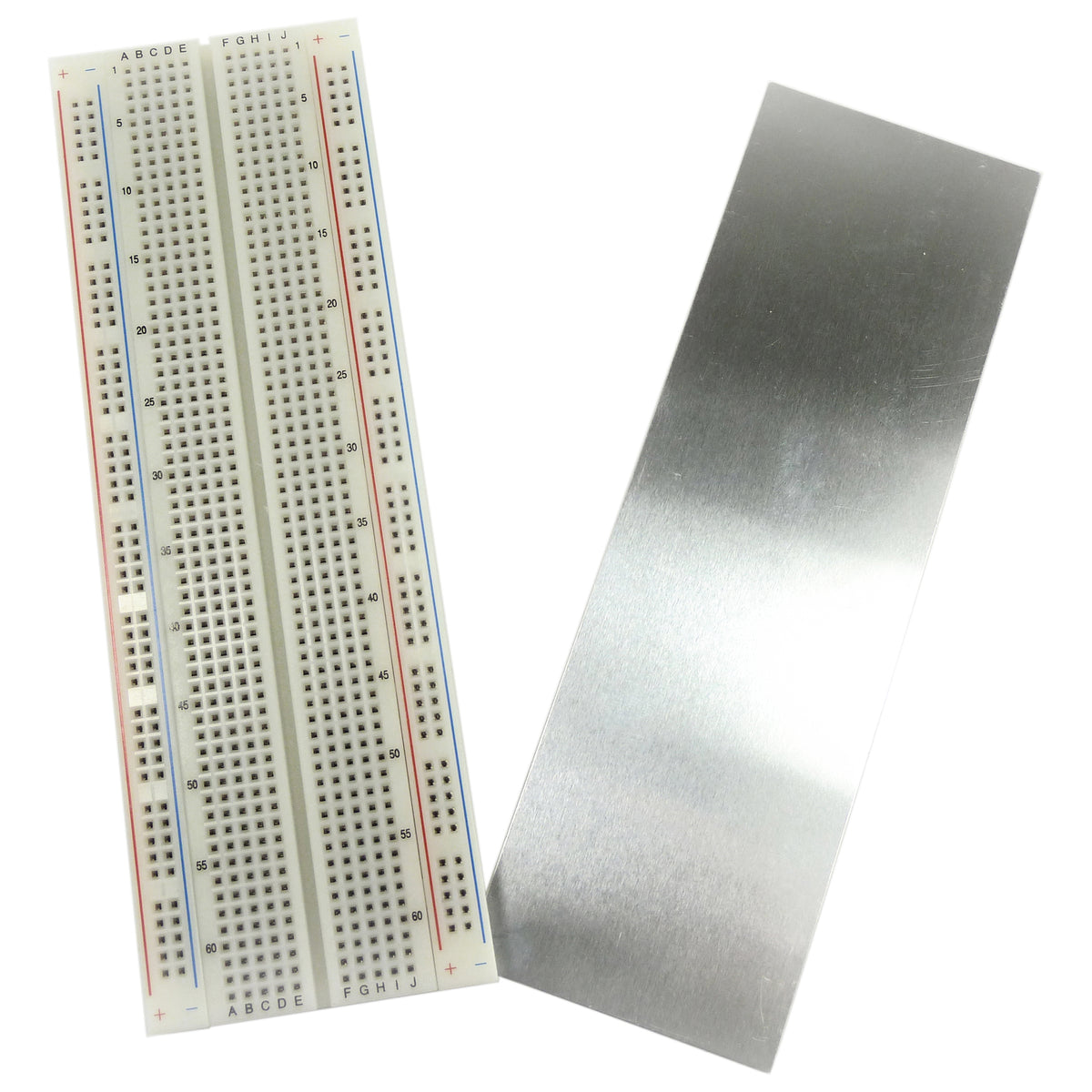

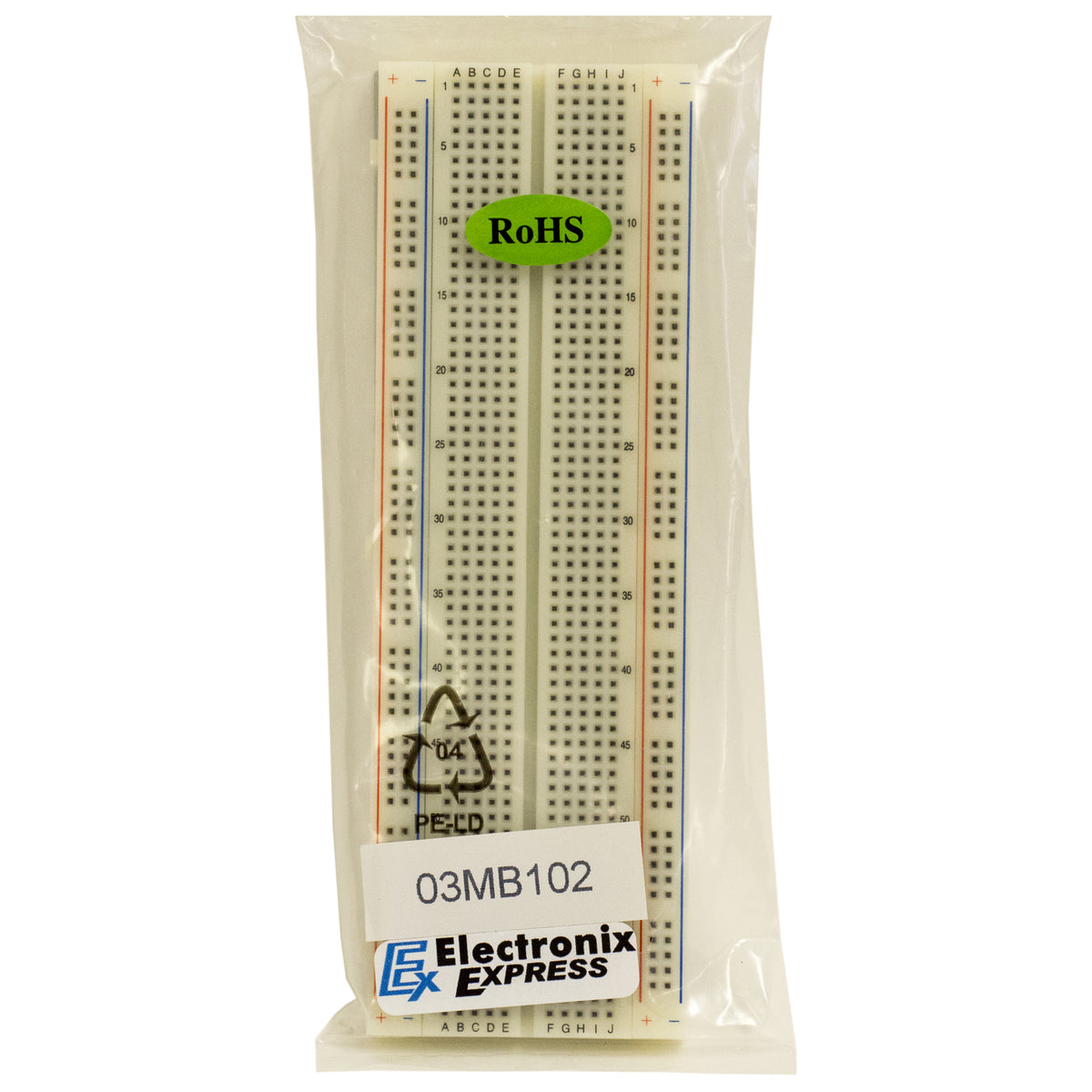

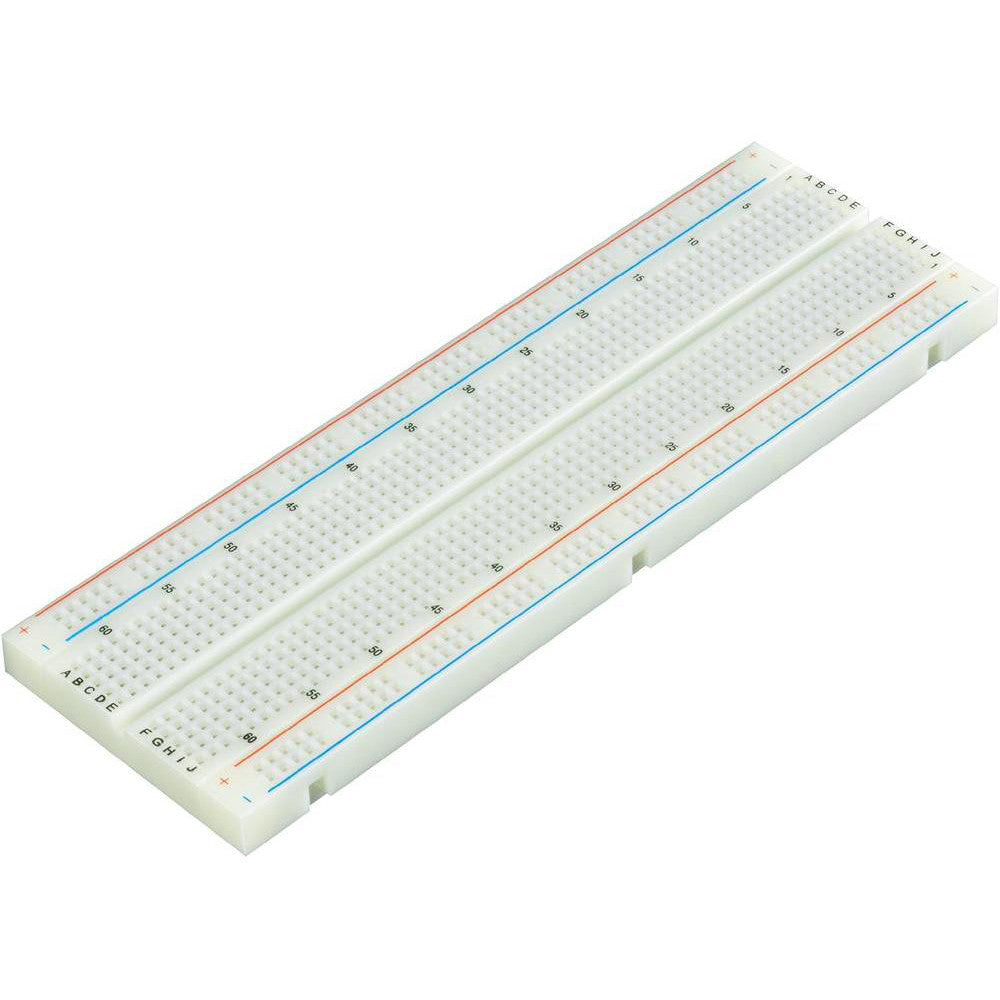

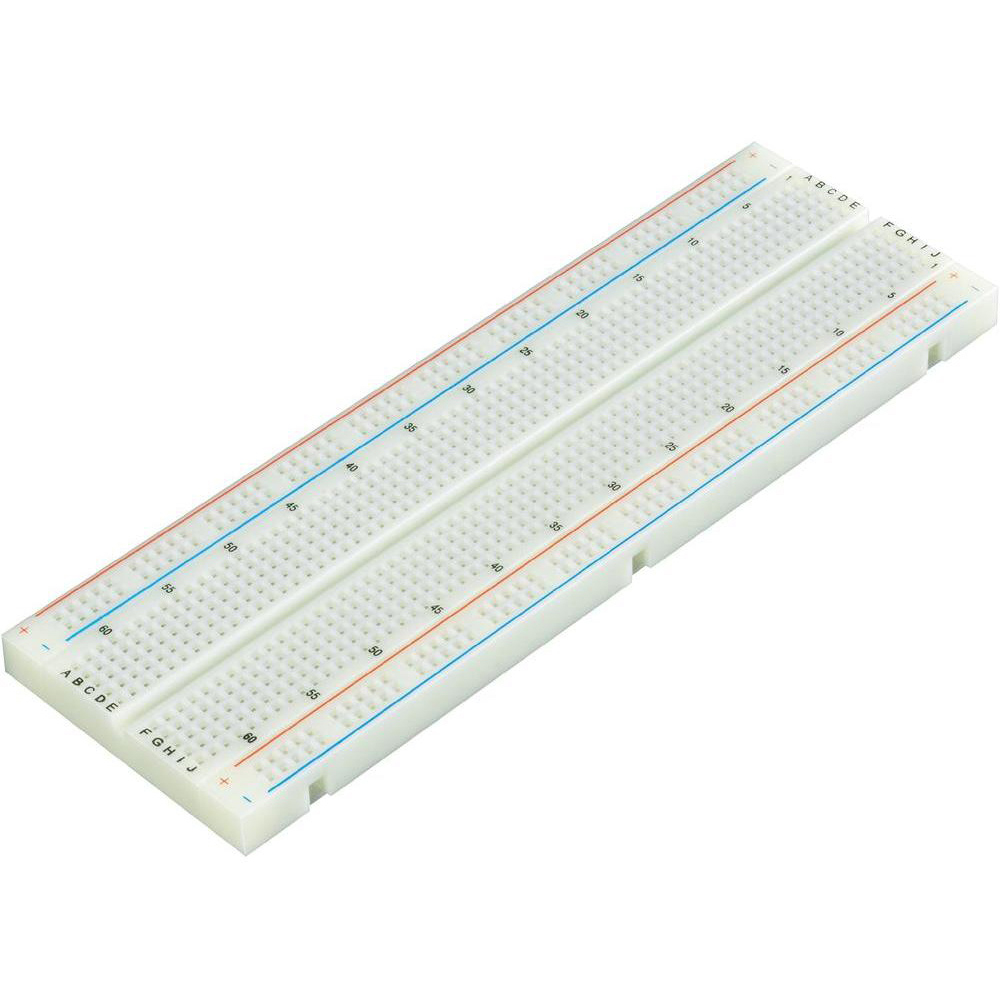

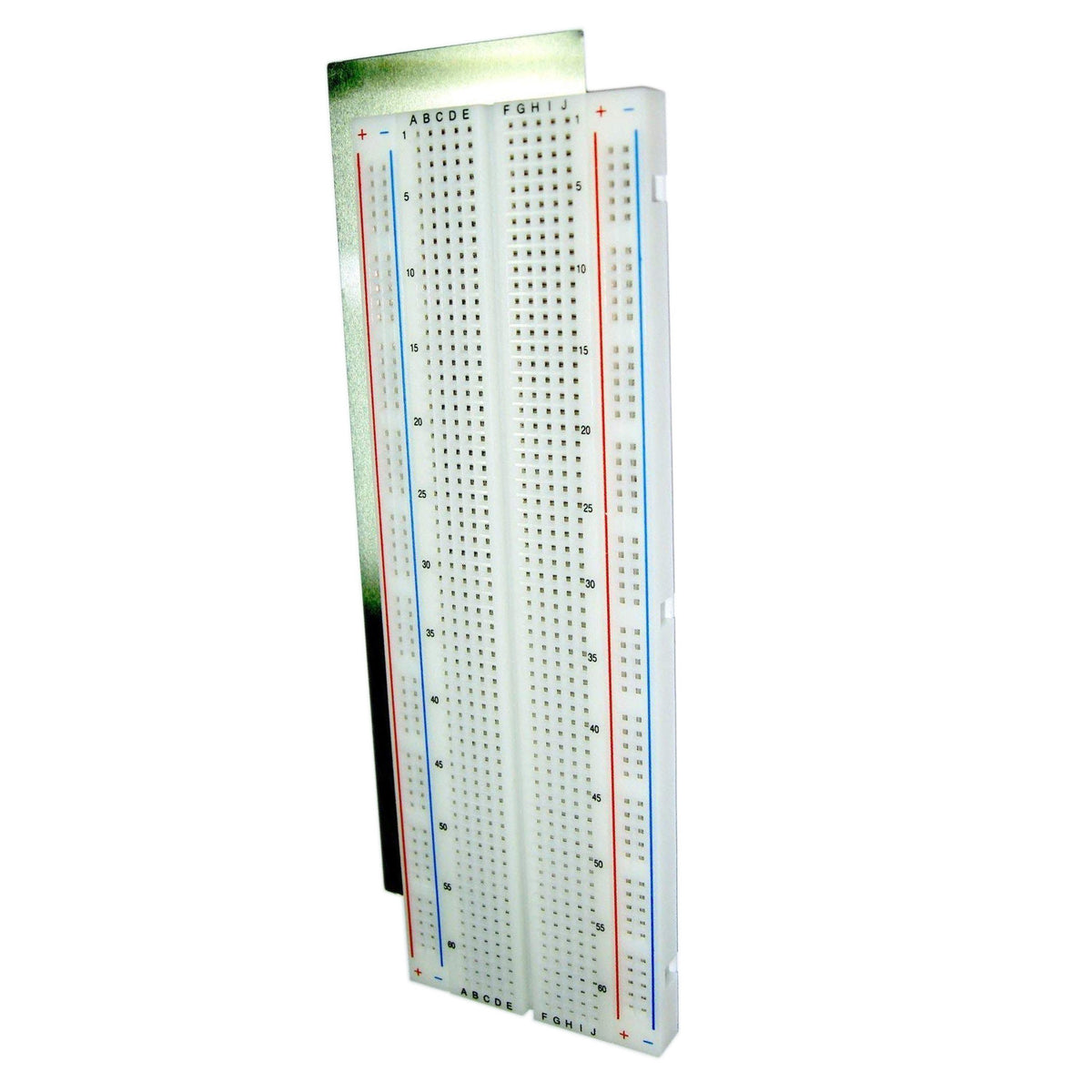

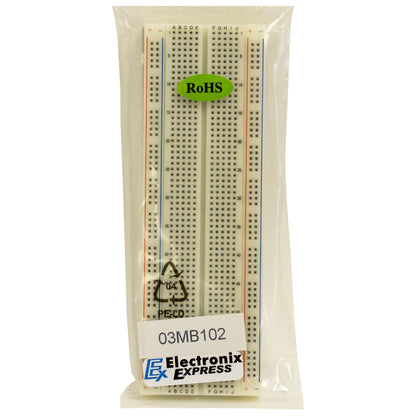

Solderless Plug-In Breadboard 830 Tie Points, 6.5" x 2.1" - ROHS Compliant

• 830 tie points total
• Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm)
• White ABS plastic body with black printed legend
• Color legend on distribution strips.
• Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

Ideal for testing, prototyping, and experimentation, this solderless breadboard measures 6.5" x 2.1" and features 830 contact points (i.e. 830 wire insertion holes). It has 630 tie-point IC-circuit area plus four 50 tie-point power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The housing is made of white ABS plastic, with a printed legend indicating columns and rows with numbers and letters. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface and an optional metal back plate is provided. Lead-Free and RoHS Compliant.

Finished projects can be moved to our 0302PCMB Solderable PC BreadBoard (sold separately) to make them permanent.
