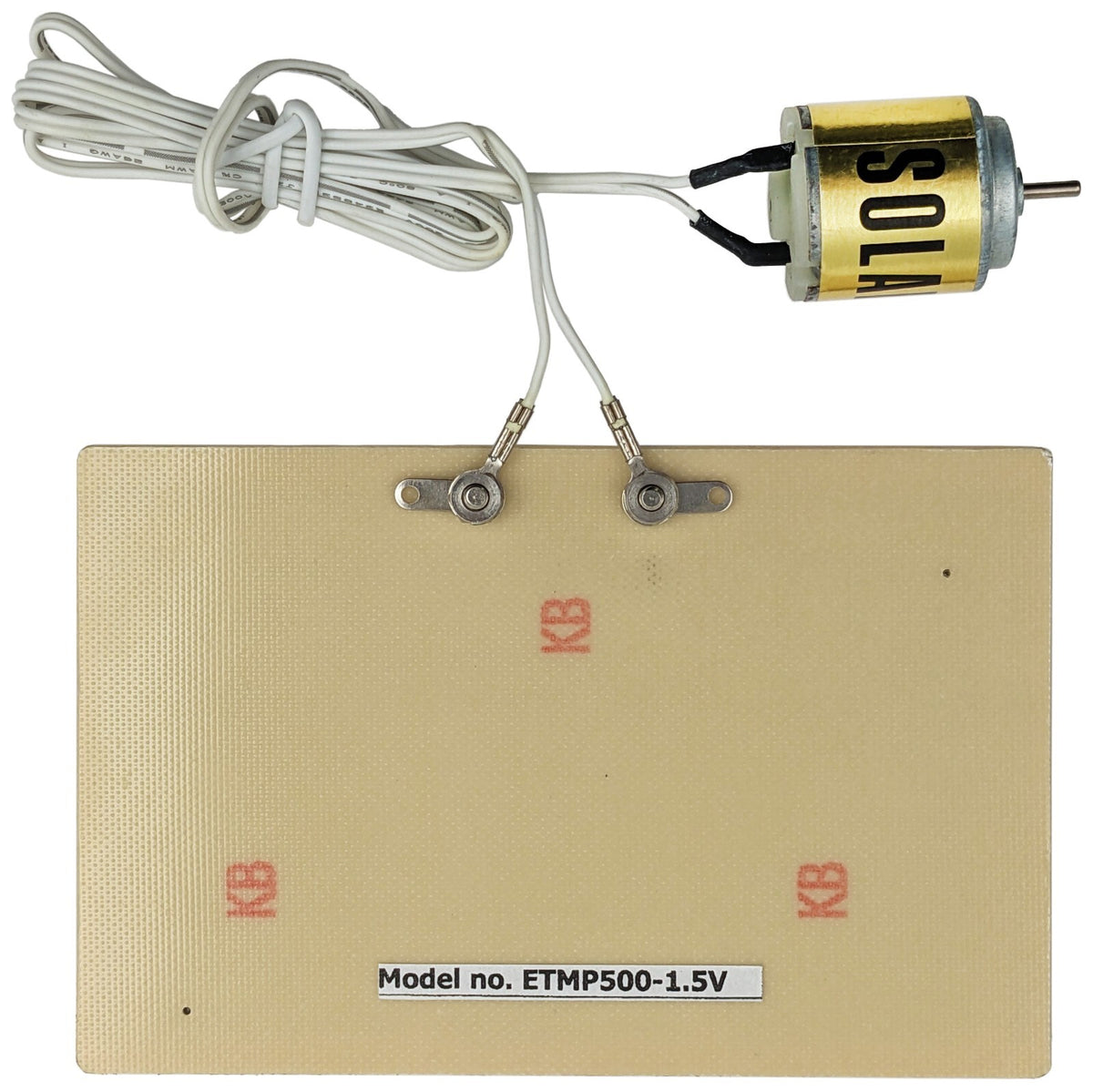

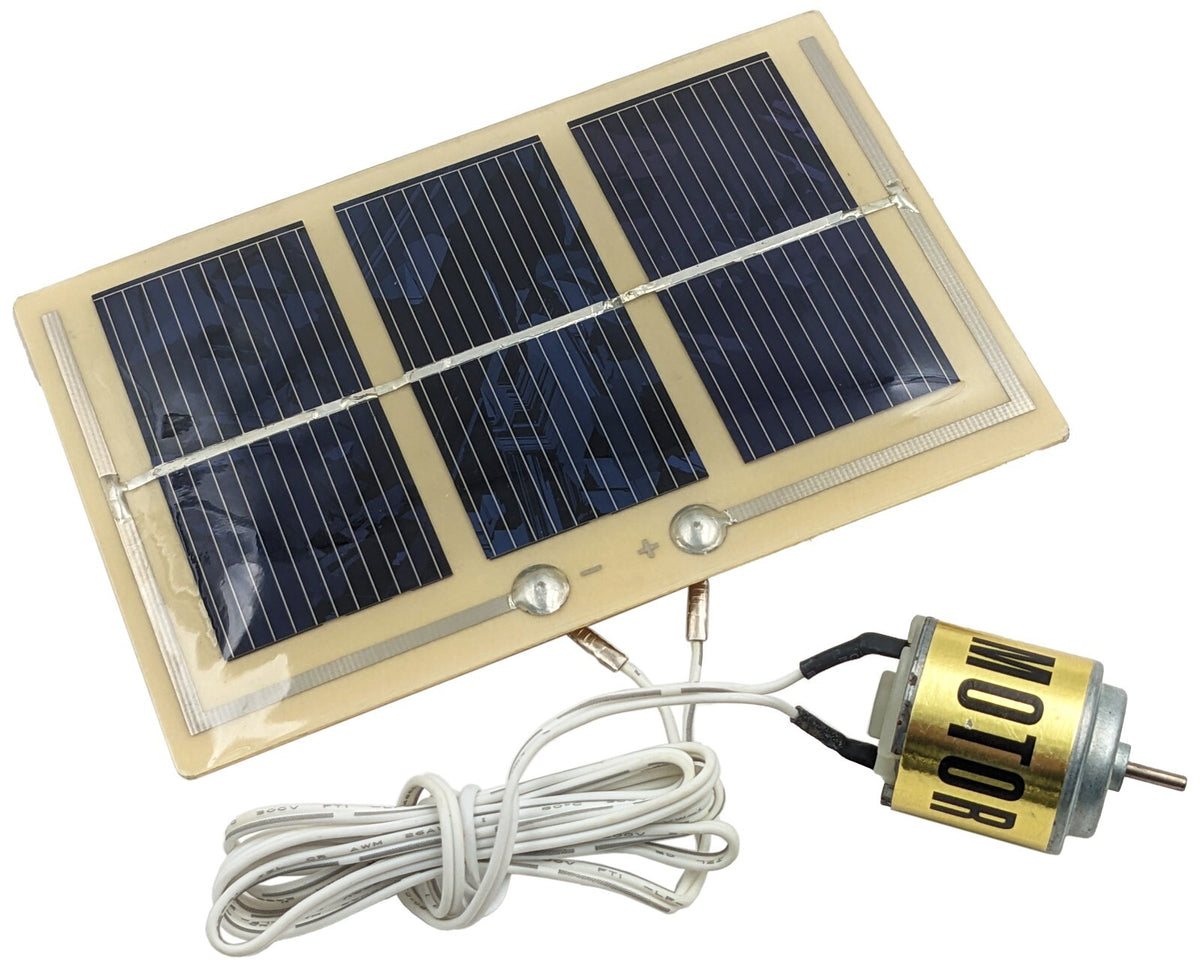

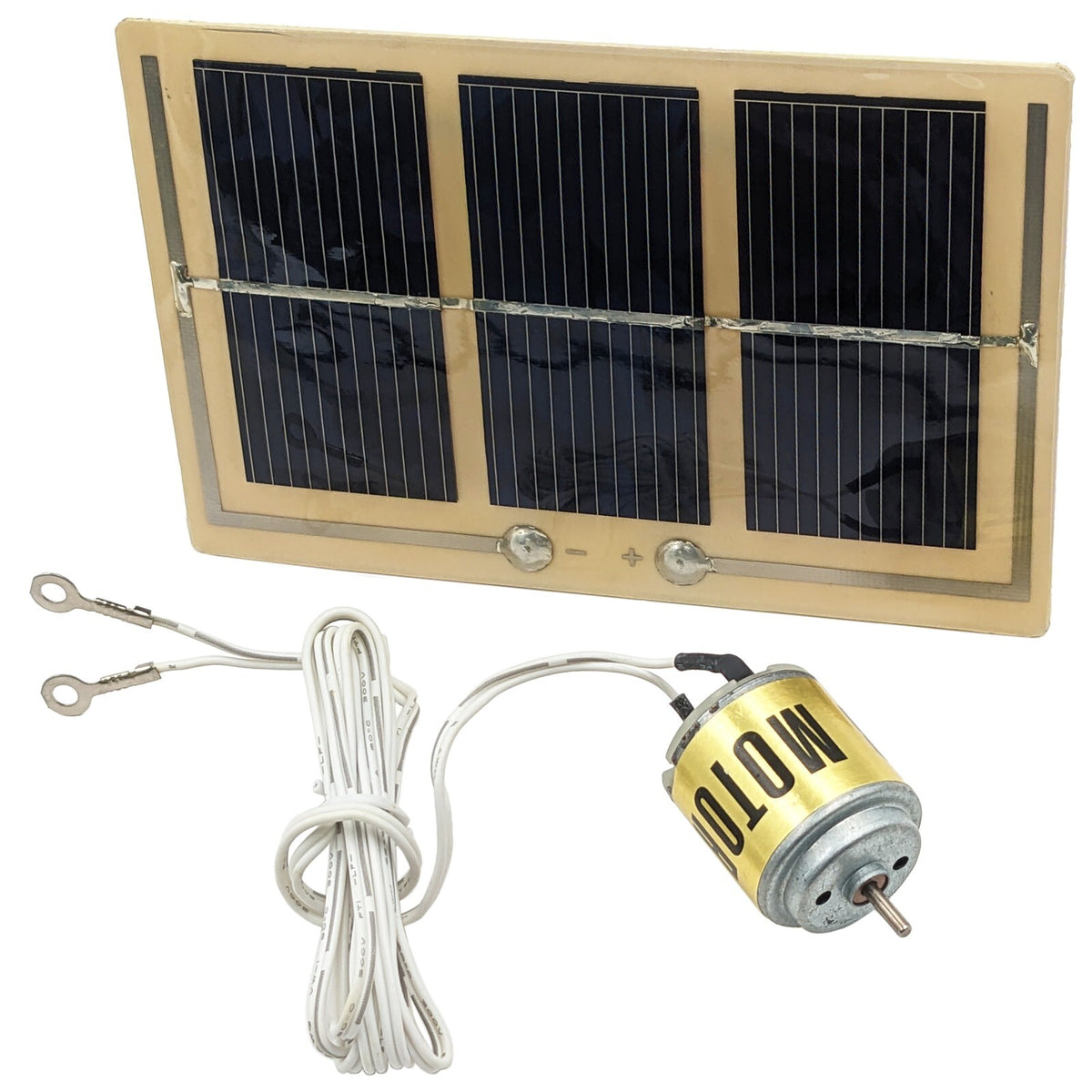

Solar Motor Kit - Includes Solar Cell Module and Clip-on DC Solar Motor (No Soldering Required)

Note: Before attaching the motor to the solar panel, please spin the motor a few rotations by hand slowly in both directions to loosen the grease that is used during manufacturing. Operates best in direct sunlight. If using artificial light, solar panel must be close to the light source.

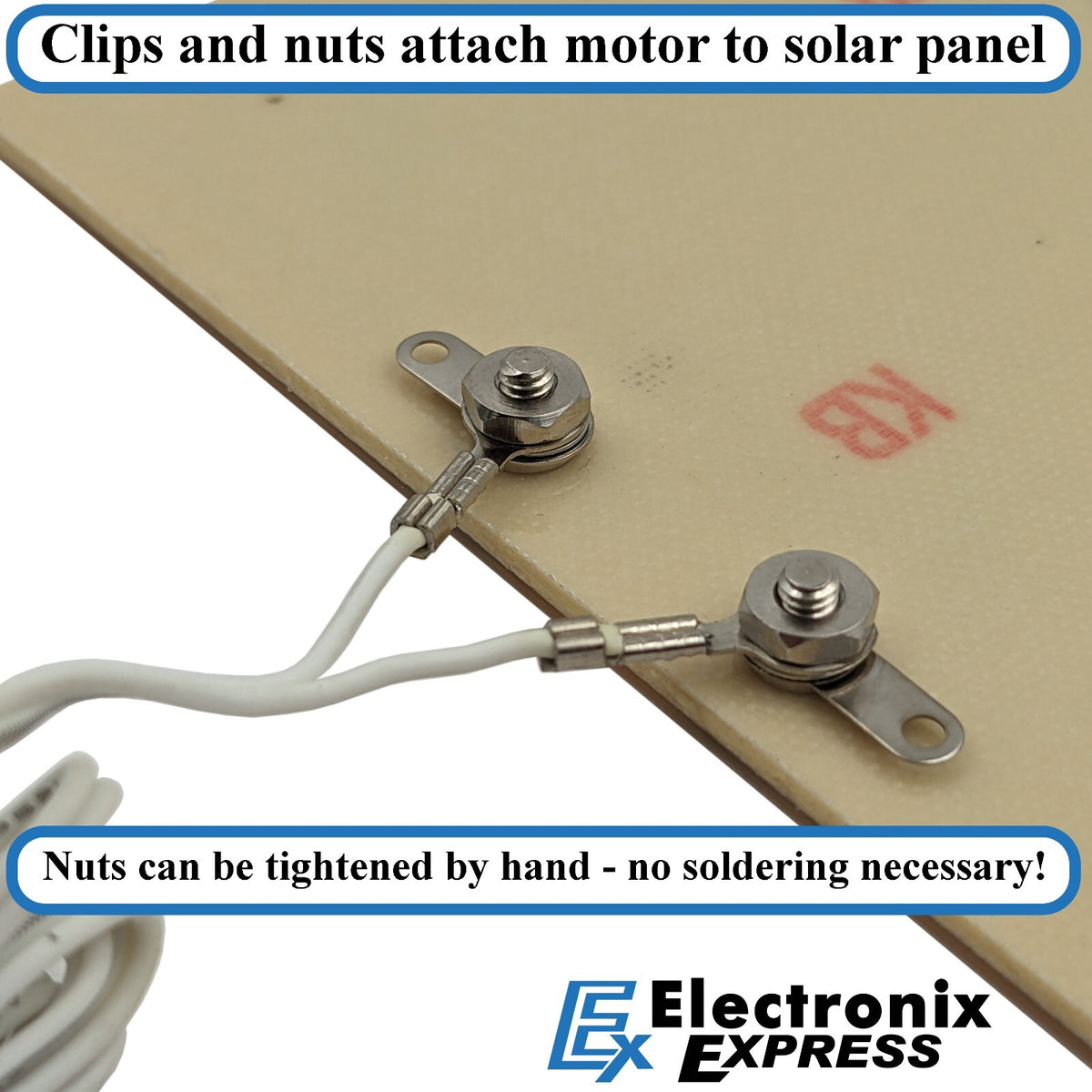

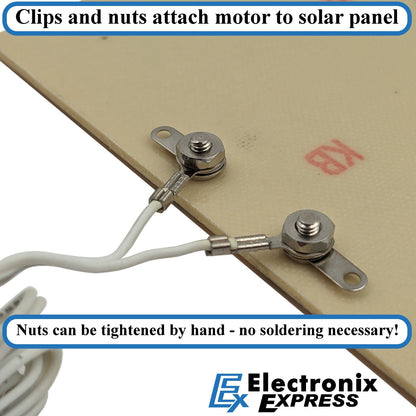

• Includes a solar cell module (1.5V, 500mA) along with a DC motor — no soldering necessary! The motor's wires have clips at the ends that attach to the solar panel using nuts that you can tighten by hand.
• Solar cell module harnesses the power of the sun and converts the light into usable electricity energy for countless applications.
• The solar cells are laminated in the high-quality resin material on the PC board with moisture protection.
• Solar Cell Module Specifications:

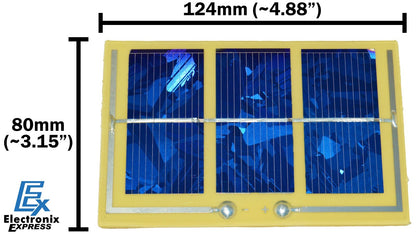

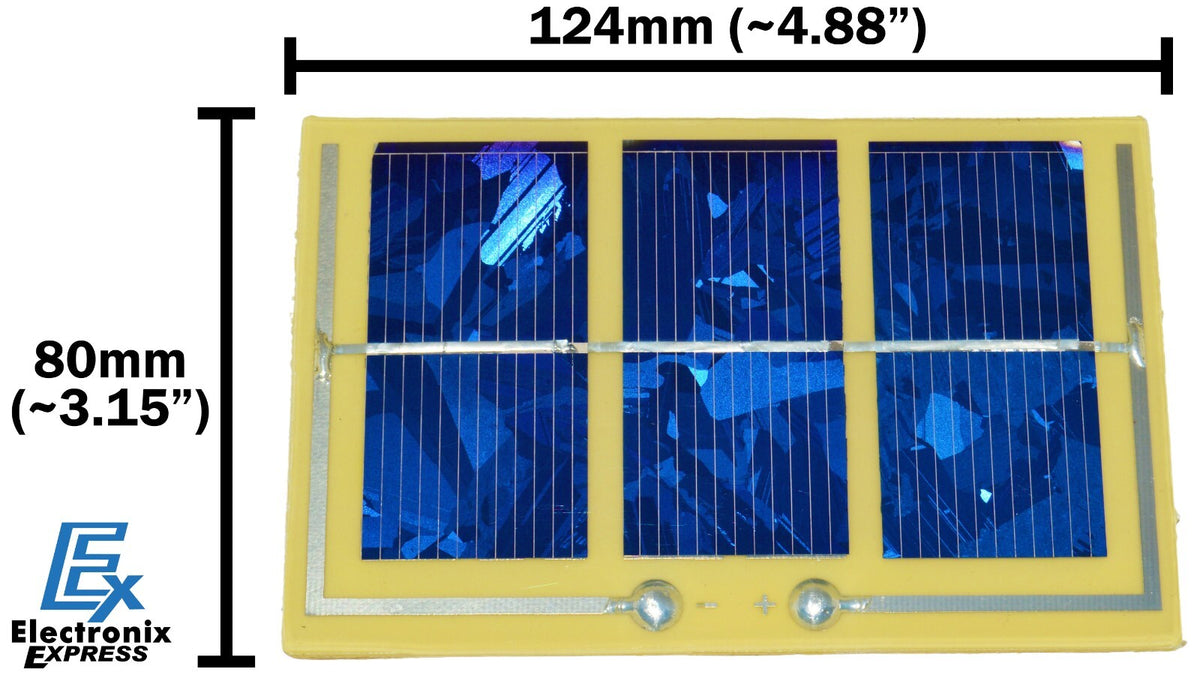

  • Dimensions: 80mm x 124mm (~3.15" x ~4.88")
  • Thickness: 2.5mm (approximate)
  • Voltage: 1.5 V
  • Current Isc (typ): 500mA
  • Weight: 1.53 ounces
• Motor Specifications:

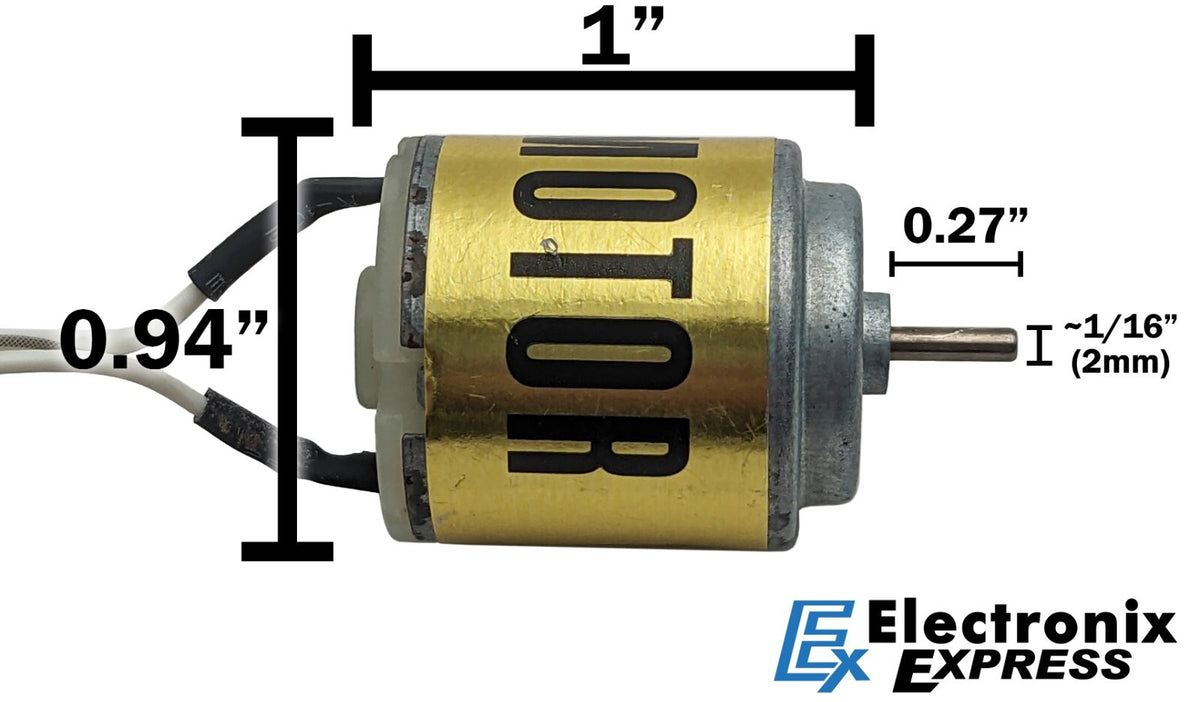

  • Body Dimensions:
    • Diameter: 0.94"
    • Length: 1.0" (not including shaft)
  • Shaft Dimensions
    • Diameter: 2mm (approximately 1/16 inch)
    • Length: 0.27"
  • Output: 1V / 400mA
  • Weight: 1.18 ounces (including leads)
  • Wire Leads Length: 3.2 Feet (38.5")
