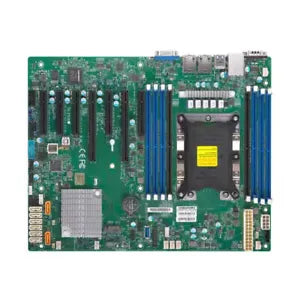

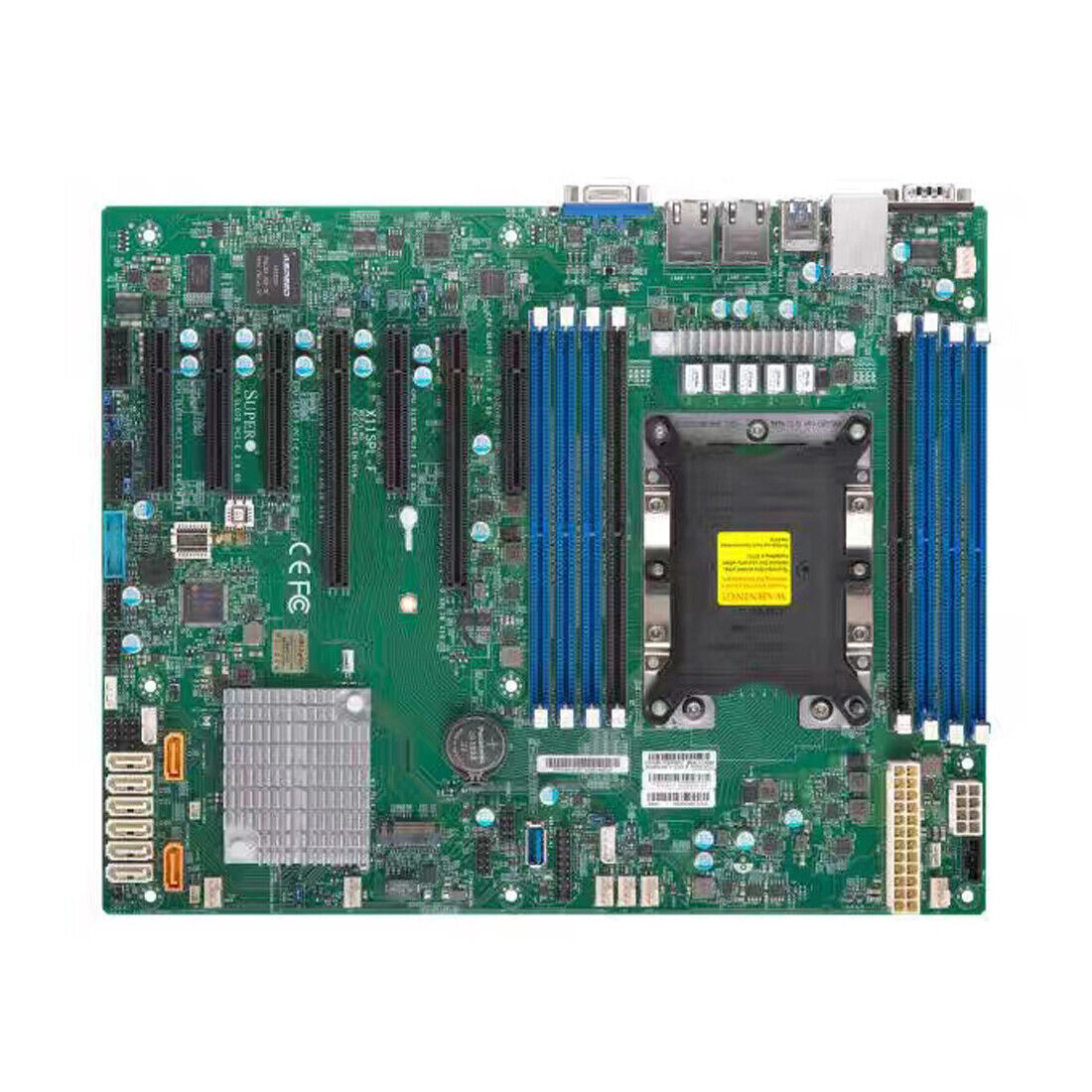

Supermicro X11SPL-F Intel Xeon Scalable LGA 3647 ATX Mainboard C621 Motherboard

Supermicro X11SPL-F Intel Xeon Scalable LGA 3647 ATX Mainboard C621 Motherboard

$464.10 USD
$469.35 USD $464.10 USD
Sale Sold out
Shipping calculated at checkout.
eBay

Supermicro X11SPL-F Intel Xeon Scalable LGA 3647 ATX Mainboard C621 Motherboard


  • Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
  • Intel® C621 Chipset
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots
  • Expansion slots:
  • 2 PCI-E 3.0 x8 (in x16),
  • 4 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x4 (in x8)
  • 2 GbE LAN ports
  • 8 SATA3 (6Gbps) ports
  • I/O: 1 VGA, 2 COM, TPM header
  • 2 SuperDOM with built-in power
  • 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)
  • M.2 NGFF connector
  • M.2 Interface: PCI-E 3.0 x4 and SATA
  • Form Factor: 2280, 22110
  • Key: M-Key
  • Double Height Connector

Main Specifications
Form Factor ATX

















































Device Type Motherboard

















































Dimensions (WxDxH) 12" x 9.6" (30.48cm x 24.38cm)

















































Processor
Compatible Processors Intel Xeon Processor Scalable Family

















































Processor Sockets Single Socket P (LGA 3647) supported, CPU TDP support 165W

















































Cache/Cores Up to 28 cores

















































System Memory
Memory Capacity 8x 288-pin DDR4 DIMM slots


















































Up to 1TB ECC 3DS LRDIMM


















































Up to 512GB ECC LRDIMM


















































Up to 256GB ECC RDIMM

















































Memory Type 2666/2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit 288-pin RDIMM/LRDIMM

















































DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB


















































LRDIMM: 32GB, 64GB


















































3DS LRDIMM: 64GB, 128GB

















































Memory Voltage 1.2V

















































Error Detection Corrects single-bit errors

















































On-Board Devices
Chipset Intel C621

















































SATA Intel C621 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10

















































IPMI ASPEED AST2500

















































Network Controllers Dual LAN with 1GbE with Intel I210

















































Graphics Aspeed AST2500 BMC

















































Input / Output
USB 8 USB 2.0 ports (2 rear + 6 via header(s))


















































5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)

















































VGA 1 VGA port

















































Serial Port / Headers 2 COM Ports (1 rear, 1 header(s))

















































TPM TPM Header

















































Expansion / Connectivity
Expansion Slots Total (Free) PCI-E: 2 PCI-E 3.0 x8 (in x16 slot)


















































PCI-E: 4 PCI-E 3.0 x8


















































PCI-E: 1 PCI-E 3.0 x4 (in x8 slot)


















































M.2: Interface: PCIe 3.0 x4 and SATA


















































M.2: Form Factor: 2280, 22110

















































System BIOS
BIOS Type AMI UEFI

















































BIOS Features ACPI 6.0, RTC (Real Time Clock) Wakeup, SMBIOS 3.0 or late

















































Management
Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor 5, Watchdog

















































Power Configurations ACPI Power Management


















































Power-on mode for AC power recovery

















































Environmental Standards
Non-operating Temperature -40°C - 70°C (-40°F - 158°F)

















































Operating Relative Humidity 8% - 90% (non-condensing)

















































Non-operating Relative Humidity 5% - 95% (non-condensing)

















































Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

















































PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT

















































FAN 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control

















































Temperature CPU thermal trip support, PECI

















































LED CPU / System Overheat LED


















































UID/Remote UID


















































Suspend static indicator LED

















































Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL

















































Parts List
Motherboard MBD-X11SPL-F

















































Included Accessories Motherboard Quick Reference Guide

















































I/O Cables 6x CBL-0044L

















































I/O Shield 1x MCP-260-00042-0N
