Fantastic assortment of our most
popular types of test leads. Perfect for the classroom or workbench at home or shop. Commonly used leads that everybody, no matter how careful, eventually needs a replacement of.

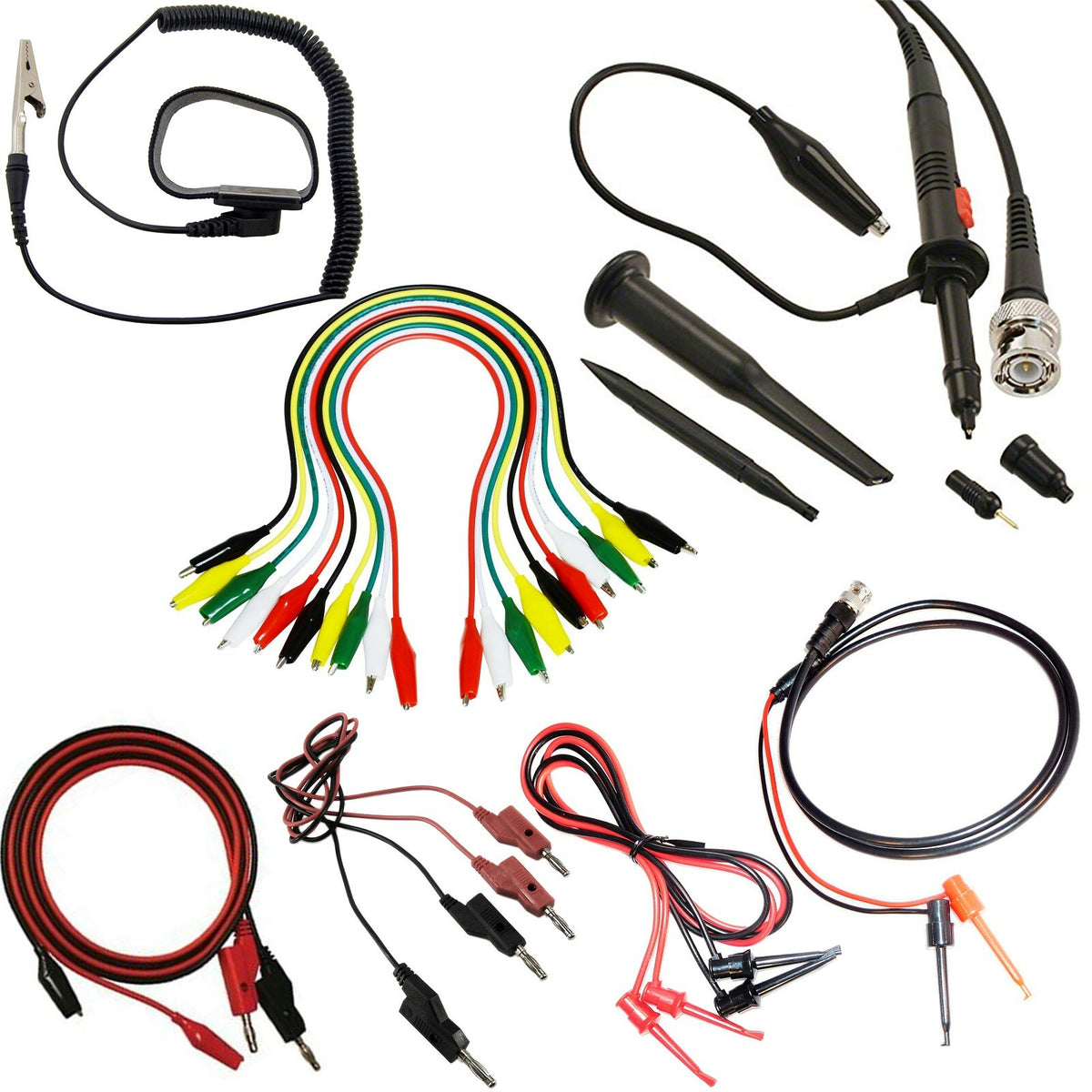

Includes:

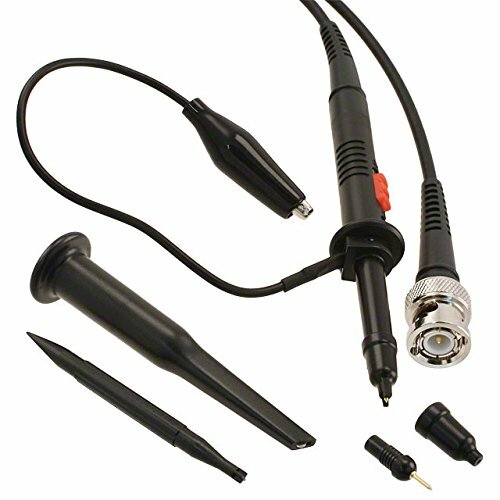

05SPAK220 - High impedance oscilloscope probe with selectable X1 (Bandwidth DC to 6MHz), X10 (Bandwidth DC to 60MHz) switch

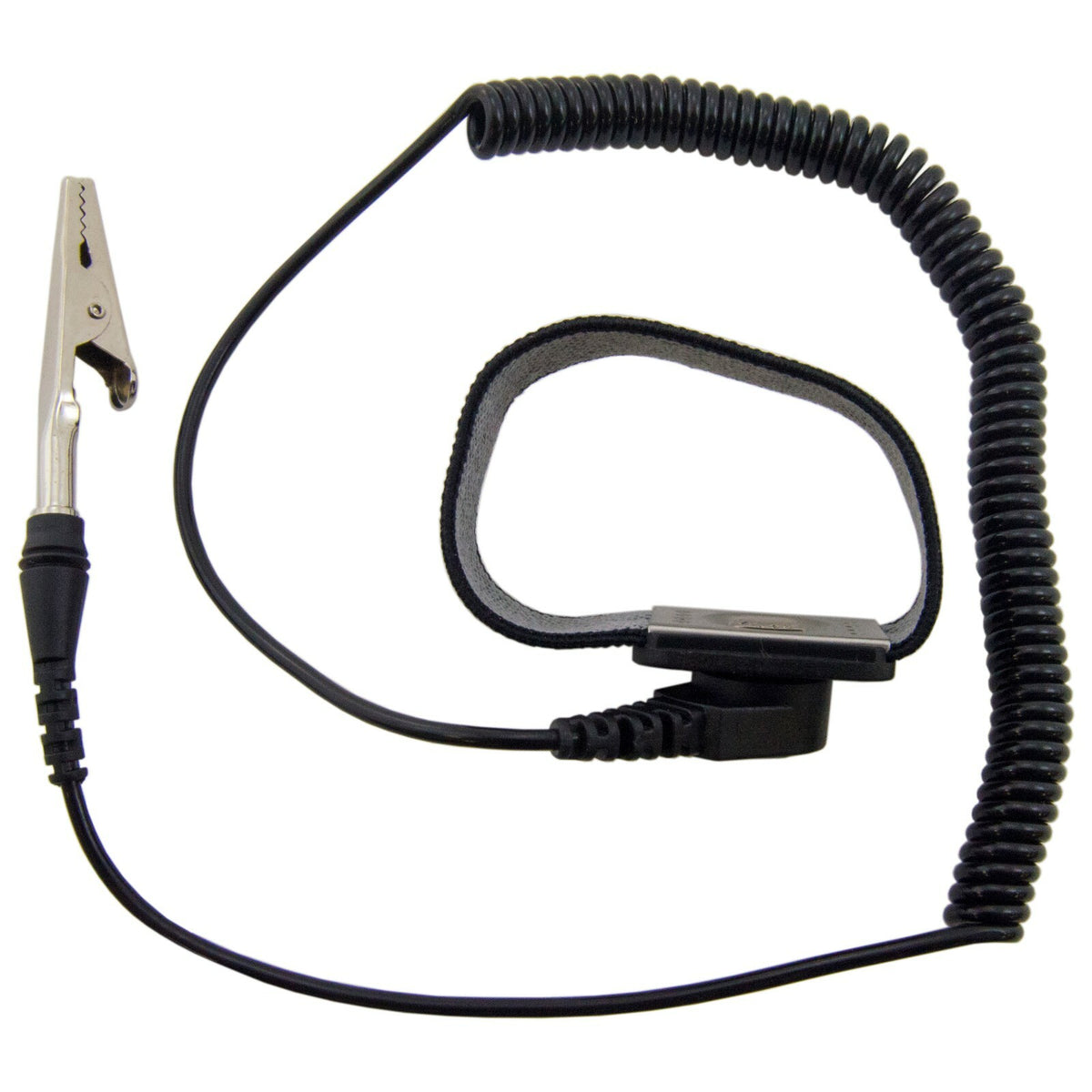

0302-BWS150 - 6' Anti-static wrist strap (band stretches to fit most wrist sizes)

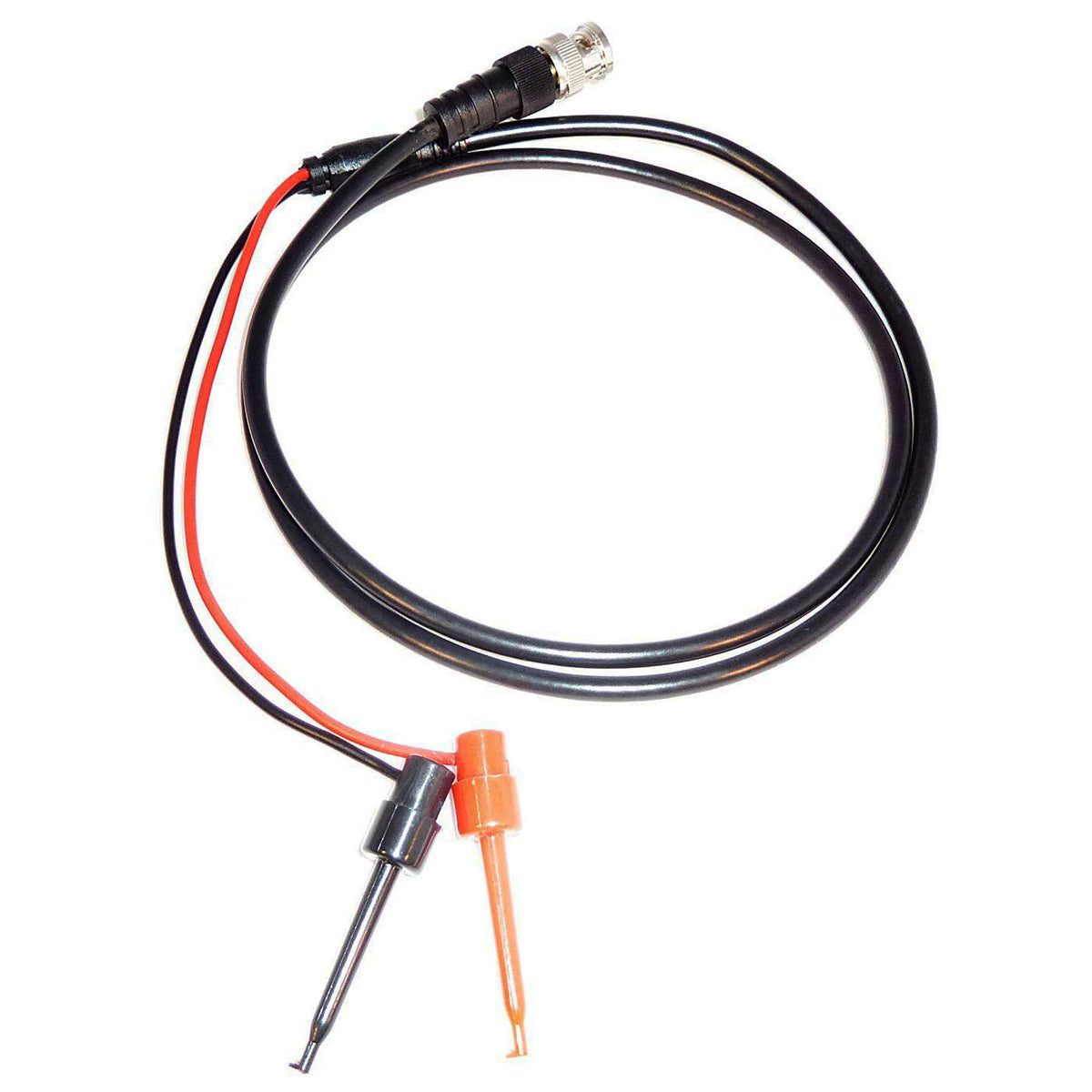

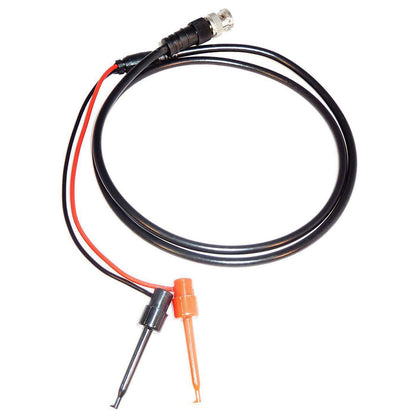

05SPAT1 - BNC to IC Test Hook, 36" Long Coax Cable

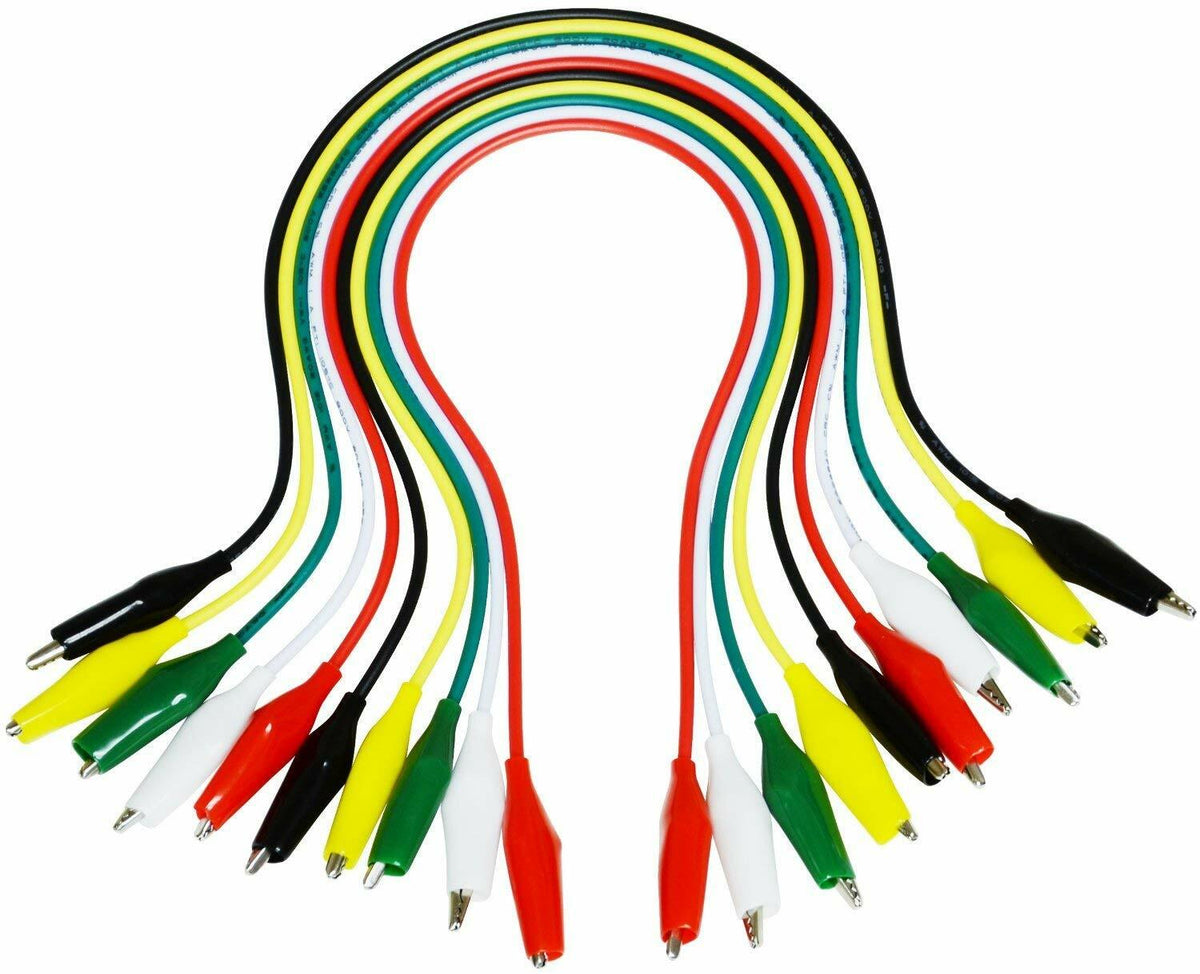

05ALS1 - 10 Piece Alligator Test Lead Set, 20" Long (5 colors, 2 of each color)
05ALS3 - Banana to Alligator Test Lead Set (1 red, 1 black), 36" Length
05ALS4 - Banana to Banana Test Lead Set (1 red, 1 black), 36" Length
05ALS6 - IC Hook to IC Hook Test Lead Set (1 red, 1 black), 36" Length

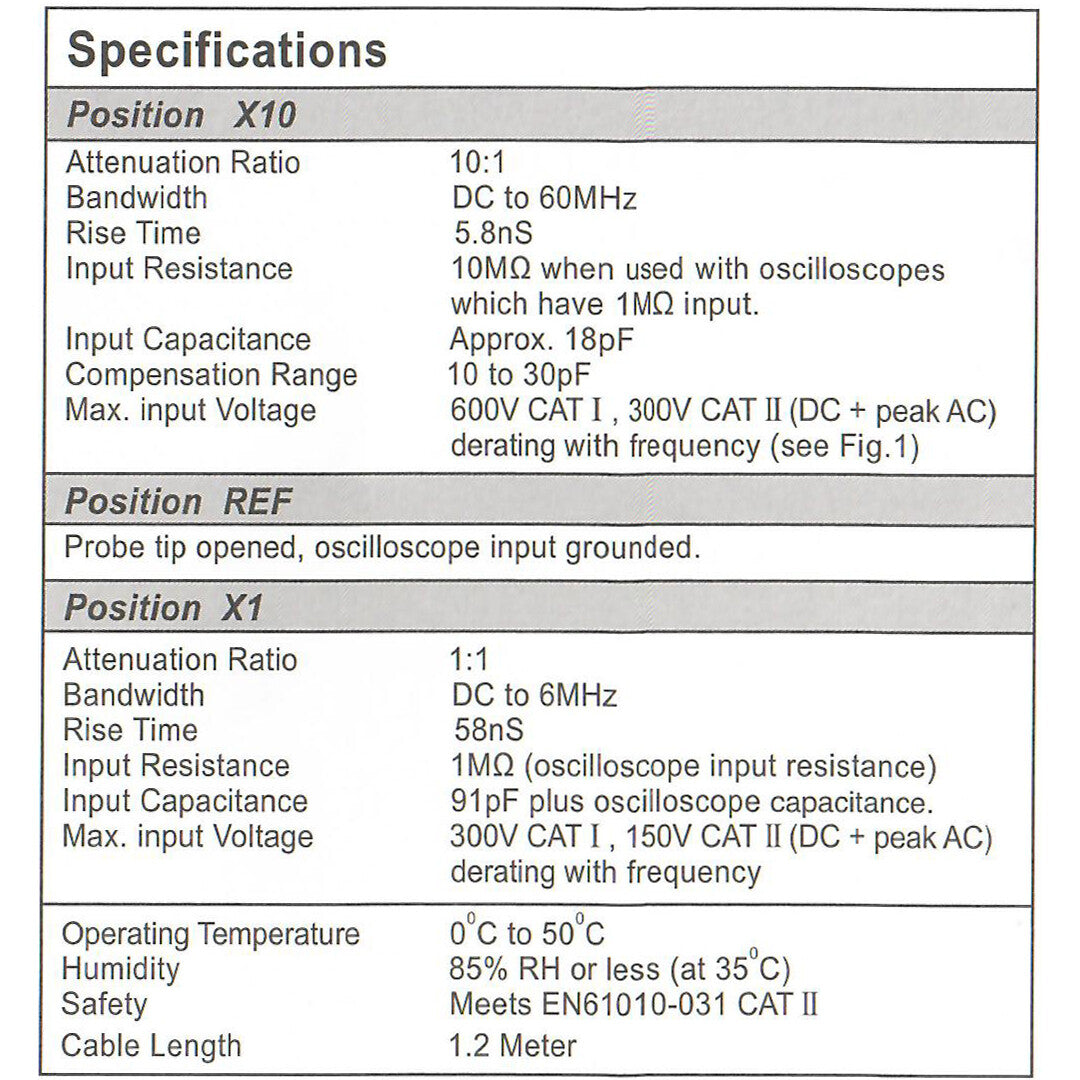

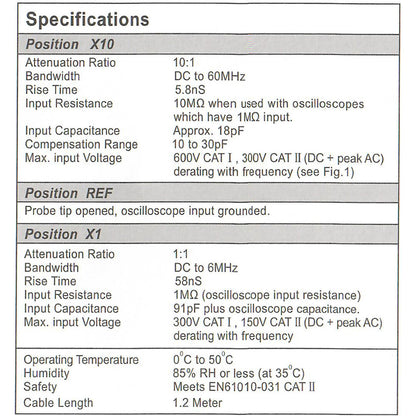

Scope probe comes with spring hook, ground lead, insulating tip, measuring tip, IC tip, adjusting tool, and channel identifier clips. It is designed and calibrated for use with instruments having an input impedance of 1M ohm shunted by 20pF; however, it may be compensated for use with instruments having an input capacitance of 10 to 30pF. The probe incorporates a three position slide switch in the head which selects attenuation of x1, x10, or a ground reference position.
