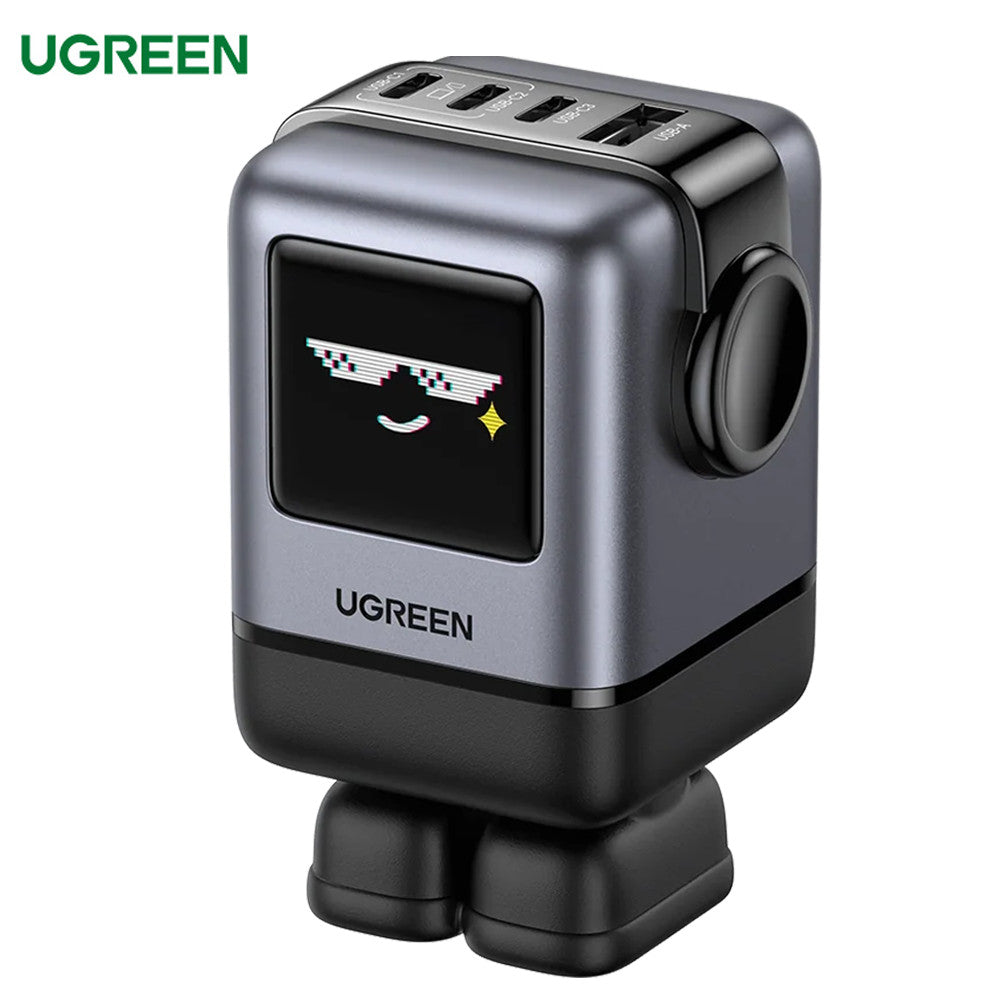

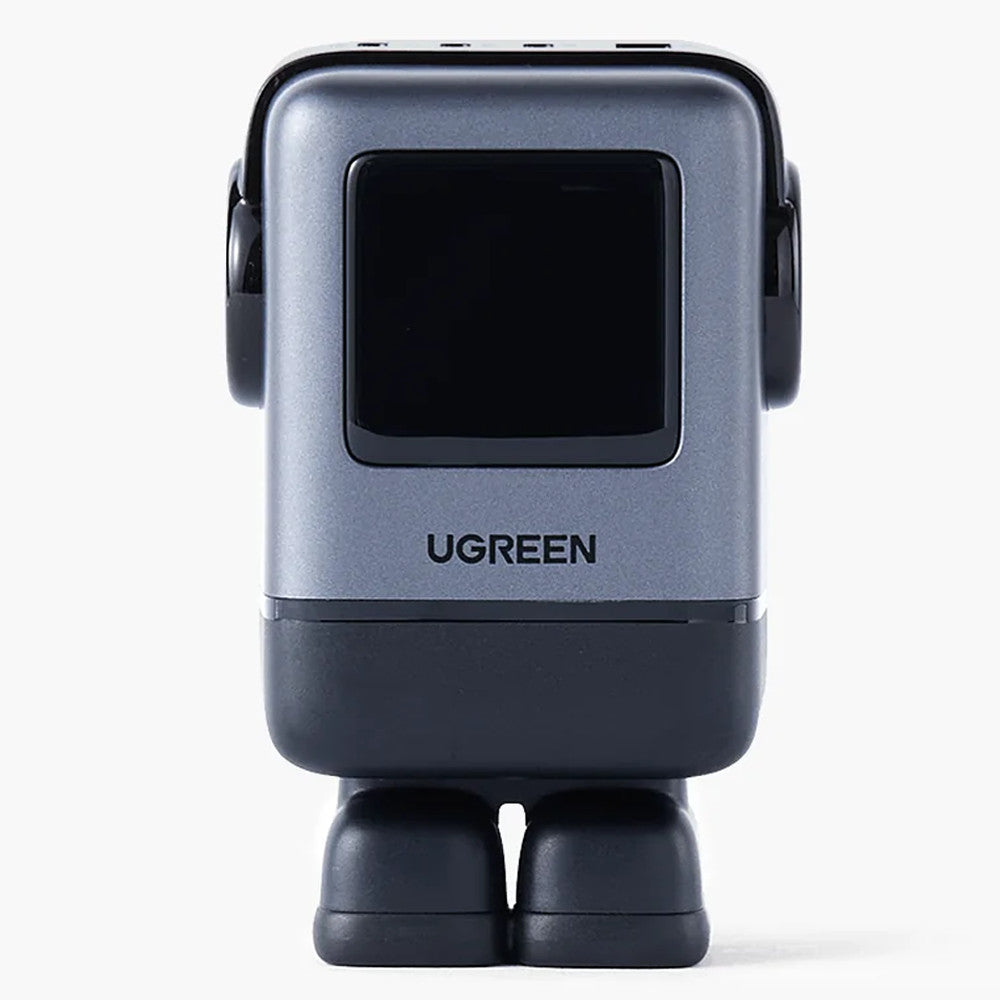

UGREEN Uno 100 W USB‑C GaN Charger (3×C + 1×A)

Robot TFT Face / 100 W Single‑Port / GaNInfinity™ / ThermalGuard™ / Foldable / Magnetic Feet

Compatible Product

Package Contents

• 1 × UGREEN Uno 100 W 4‑Port GaN Charger

• 1 × User Manual

Product Overview

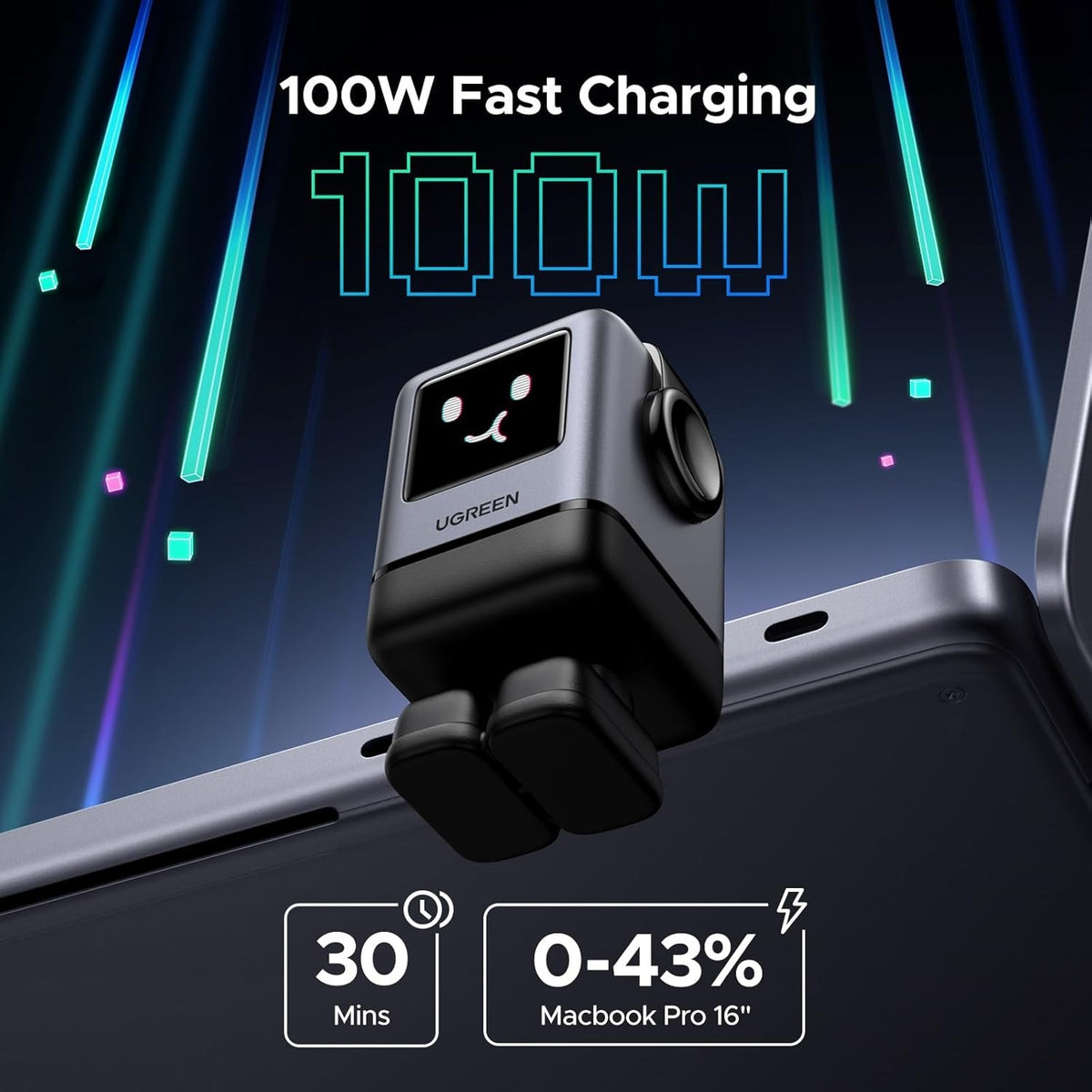

The UGREEN Uno 45648 is the charger that stopped being a brick and became a desk pet. Behind the robot face is a serious GaNInfinity™ 100 W power plant: C1/C2 push 100 W solo for a 16″ MacBook Pro (0→43 % in 30 min), while C3 and A feed phone + buds. Total budget is 100 W shared, split by smart IC. A TFT screen shows a smile, a charging glyph, or a full‑battery wink depending on state. Magnetic feet stick it to a laptop lid; foldable pins tuck away for travel. It’s the 100‑240 V global adapter for people who hate boring adapters.

Key Features

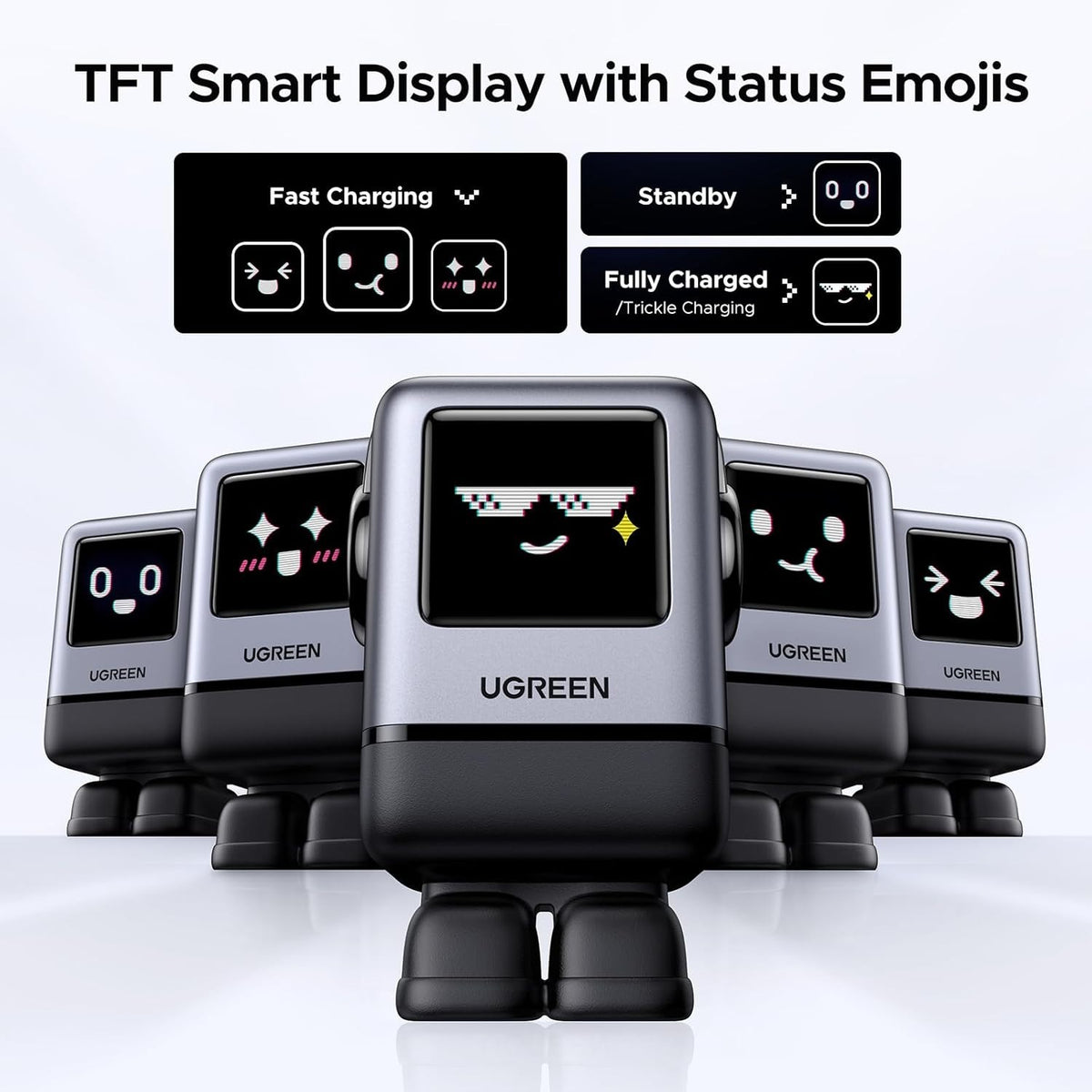

Robot Shell + TFT Mood Screen

• Mini‑robot head with color TFT (upgraded from LED).

• Expressions: idle blink, fast‑charge grin, full‑charge sleepy eye.

• Screen only lights when AC plugged in.

• Bottom magnetic feet → clips to metal laptop lid, won’t slide off desk.

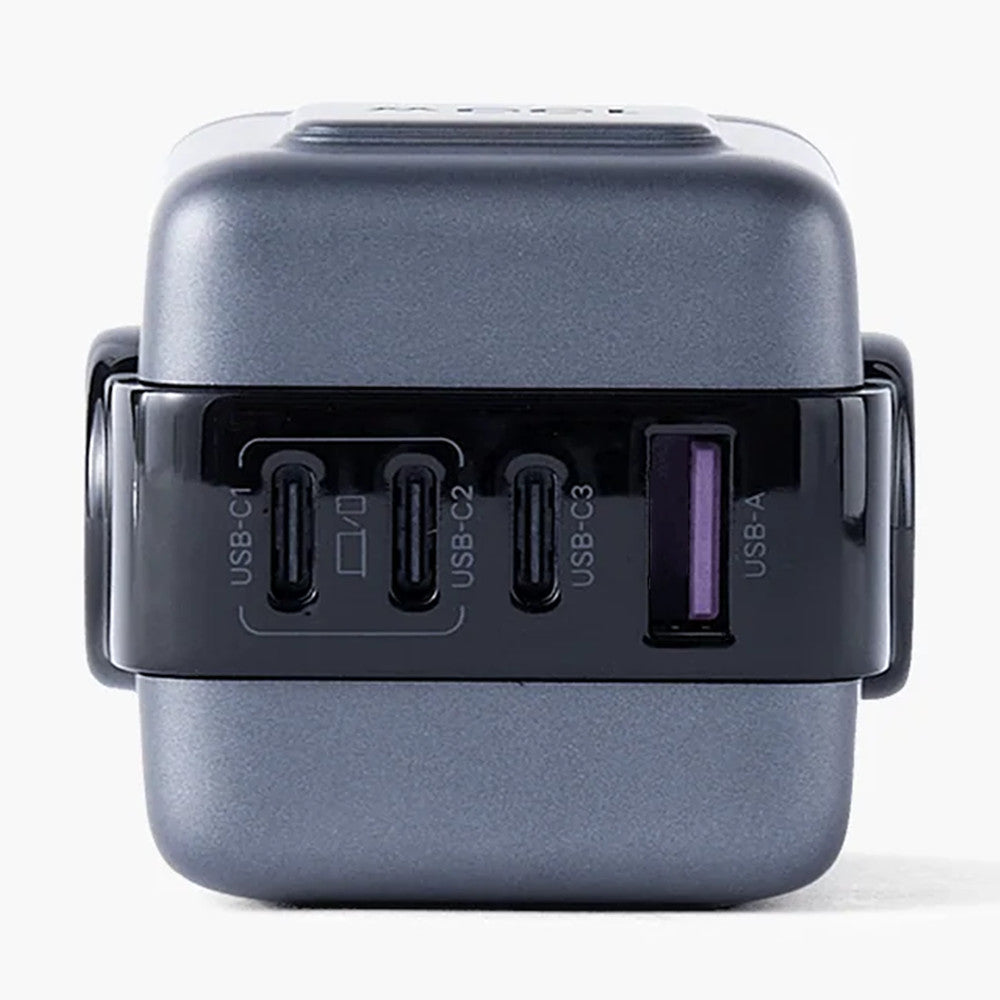

100 W GaN, 3C1A

• C1 / C2: up to 100 W each (20 V/5 A) when used alone.

• C3: up to 22.5–30 W.

• A: up to 22.5 W (QC/SCP/FCP/AFC).

• Total cap: 100 W shared across all ports.

• Example split: 65 W laptop + 22.5 W phone + 10 W watch + trickle earbuds.

️ ThermalGuard™ + 8‑Layer Safety

• 200‑level‑class temp sampling + PWM + sync‑rectifier.

• Over‑voltage / over‑current / over‑load / short / over‑temp / surge.

• GaN runs cooler than silicon sibling chargers.

Protocol Omnivore

• PD3.0, PPS, QC4+/3.0, UFCS, SCP, FCP, AFC, Apple 5 V/2.4 A, BC1.2.

• 100‑240 V AC input → one plug for EU/UK/US/AU (with local pin variant).

Travel‑True

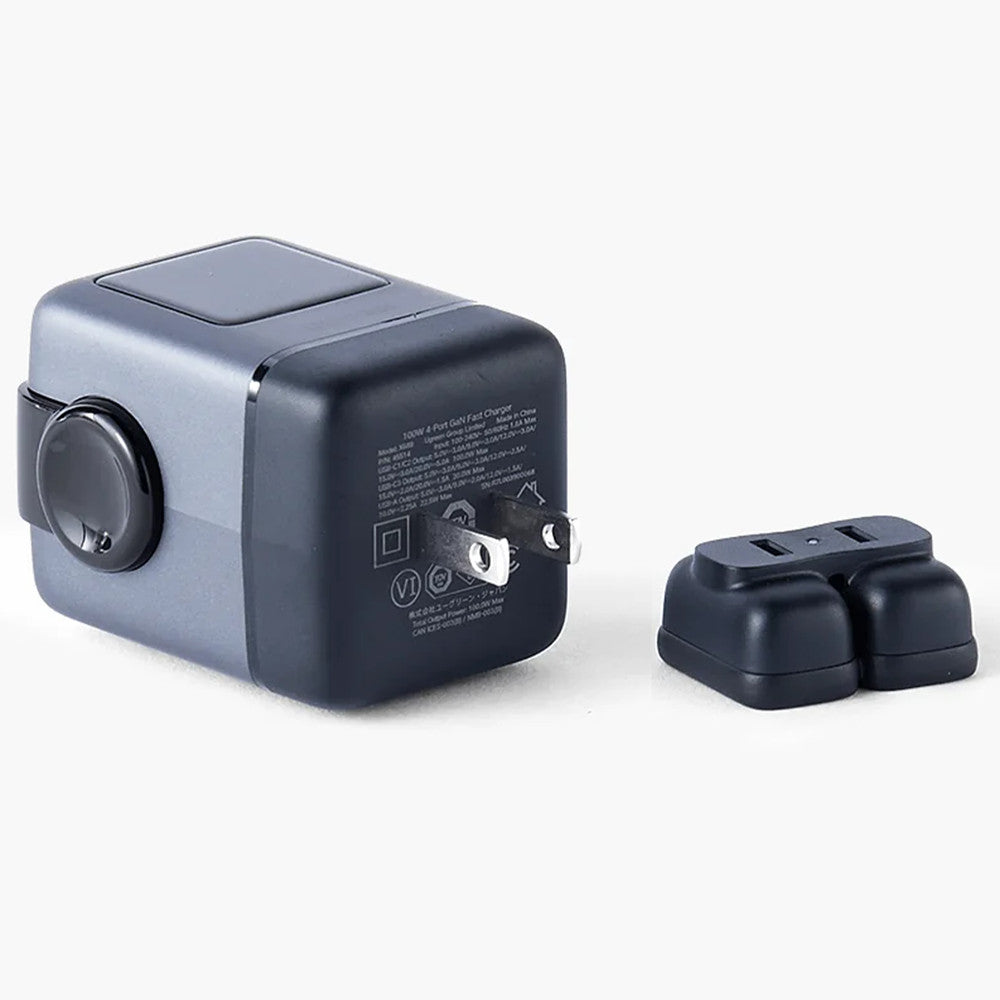

• Foldable mains pins.

• ~437 g, 46.5×47×65 mm — chonky but palm‑sized.

• Replaces 3 separate wall warts.

️ Technical Specifications

Usage Tips

• Max laptop speed: Plug laptop into C1 alone → 100 W. Add phone to C2 → drops to ~65 W+30 W.

• Dell caveat: Some XPS/Latitude cap at 65 W on 3rd‑party PD — expected.

• Magsafe feet: Stick charger to aluminum laptop lid so cable tension doesn’t yank it from wall.

• TFT off? Unplugged = no face. It’s not broken, just asleep.

• C3 vs C1: C3 is the weak C — use it for phone, not laptop.

️ Important Notes

• 100 W is per‑C1/C2 solo only; multi‑port always shares the 100 W pie.

• No VOOC / Dash / Warp / Xiaomi Turbo / Huawei SuperCharge private modes → those fall back to QC/UFCS/PPS.

• TFT expressions are cosmetic; they don’t show watts numerically (no digit readout like power banks).
