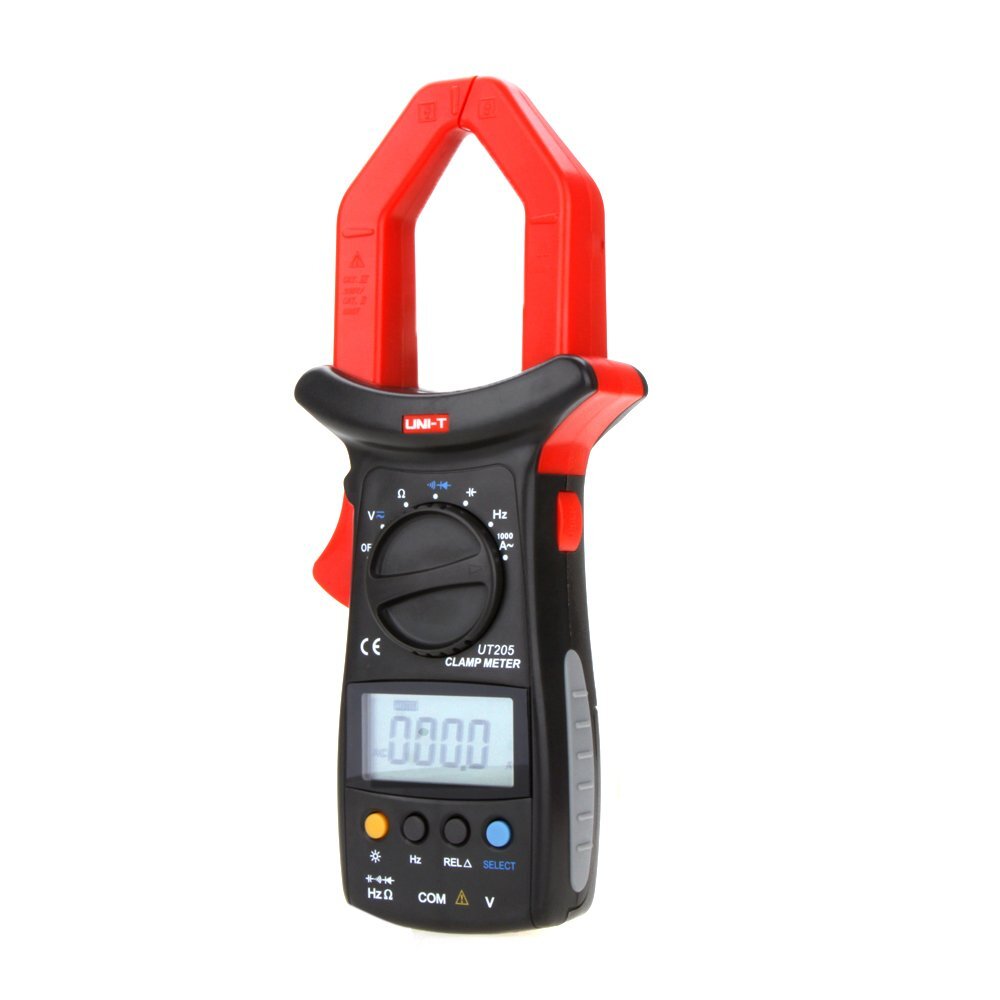

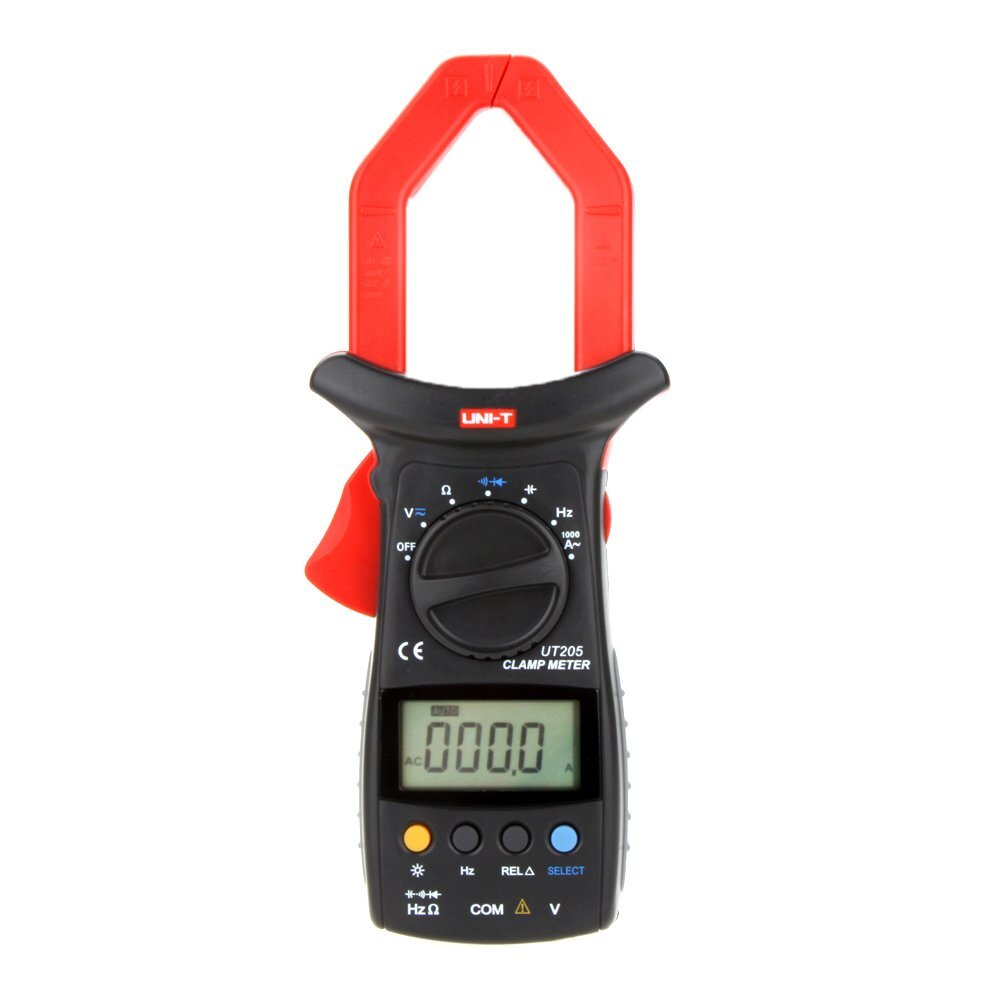

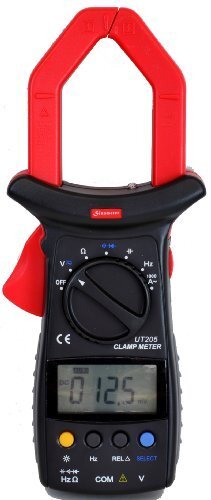

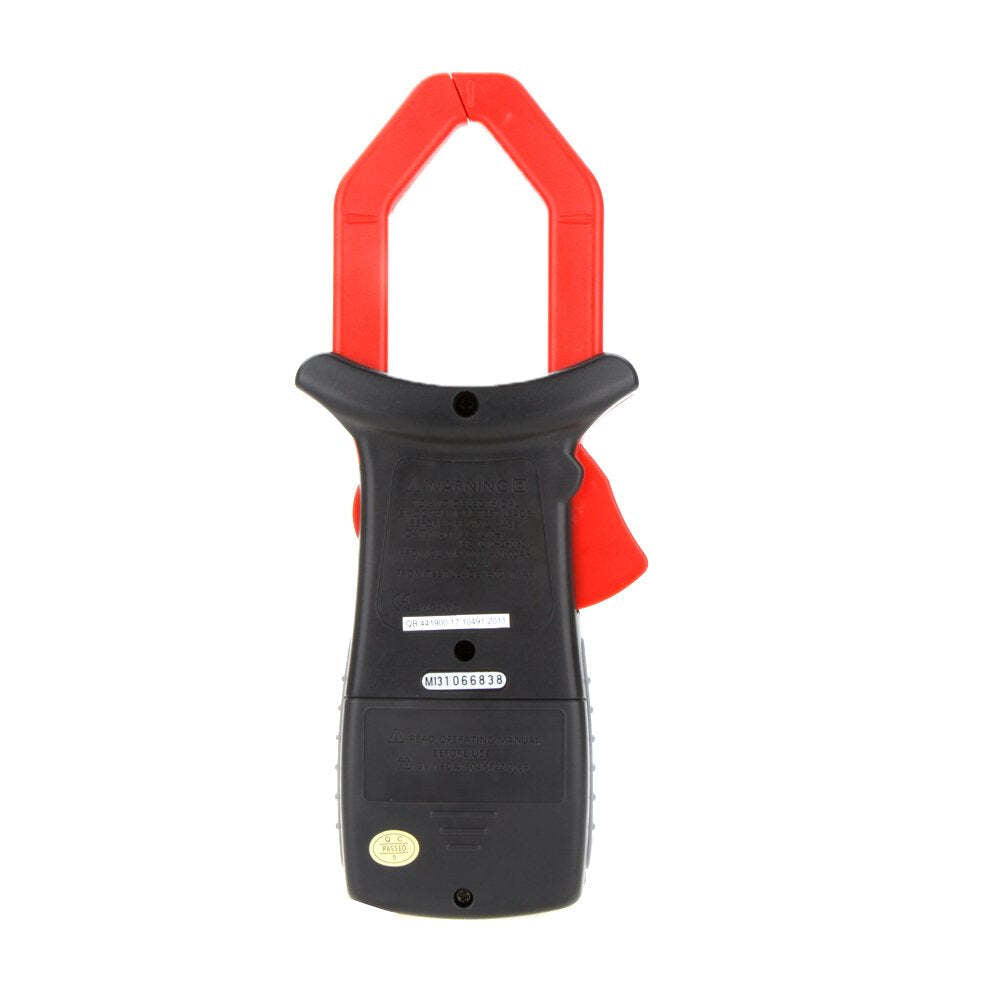

Uni-Trend UT205 Clamp Meter- Back lit LCD w\ AC Current Measurement, 11"x4"x2 ¼"
Uni-Trend UT205 Clamp Meter- Back lit LCD w\ AC Current Measurement, 11"x4"x2 ¼"
Regular price
$92.40 USD
Regular price
$115.50 USD
Sale price
$92.40 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Specifications:
Max. LCD display: 3999
Range selection: auto
DC voltage: 0.4/4/40/400 V ± 0.8%, 600 V ± 1.0%
AC voltage: 4/40/400 V ± 1.2%, 600 V ± 1.5%
AC current: 400A ± 1.5% / 1000 A ± 3.0%
Resistance: 400 ± 1.2%, 4k/40k/400k ± 1.0%, 4 Mohm ± 1.2%,40 Mohm ± 1.5%
Capacitance: 4n ± 5.0%, 40n/400n/4u/40uF ± 3.0% 200uF ± 4.0%,
Frequency range: 10 Hz -10 MHz ± 0.1%
Duty cycle:0.1% -- 99.9%
Diode test: yes
Continuity test: yes
Dimensions 11 x 4 x 2 ¼ inches
Power: 9V 6F22 battery
Weight: 530 grams
Features:
Built-in flashlight for AC current measurement
Data hold
Back-lit LCD screen
Relative measurement
Sleep timer (can be disabled)

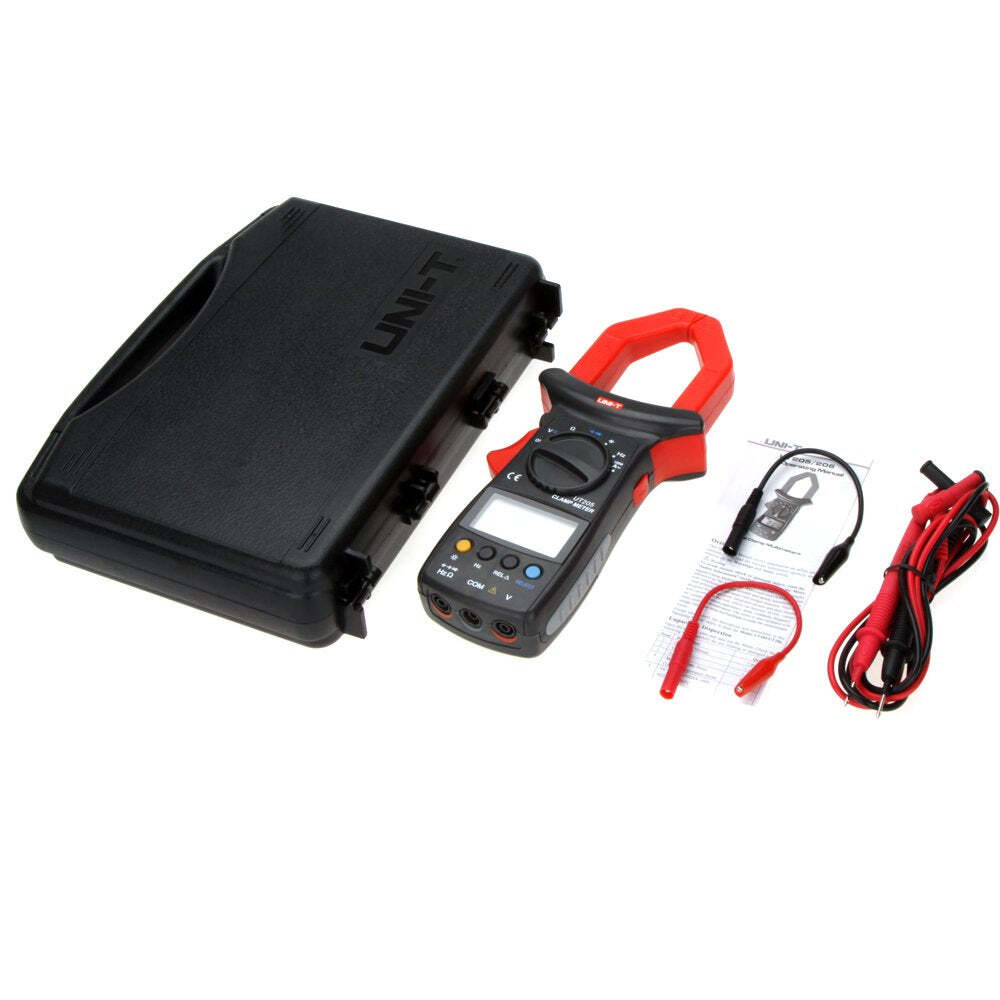

What's in the box:
UT205 clamp meter

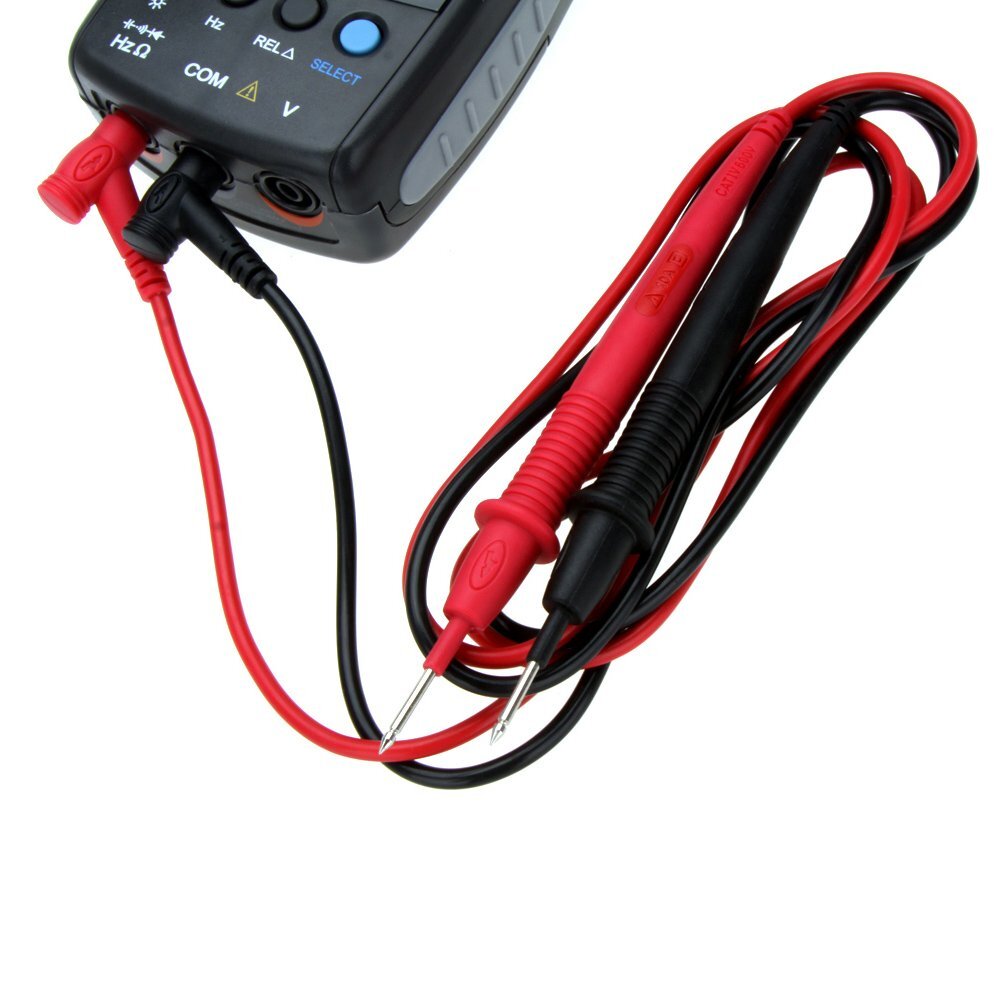

Test leads with probes
9V battery: 1
AAA battery: 1
Test leads with alligator clips
User manual
ABS Carrying case
Max. LCD display: 3999
Range selection: auto
DC voltage: 0.4/4/40/400 V ± 0.8%, 600 V ± 1.0%
AC voltage: 4/40/400 V ± 1.2%, 600 V ± 1.5%
AC current: 400A ± 1.5% / 1000 A ± 3.0%
Resistance: 400 ± 1.2%, 4k/40k/400k ± 1.0%, 4 Mohm ± 1.2%,40 Mohm ± 1.5%
Capacitance: 4n ± 5.0%, 40n/400n/4u/40uF ± 3.0% 200uF ± 4.0%,
Frequency range: 10 Hz -10 MHz ± 0.1%
Duty cycle:0.1% -- 99.9%
Diode test: yes
Continuity test: yes
Dimensions 11 x 4 x 2 ¼ inches
Power: 9V 6F22 battery
Weight: 530 grams
Features:
Built-in flashlight for AC current measurement
Data hold
Back-lit LCD screen
Relative measurement
Sleep timer (can be disabled)
What's in the box:
UT205 clamp meter
Test leads with probes
9V battery: 1
AAA battery: 1
Test leads with alligator clips
User manual
ABS Carrying case
