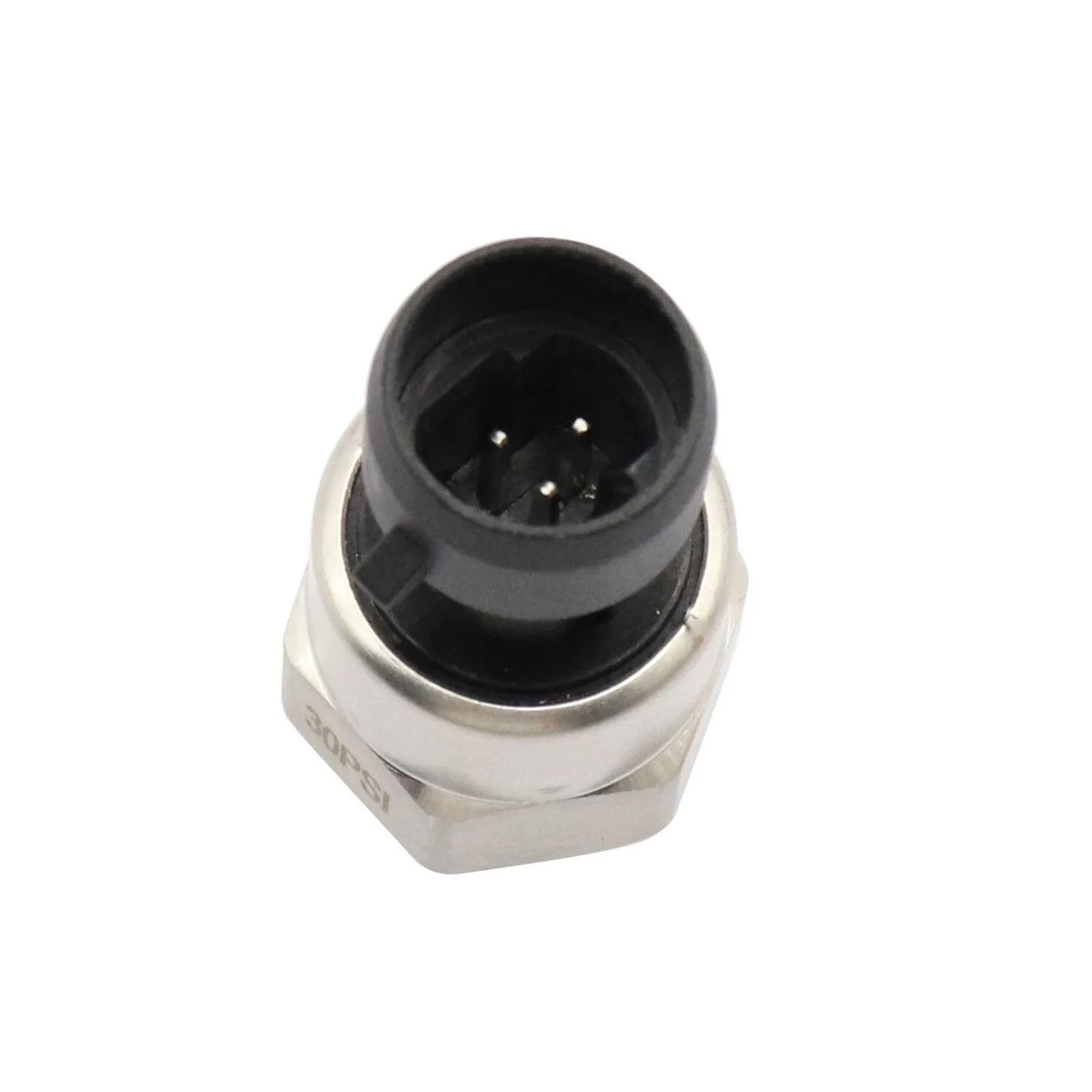

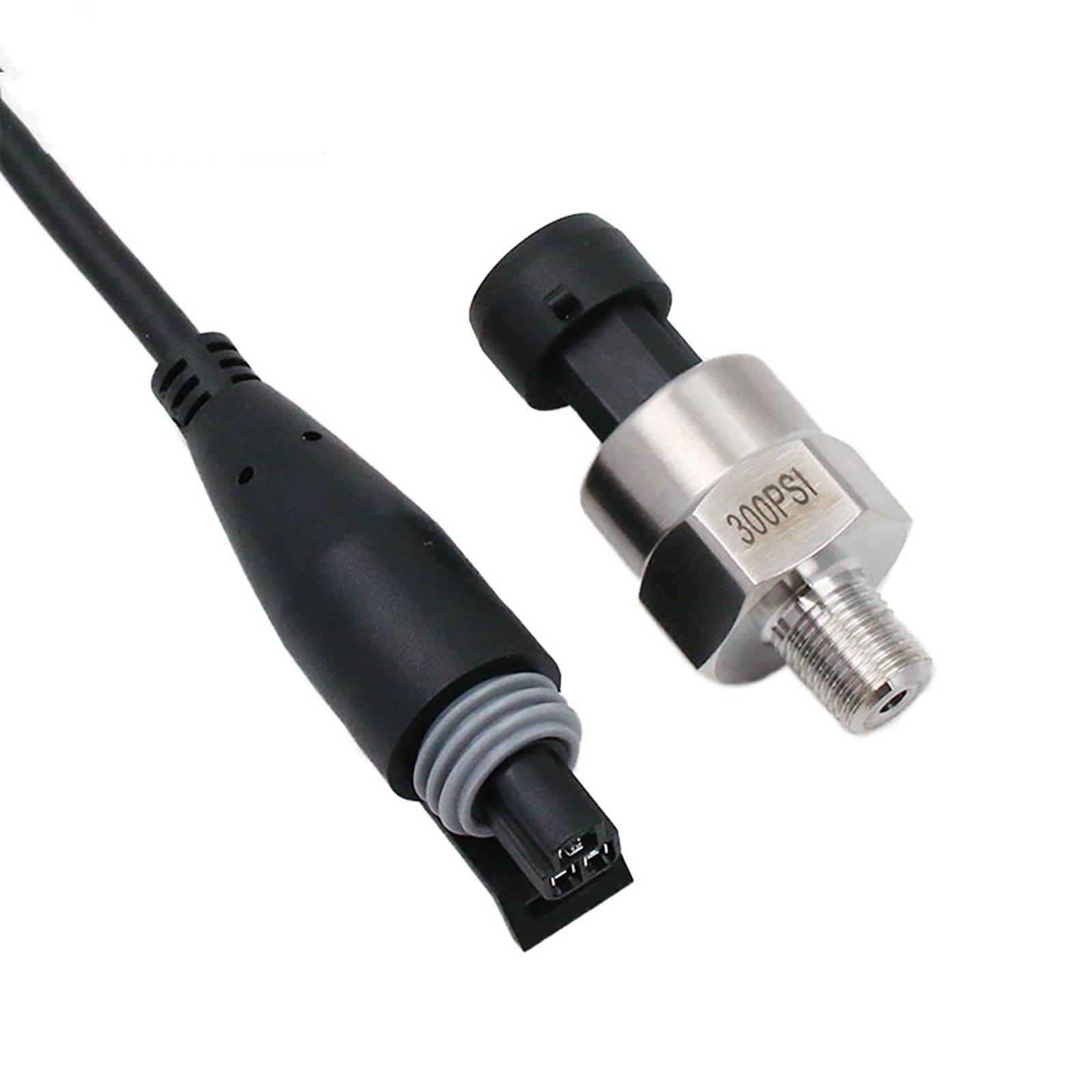

UNIVERSAL 5V PRESSURE TRANSDUCER SENDER 300 PSI OIL FUEL AIR WATER W/ CONNECTOR

Features:
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
Light weight and small size, convenient to install and operate.
It has complete voltage protection function.
Works for oil, fuel, , gas, water, pressure, can be used in oil , gas , etc.

Specifications:
Input: 0-300 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V
Accuracy: +/-0.5%FS

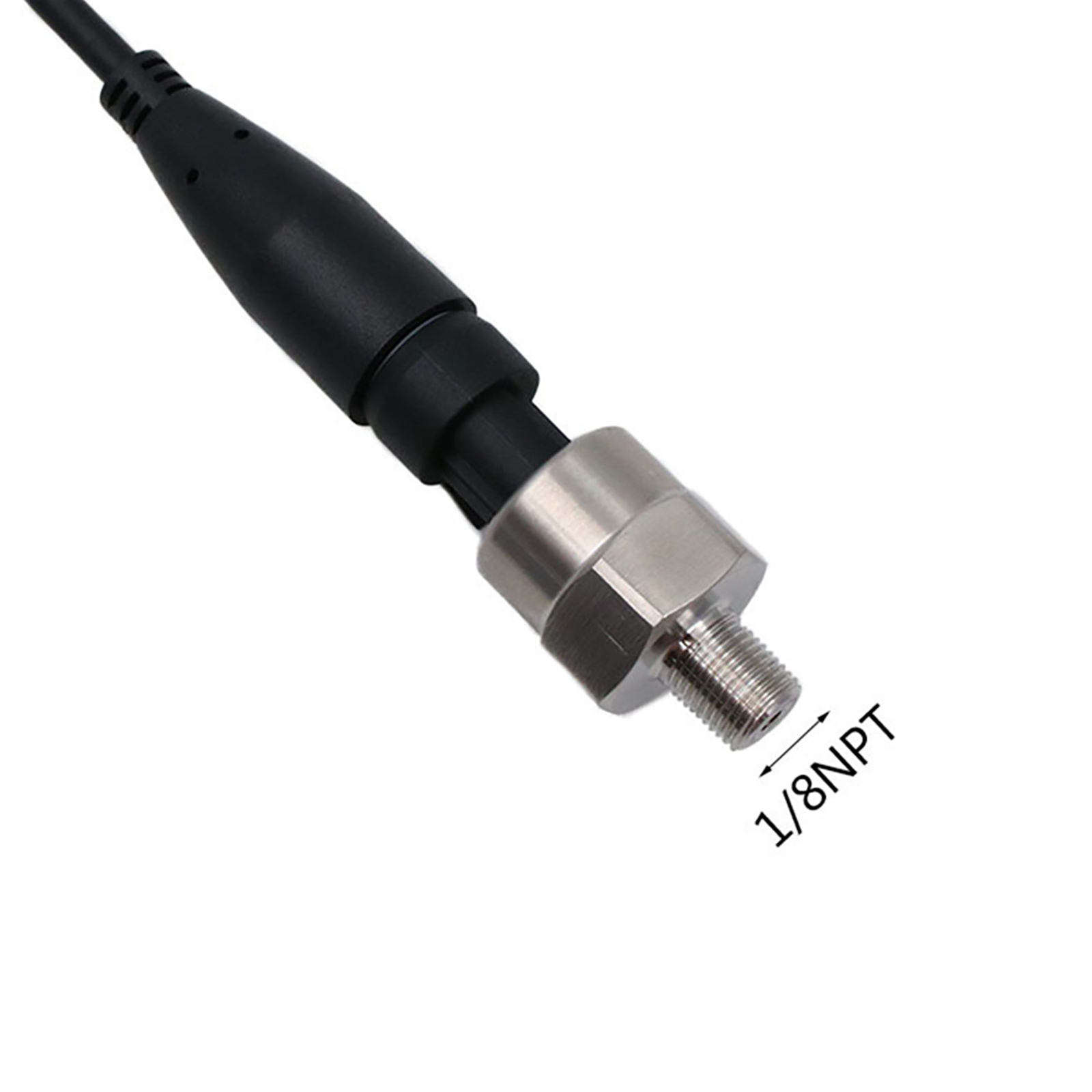

Thread: 1/8" NPT
Wiring: Red: +5V; Black: ground; Green: output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40~+120℃
Compensation Temperature: 0℃~+80℃
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤ (supply power-6.5V/0.02A)Ω
-term stability: Less than 0.1%FS/year
Temperature Effect on : Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Temperature Effect on Sensitivity: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.

Package Includes:

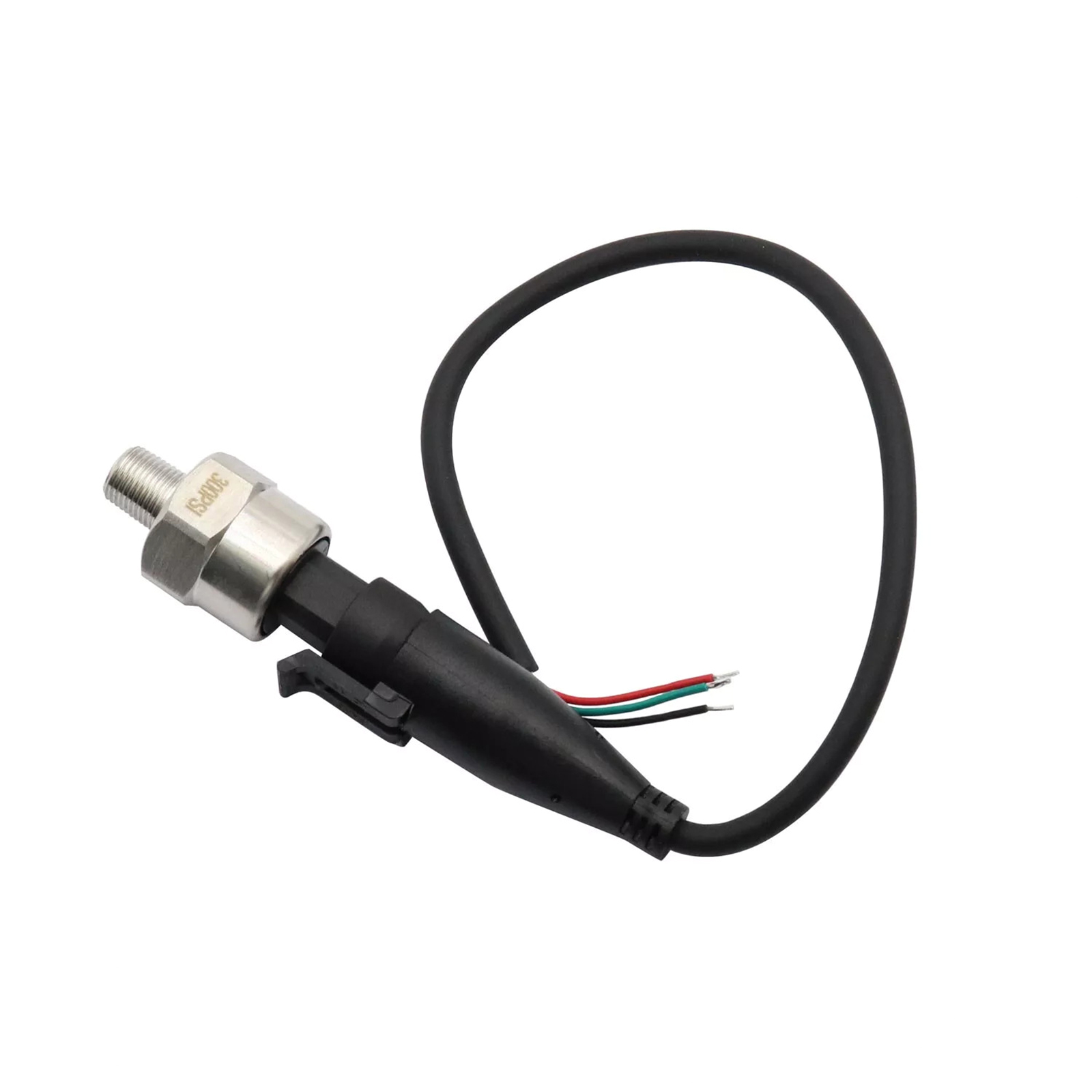

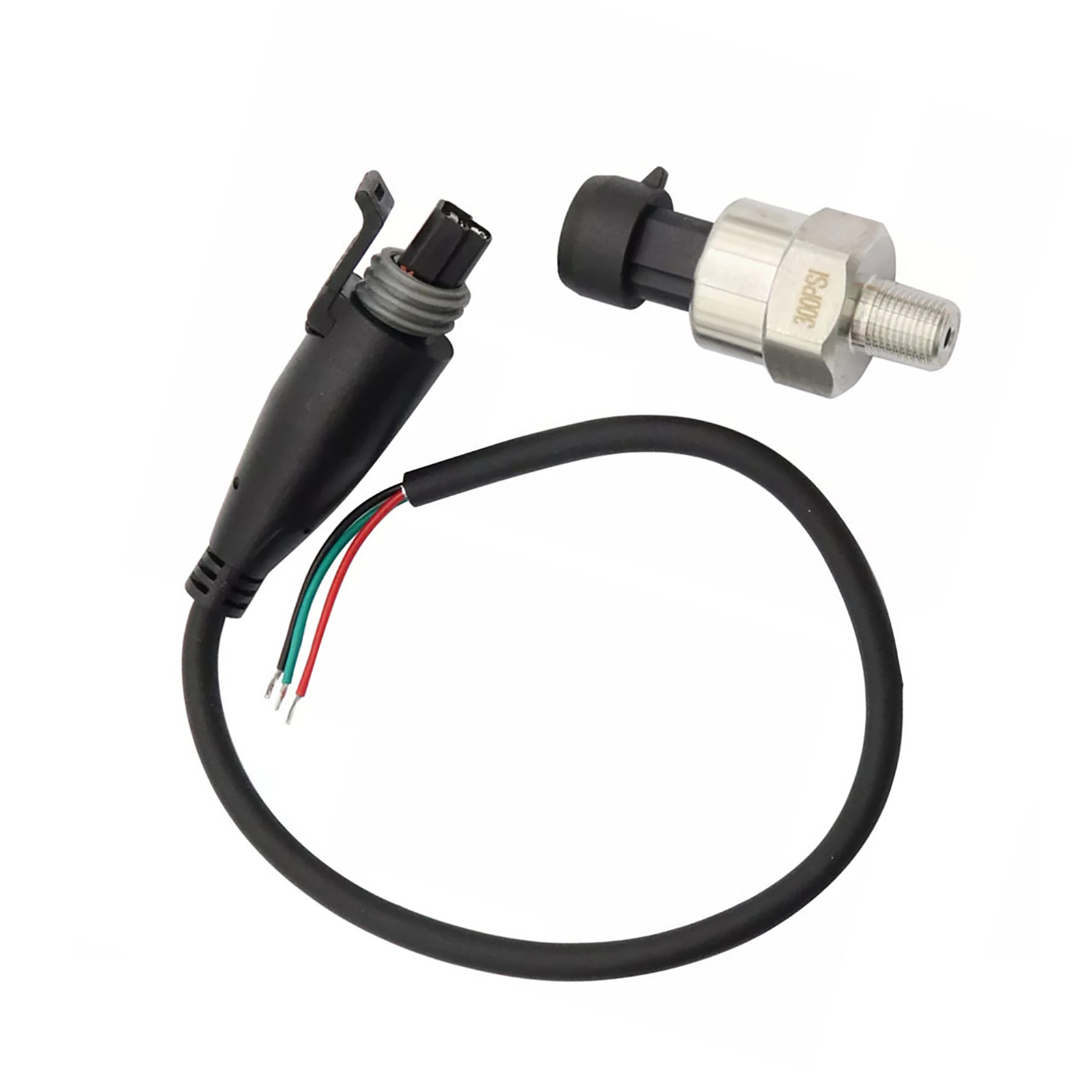

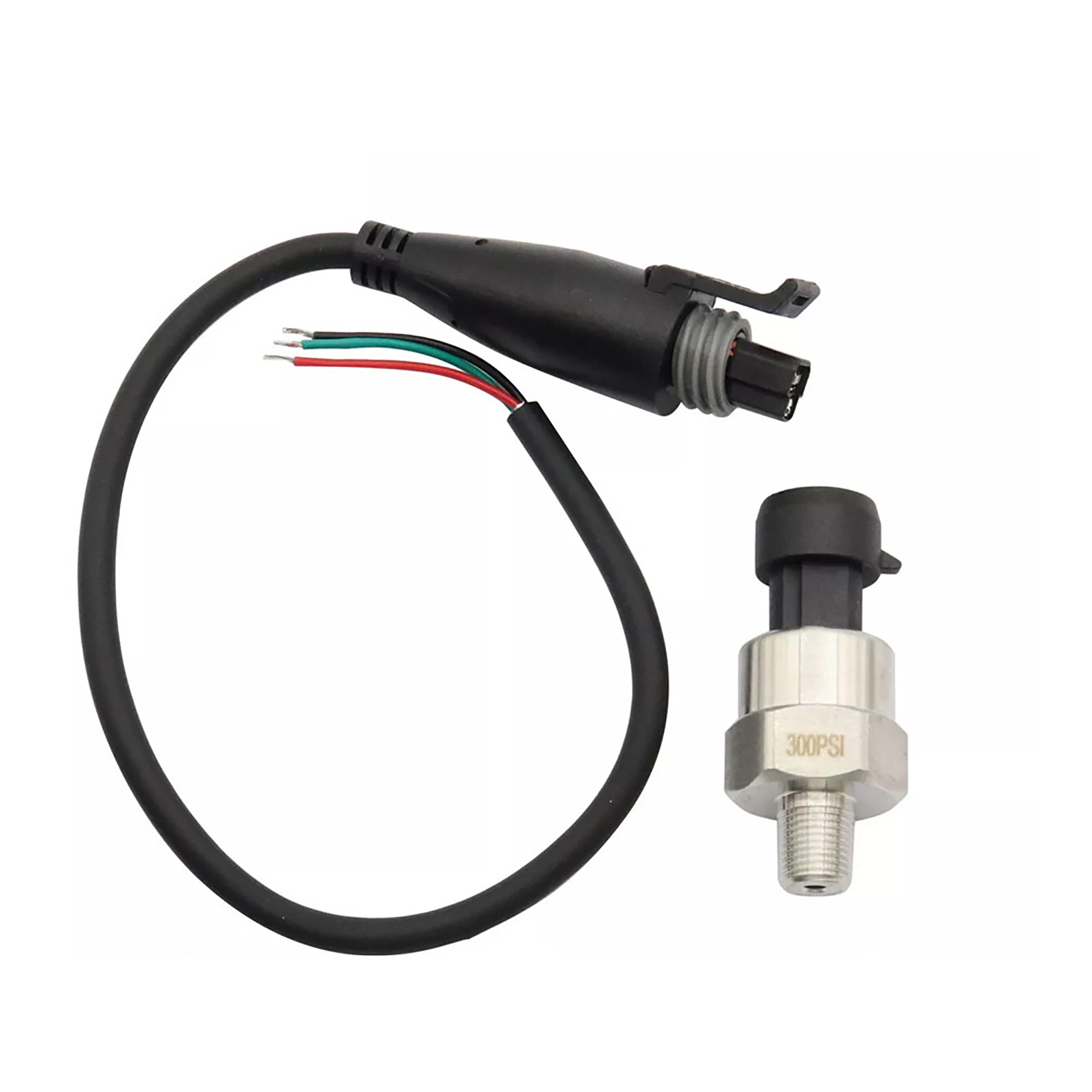

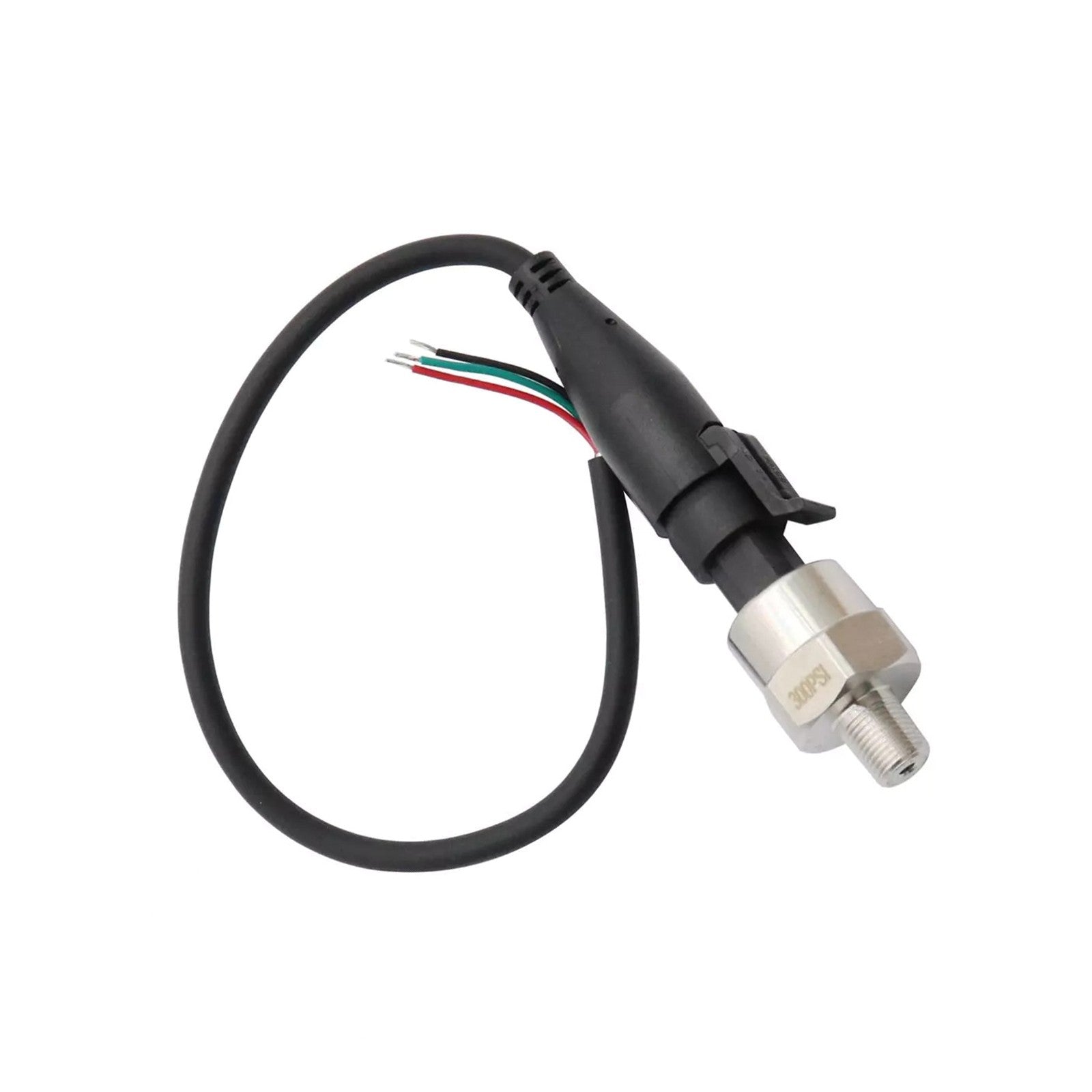

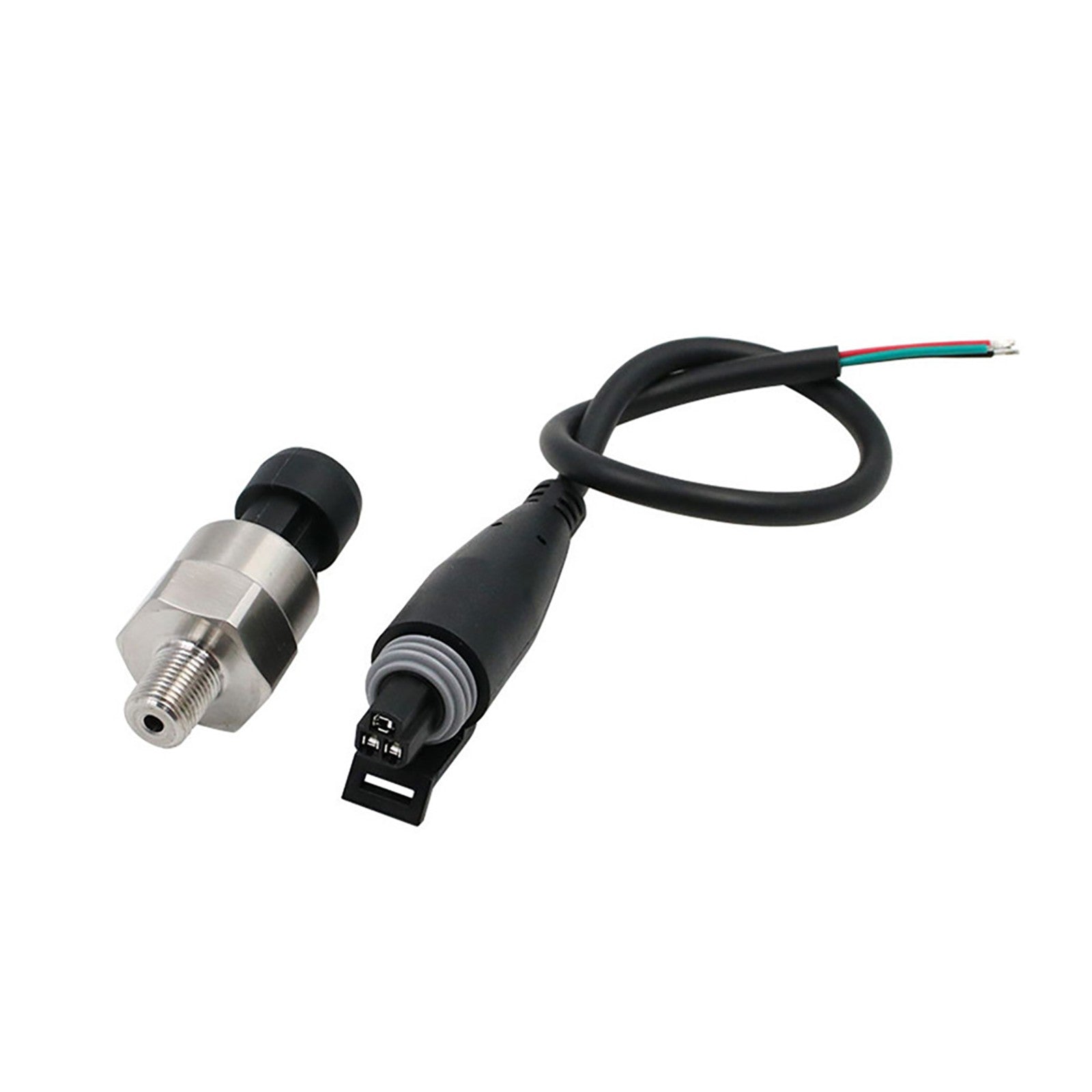

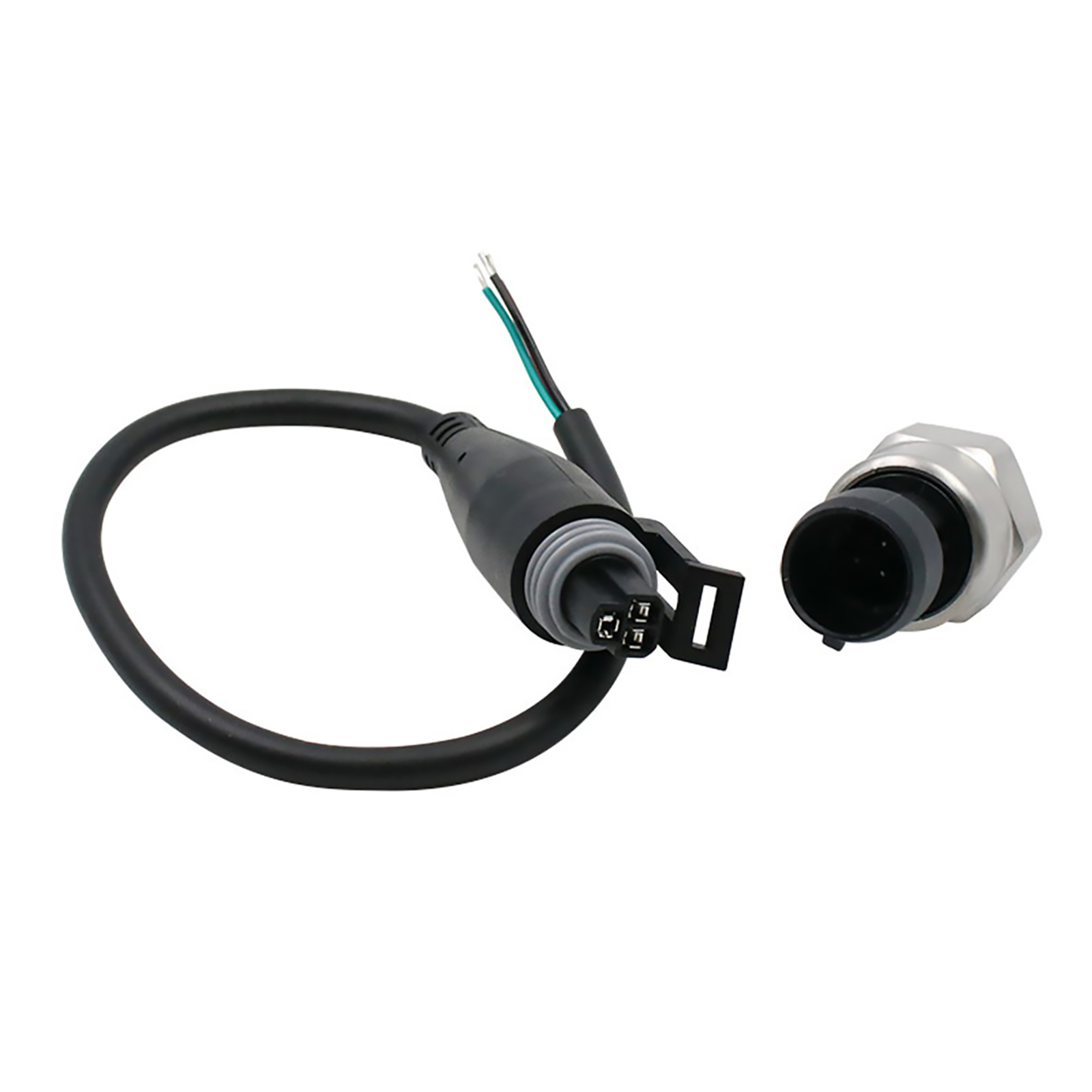

1 x Pressure Transducer (With cable)
