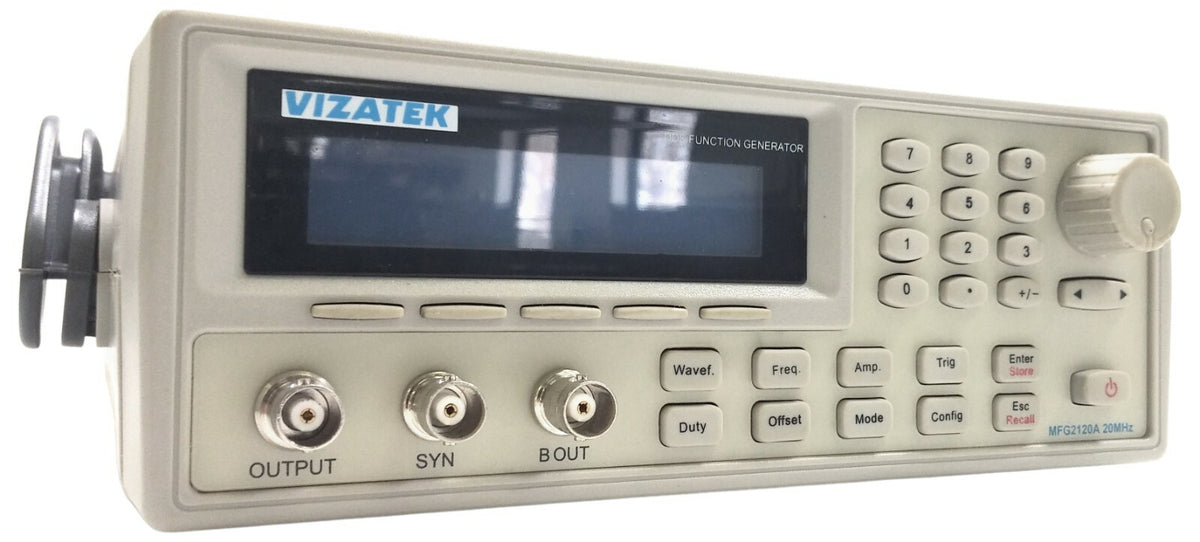

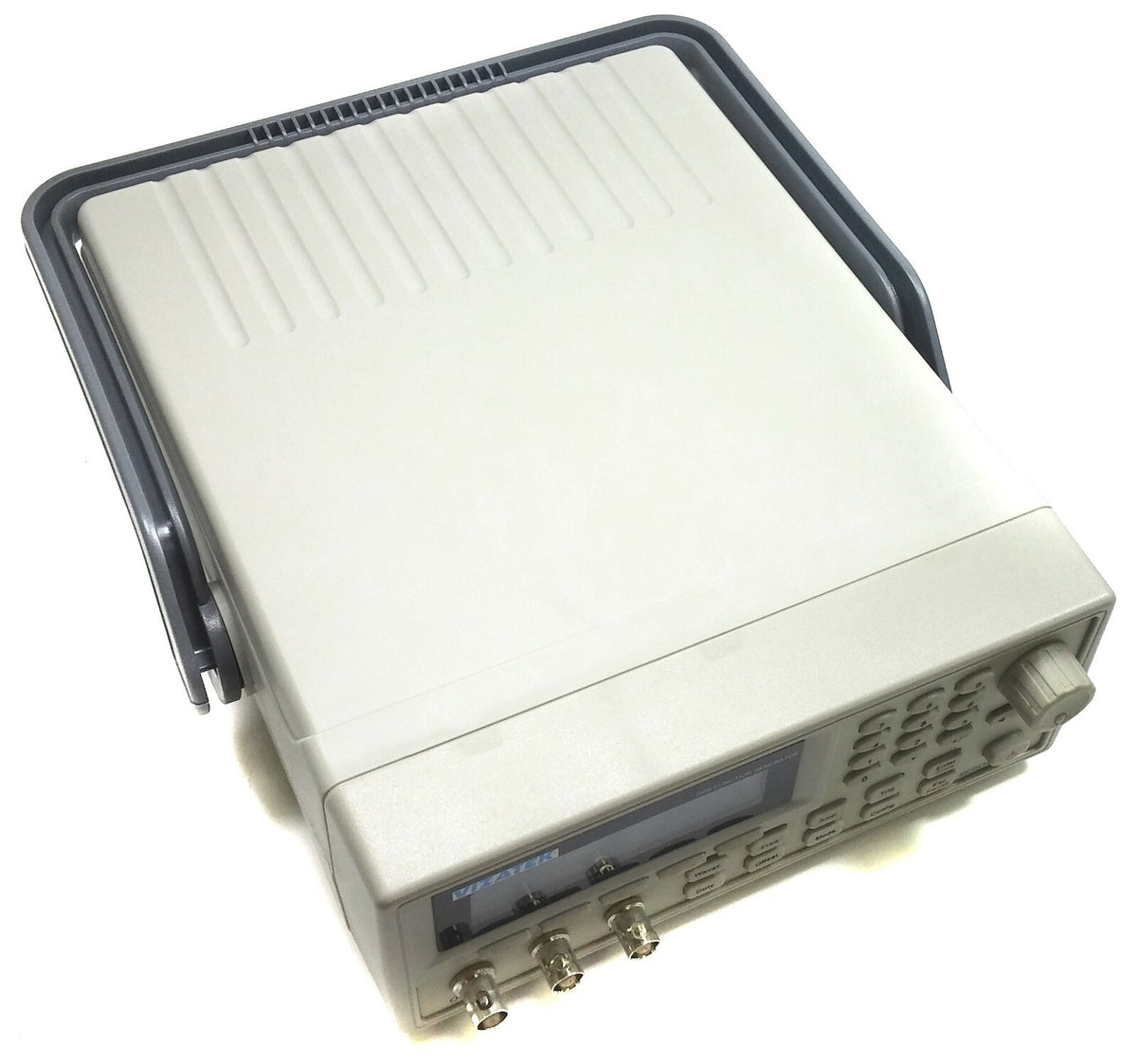

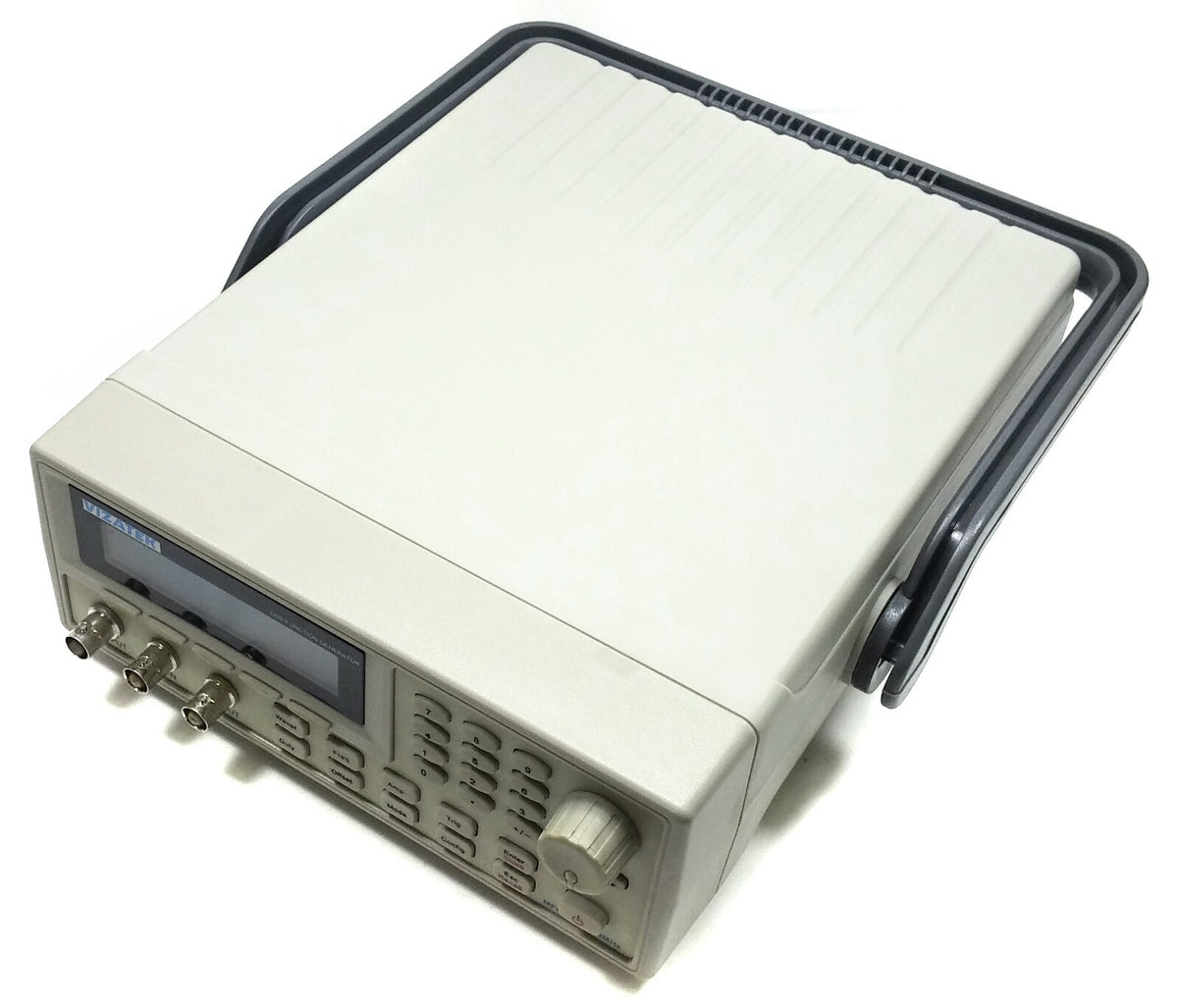

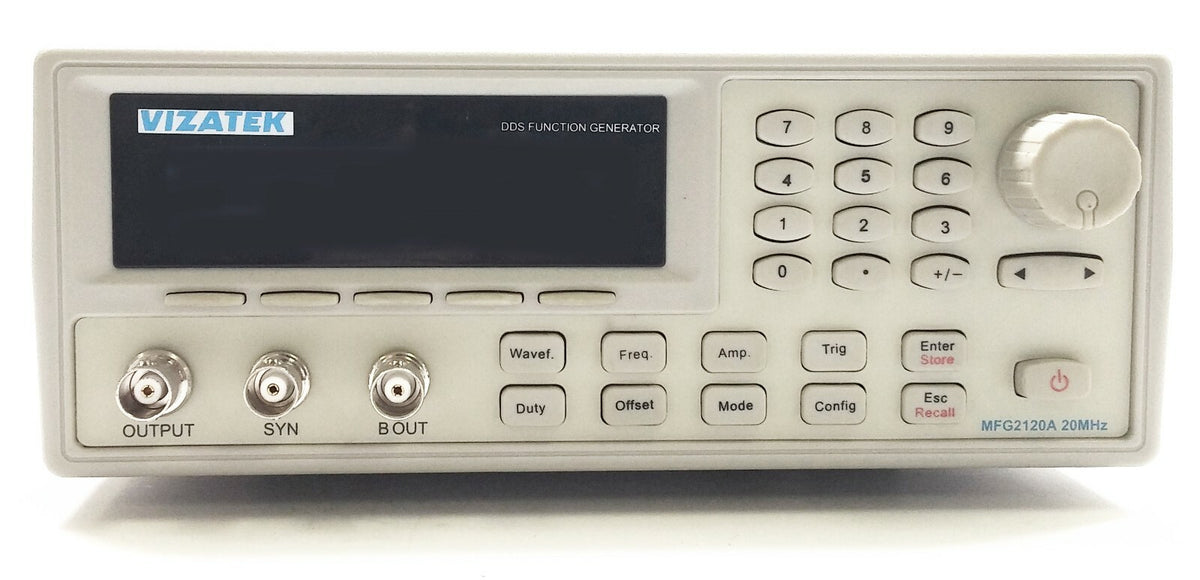

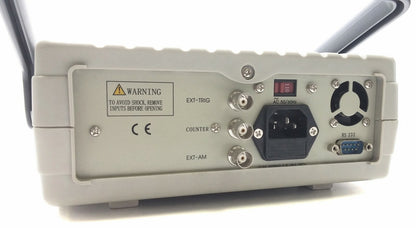

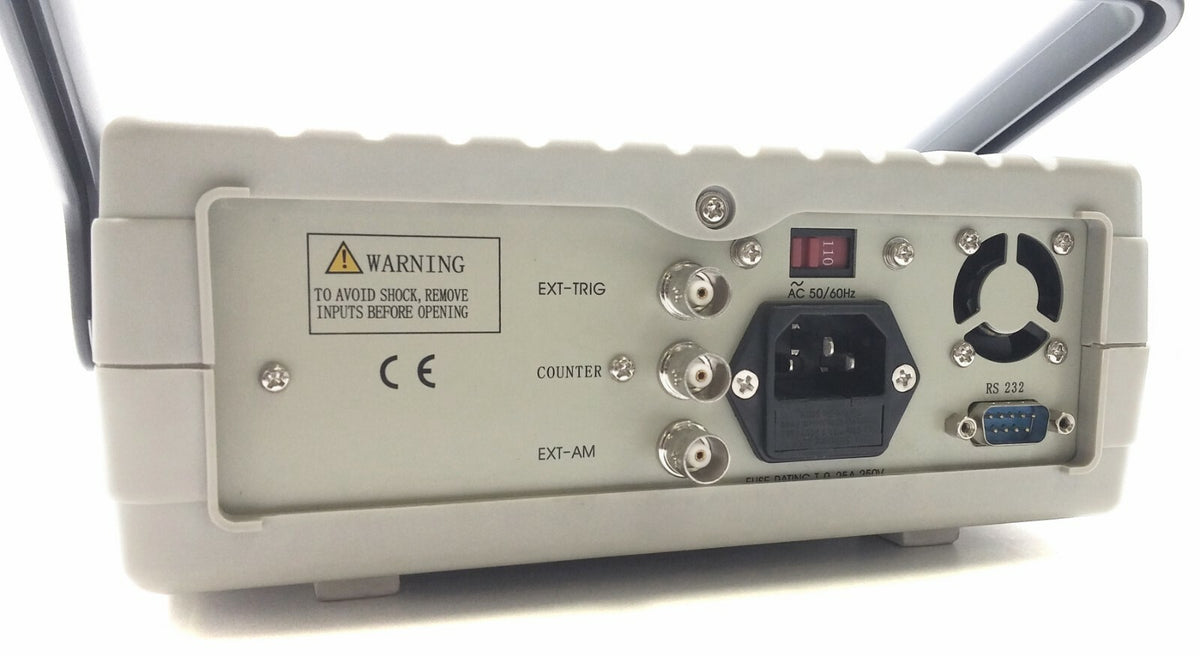

Vizatek 20MHZ Programmable Sweep Function Generator DDS with Arbitrary Waveform
Vizatek 20MHZ Programmable Sweep Function Generator DDS with Arbitrary Waveform
Regular price
$733.95 USD
Regular price
$921.90 USD
Sale price
$733.95 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DDS with Arbitrary Waveform, full featured, menu driven direct digital synthesis (DDS) generator. Waveform changes can be made manually or via RS-232 interface. 20MHz range (sine only / square up to 5MHz). Internal AM, FM, PSK, FSK modulation. Sweep range 0.1Hz to 20MHz
Features:
• Full featured, menu driven direct digital synthesis (DDS) generator. Waveform changes can be made manually or via RS-232 interface.
• 20MHz range (sine only / square up to 5MHz)
• Internal AM, FM, PSK, FSK modulation
• Sweep range 0.1Hz to 20MHz
Function waveform
• Sine, Square, Triangle, Positive Ramp, Negative Ramp, random noise, Sin(x)/x, Index up, Index down.
Waveform
• Memory length 8K (8192) points
• Vertical resolution 8 bits
• Sample rate 10Msa/s
• Off line protect memory four 8k waveforms
Frequency characters
• Sine 1mHz~fmax
• Square 1mHz~5MHz
• Others 1mHz~10kHz
• Maximum resolution 100uHz or 8 digit
• Long term stability 50ppm (0°C~40°C)
• Short term stability 1ppm (after power on and stable)
Accuracy:
• 0.05Hz (>100Hz)
• 100uHz(<100Hz)
Harmonic Distortions
• <20kHz -60dBc
• 20kHz~1MHz -50dBc
• 1MHz~10MHz -40dBc
• 10MHz~20MHz -30dBc
• (50 Ω load, 1Vpp output)
Signal Characters
• Square:
• Rise time and fall times <25ns
• Over shot <5%
• Asymmetry <2%+20ns
• Triangle, Ramp
• Linearity (1KHz) <1%
Output
Amplitude:
• (Open circuit) 2mVpp~20Vpp
(<20MHz)
2mVpp~6Vpp
(>20MHz)
• ( 50 Ω load ) 1mVpp~10Vpp
(<20MHz)
1mVpp~10Vpp
(>20MHz)
• Output impedance: 50 Ω
• Amplitude flatness 5%
• DC offset range -100%~100% pp
Pulse Signal
• Output terminal: ASK Sync out
• Level: TTL
• Width tw 10us• Width resolution 0.5us
• Period ts 10us
Sweep
• Sweep range: 0.1Hz~fmax
• Minimum step 0.1Hz
• Sweep time 10ms~40s
• Trigger mode: Internal, external, single
FSK,PSK
• Pulse width, period 10us~10s
• Trigger mode Internal, external, single
• Frequency 0.1Hz~fmax
• PSK phase differ -360 °C ~360 °C
• PSK carrier waveform Sine, Square
Internal amplitude modulation
• Carrier waveform Internal waveform
• Carrier frequency 1mHz~fmax
• Modulation waveform Internal waveform
• Modulation frequency 100mHz~20KHz
• Stability of modulation frequency 50ppm
• Depth of modulation 0%~120%
External amplitude modulation
• Input impendence 1kΩ
• Modulation Depth:
When output signal is 1Vpp sine waveform, ± 0.4Vpp modulation signal could achieve 100% modulation depth
Internal frequency modulation
• Carrier waveform Internal waveform
• Carrier frequency 0.1Hz~fmax
• Modulation waveform Internal waveform
• Modulation frequency 100mHz~10kHz
• Stability 50ppm
• Frequency shift range 0.1Hz~fmax
Internal phase modulation
• Carrier waveform Sine, Square
• Carrier frequency 0.1Hz~fmax
• Modulation waveform Internal waveform
• Modulation frequency 100mHz~10kHz
• Stability 50ppm
• Maximum phase shift 360 °C
